RADWIN2000UserManual Release2.8.30 14‐7

ConfiguringtheGSU

TheMainMenu

ThemainmenuisasubsetofthemainmenuapplicabletotheRADWIN2000.Noticethat

therearenoInstallationorConfigurationwizards. Suchconfigurationasisnecessaryis

carriedoutusingamodifiedversionofthestandardSiteConfiguration.

Similarly,theToolbarisasubsetofthatapplicabletotheRADWIN2000.

UsingSiteConfigurationfortheGSU

SiteConfiguration:System

HereistheopeningwindowforSiteConfiguration:

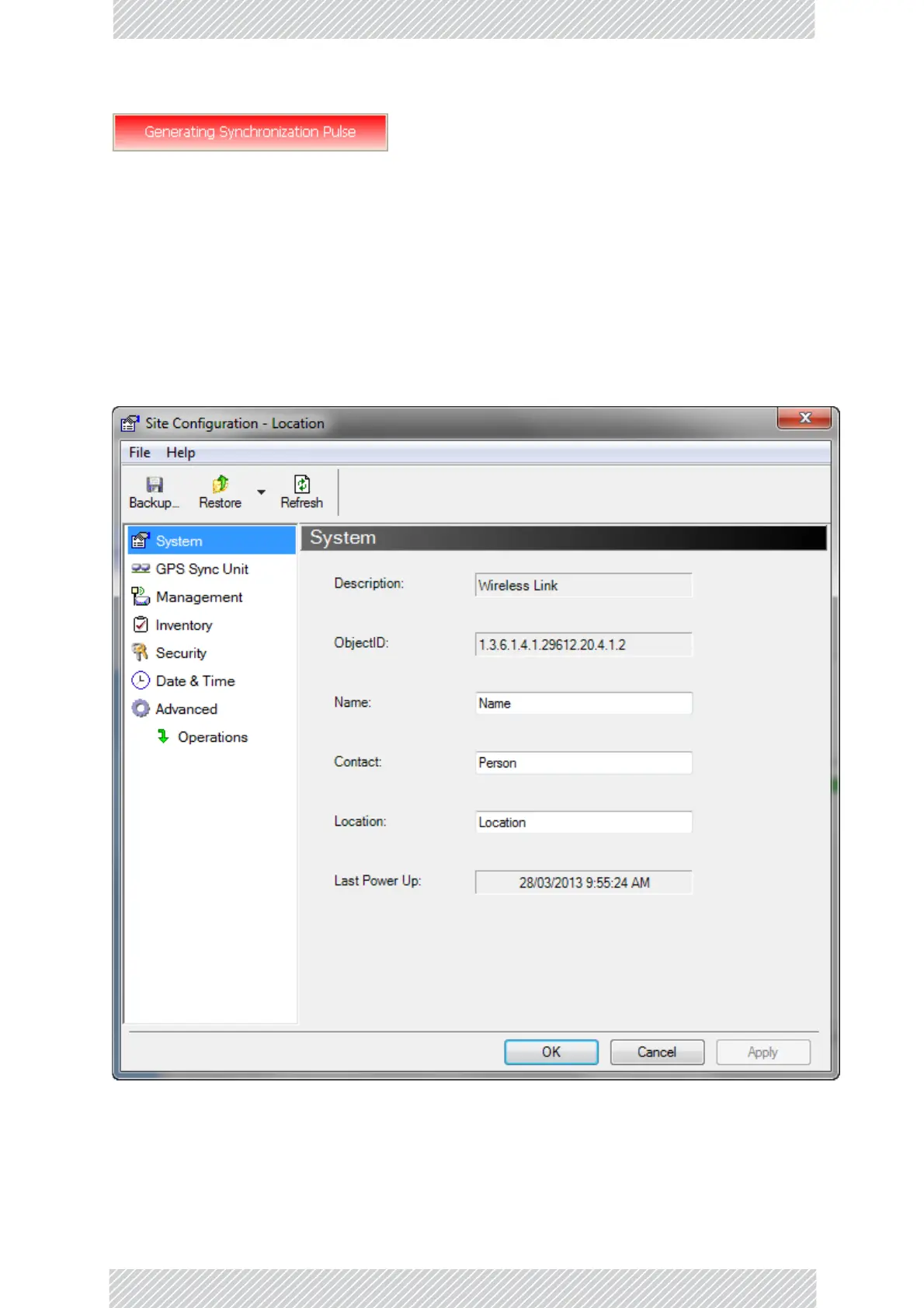

Figure14‐7:SiteConfiguration:System

SiteConfiguration:GPSSyncUnit

ThiswindowisthemainGSUconfigurationtool:
