ConfiguringtheGSU
essential thatyouusetheIPpre‐loadingmethod.ThedefaultIPaddressmaybeinaccessible
andyoumaynotusetheLocalConnectionmethodoveranetwork.
ConfiguringtheGSU
GettingStarted
ToconfiguretheGSU,youlogontoit,exactlyasinChapter5.
TheGSUMainWindow
HereisthemainwindowforGSU configuration:

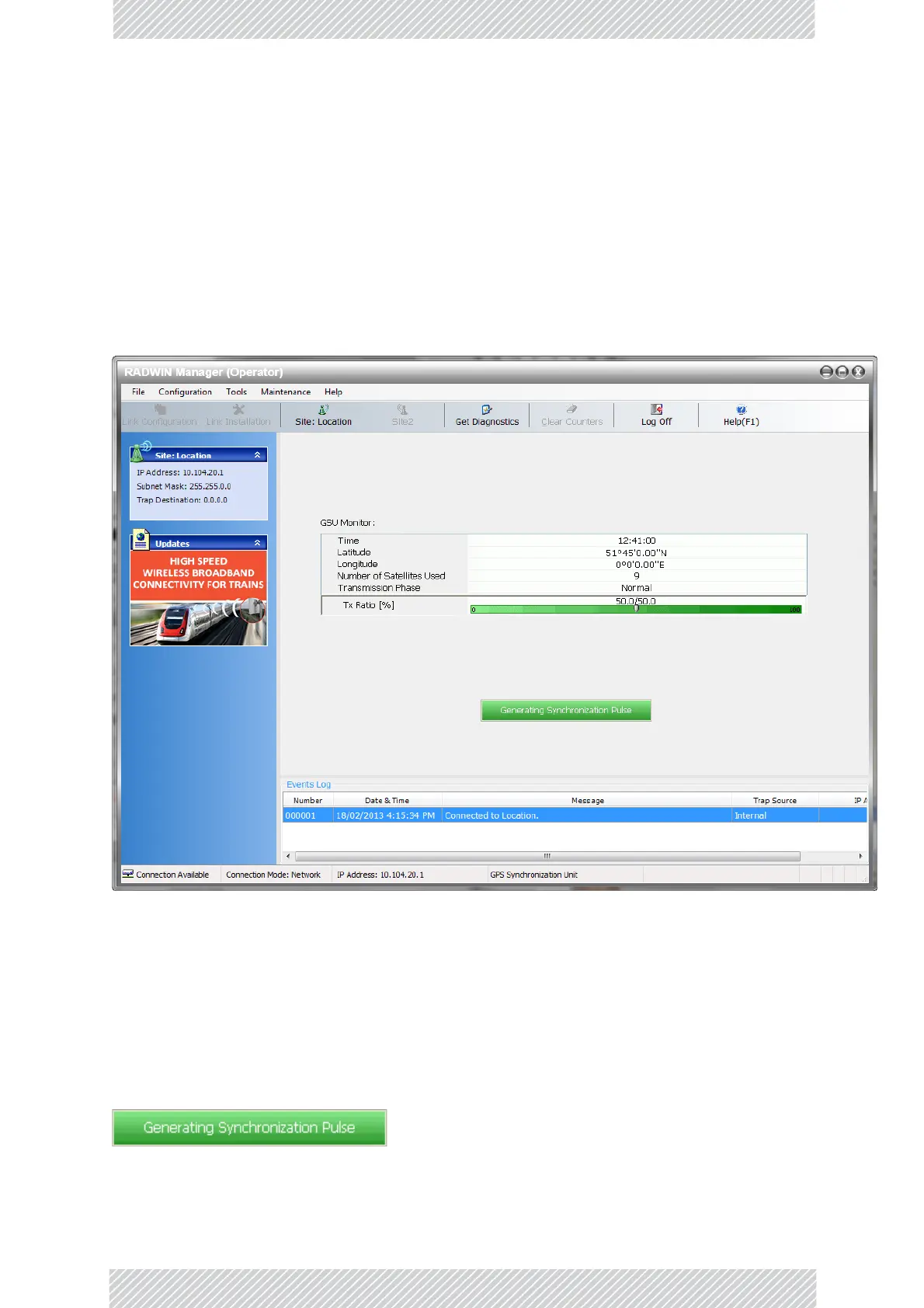

Figure14‐6:GSUMainwidowatstartup
ThetopfiveitemsintheGSUMonitorpanelaretakenfromasatellite.Thetransmission
PhasemaybeNormalasshownorShifted.Itpurpose,togetherwiththeTxRatiobar,willbe
explainedbelow.
TheStatusBox
Undernormaloperatingconditions,itwillbegreenasshown,indicatingthatitis
synchronizedwithasatellite.
Ifsatellitesynchronizationislost,thentheGSUwillfunctionasanindependentHSMandthe
statusboxwillchangecolor:
