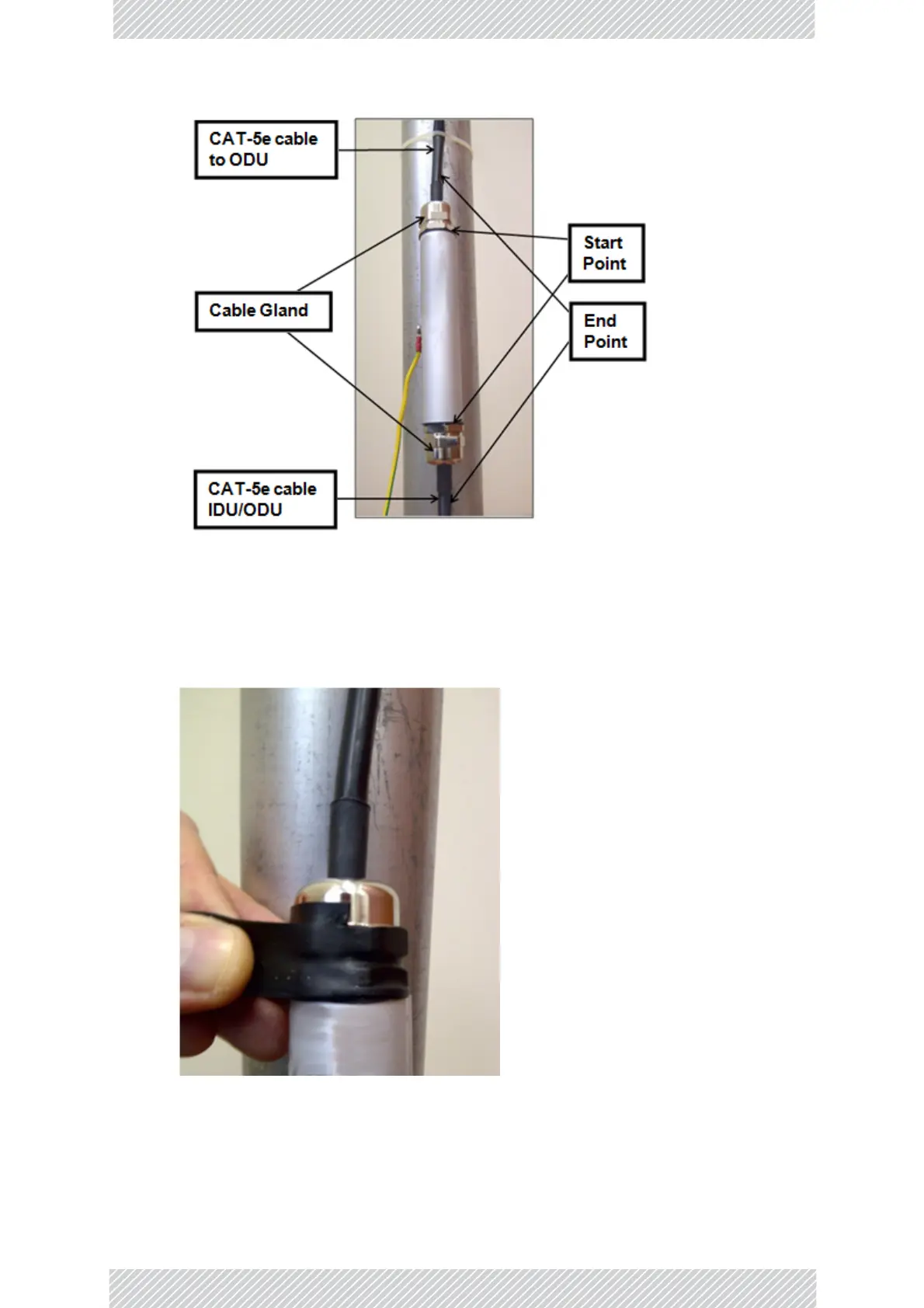

Figure4‐48:StartandEndpointsforprotective‐tapingtheunit
5.Wraptwolayersofanyscotchvinylplasticelectricaltype(e.gScotchSuper88Vinyl
PlasticTapefrom3M)toprotectthejointsasshowninFigure4‐49.Ensurethatthe
bottomofthecableglandandtheendoftheCAT‐5cablearecoveredwiththe
sealingsplicingtapeandwithvinylplastictape.
Figure4‐49:Protectingtheunitjointswithvinyltape
6.MounttheunitonthepoleusingthemountingringasshowninFigure4‐50.Ground
theunitusingtheGNDscrew.Forlightningprotection,repeatthesameprocedureto
installthesecondunitconnectedtotheIDU.
