RADWIN2000UserManual Release2.8.30 15‐8

InstallingaRADWINMHS

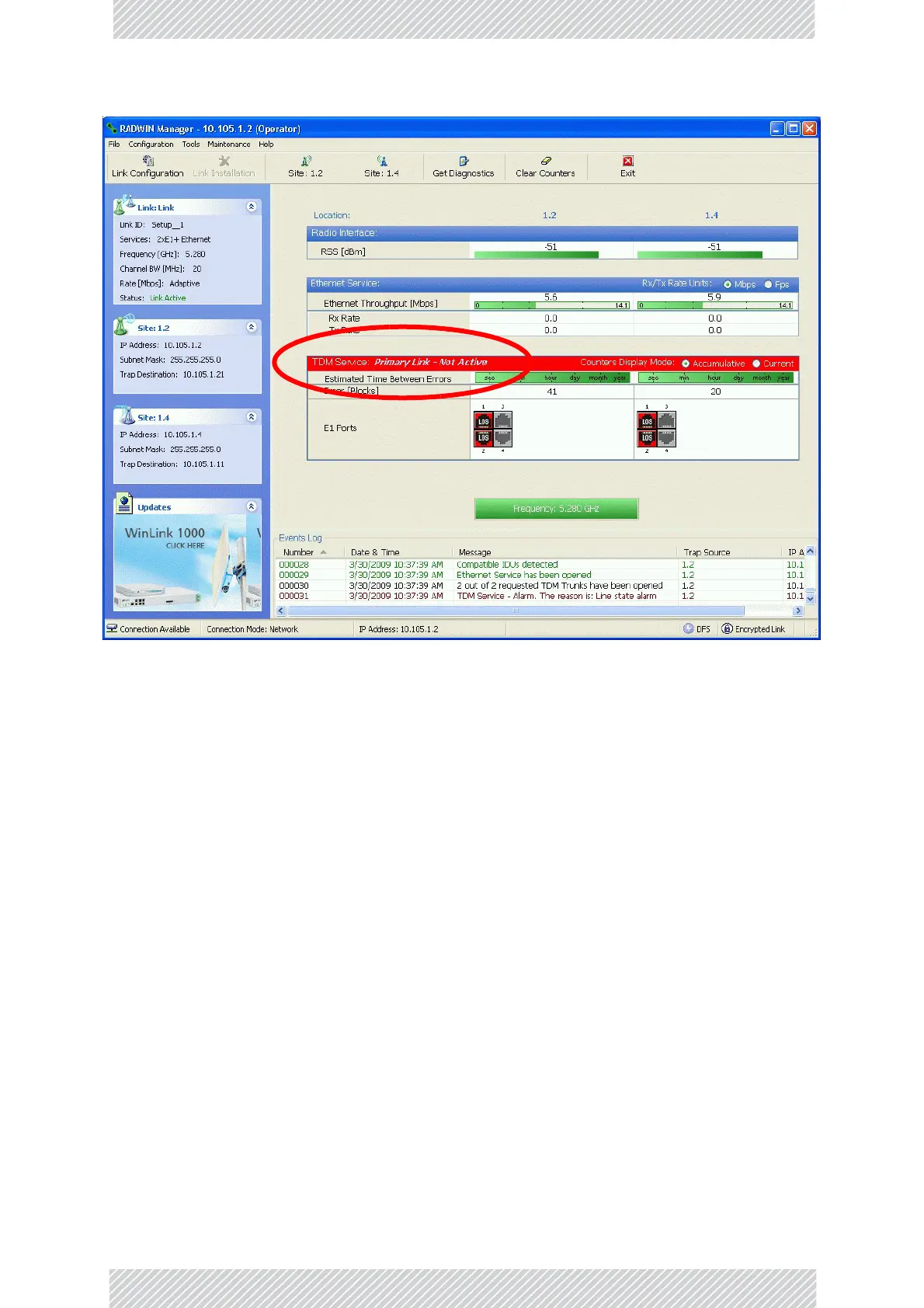

Figure15‐7:PrimarylinkafewsecondsbeforeregularNo‐Linkdisplay

ItwillthenreverttothestandardNo‐Link‐availablewindow.

OnthesecondarylinkManagerwindow,youwillseeawindowlikethis:
