RADWIN2000UserManual Release2.8.30 29‐11
UsingtheConfigurationWizard

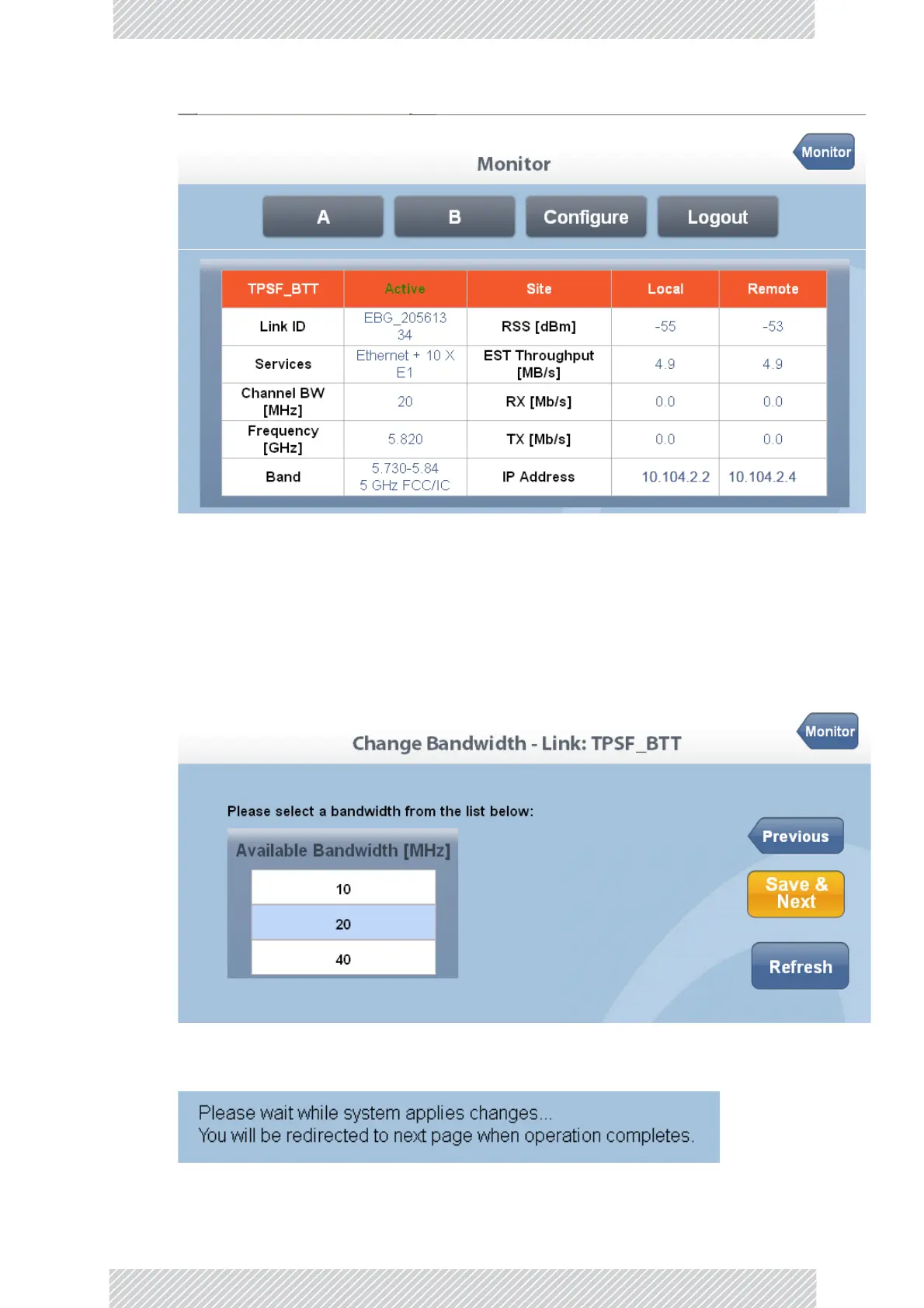

Themostobviousindicationthatsomethinghaschangedisthereducednumberof
availableE1channels(from16to10)reflectingthedropinlinkcapacityduetothe
antenna change.LessobviousistheEstimatedethernetThroughput,whichhas
droppedfrom17.5Mbpsto4.9Mbpsonbothsidesofthelink.
7.Forthepurposeofillustrationwerevertthelinktodualantennasatbotsitesandrun
throughtheConfigureWizardagain.Gettothelastpanel,ChangeBandwidth:
8.ChangetheChannelBandwidthto40Mhz.(Itissupportedbythelinkregulationin
use.)ClickSave&Next.Thefollowingadvisorymessageisdisplayed:
Afterafewmomentsyouareshownthemainwindow:
