RADWIN2000UserManual Release2.8.30 6‐30

UsingT1TDMPorts

includesoneRJ‐45balancedconnector(left)andtwounbalancesBNCcoaxialcon‐

nectors(right).

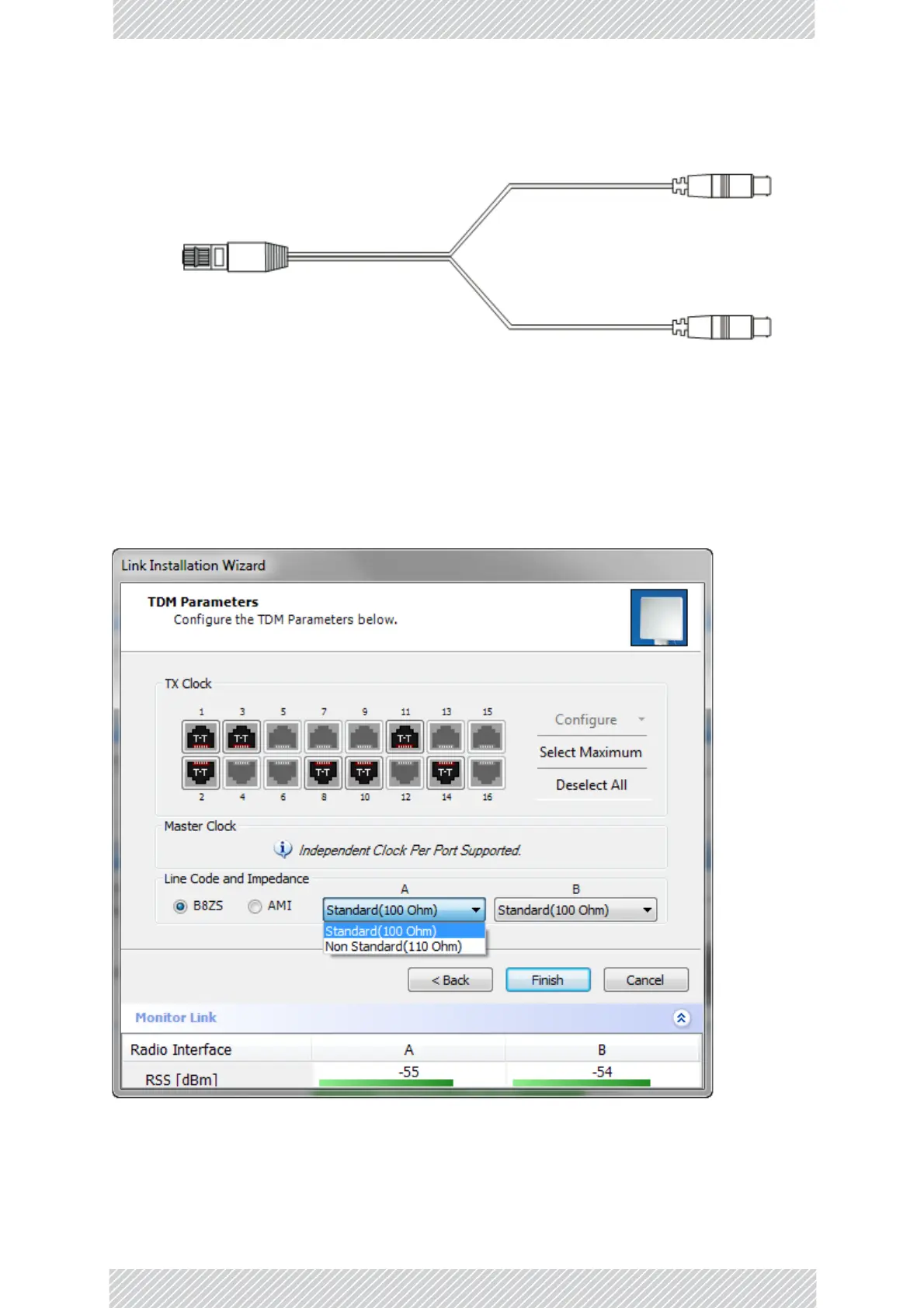

Figure6‐32:UnbalancedE1adaptercable(YSplitter)

SeeAppendixBforfurthertechnicaldetails.

5.ClickFinishtocompletethewizard.

UsingT1TDMPorts

IfyouareusingT1(orinternationalequivalents),theClockConfigurationisalittle different:

Figure6‐33:TDMT1ParametersConfiguration

HereyoushouldalsochosetheLineCodeandImpedance.Someregulatoryareas(suchas

Japan)requirea110Ohmlineimpedance.
