TheMonitorpane

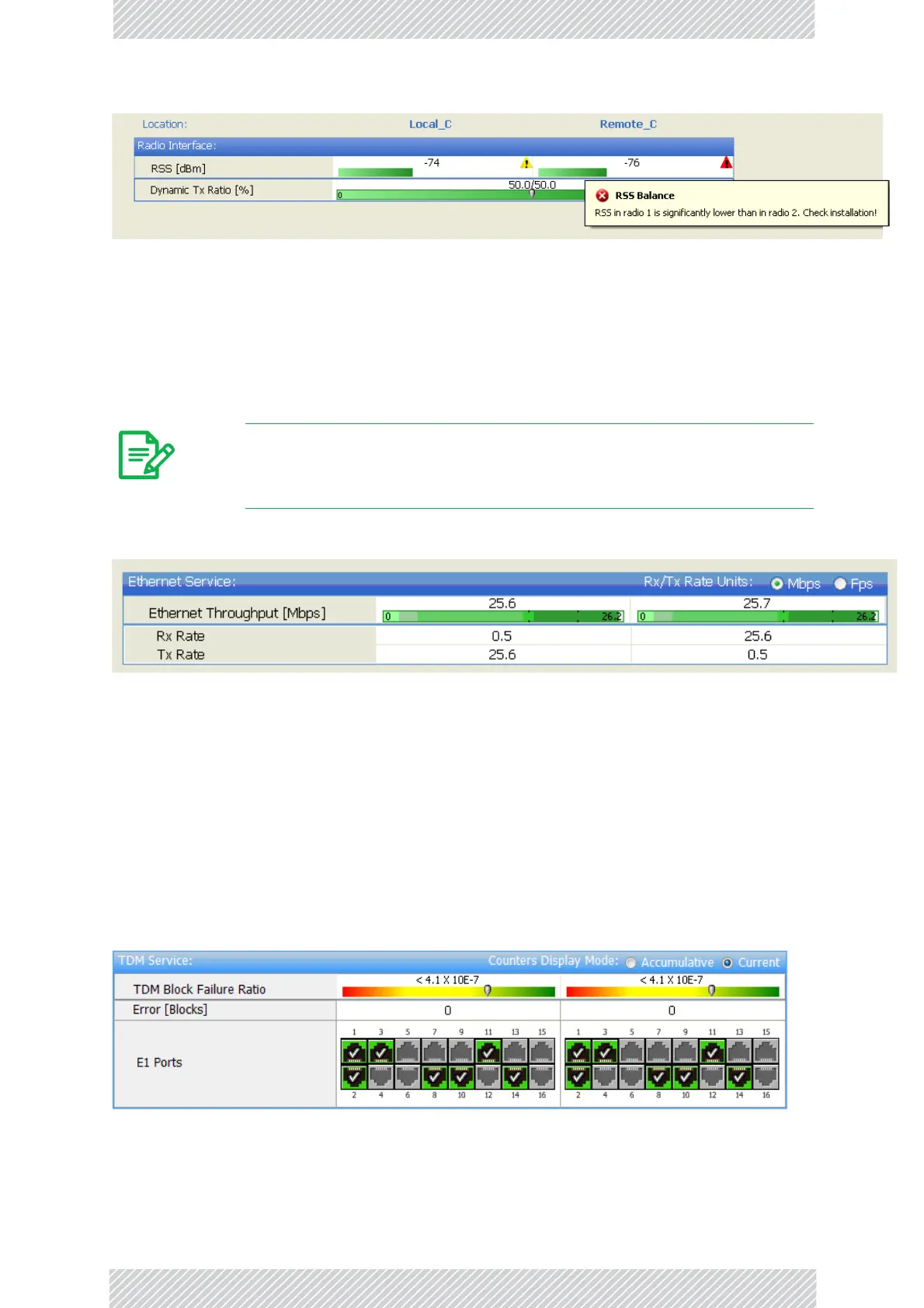

Again,noticethemouse‐overtool‐tipexplainingtheproblem.
Thelattertwocasesareusuallytheresultofaphysicalproblemattheindicatedsite.Probable
causesare:
• Interference
• Ante nnapolarityproblem
• ODUmalfunction
EthernetService
• EstimatedEthernetThroughput:Thenumbersarethecurrentcalculatedthroughputsat
eachsite.Thecoloredbars(withnumbers) indicatethemaximumpossiblethroughput
havingregardforairconditions.
• RxandTxRates:TheRxandTxratesarethereceiveandtransmitratesontheLANside
ofeachODU,nottheairside.Forabalancedlink,theRxandTxratesattheLANsideof
SiteAwillmatchtheTxandRxratesattheLANsideofSiteBrespectively.Inallcases,
TheLANsideRxrateshownwill be thesameastheairsideTxrateforeachindividual
ODU.
• ActualEthernettrafficreceivedandtransmittedratespersite,isinMbpsofFps,select‐
ableinthepaneltitlebar.
TDMServices(IDU‐CandIDU‐E)
• ThetitlebarenablesyoutoswitchbetweenAccumulativeandCurrentview.
• ImmediatelybelowthetitlebarisdisplayedtheTDMBlockFailureRatio.Itiszeroedby
theClearCountersbuttoninthetoolbar.
Note
TheDynamicTxRatiobaronlyappearsformodelRADWIN2000C
