RADWIN2000UserManual Release2.8.30 8‐7

Configuration

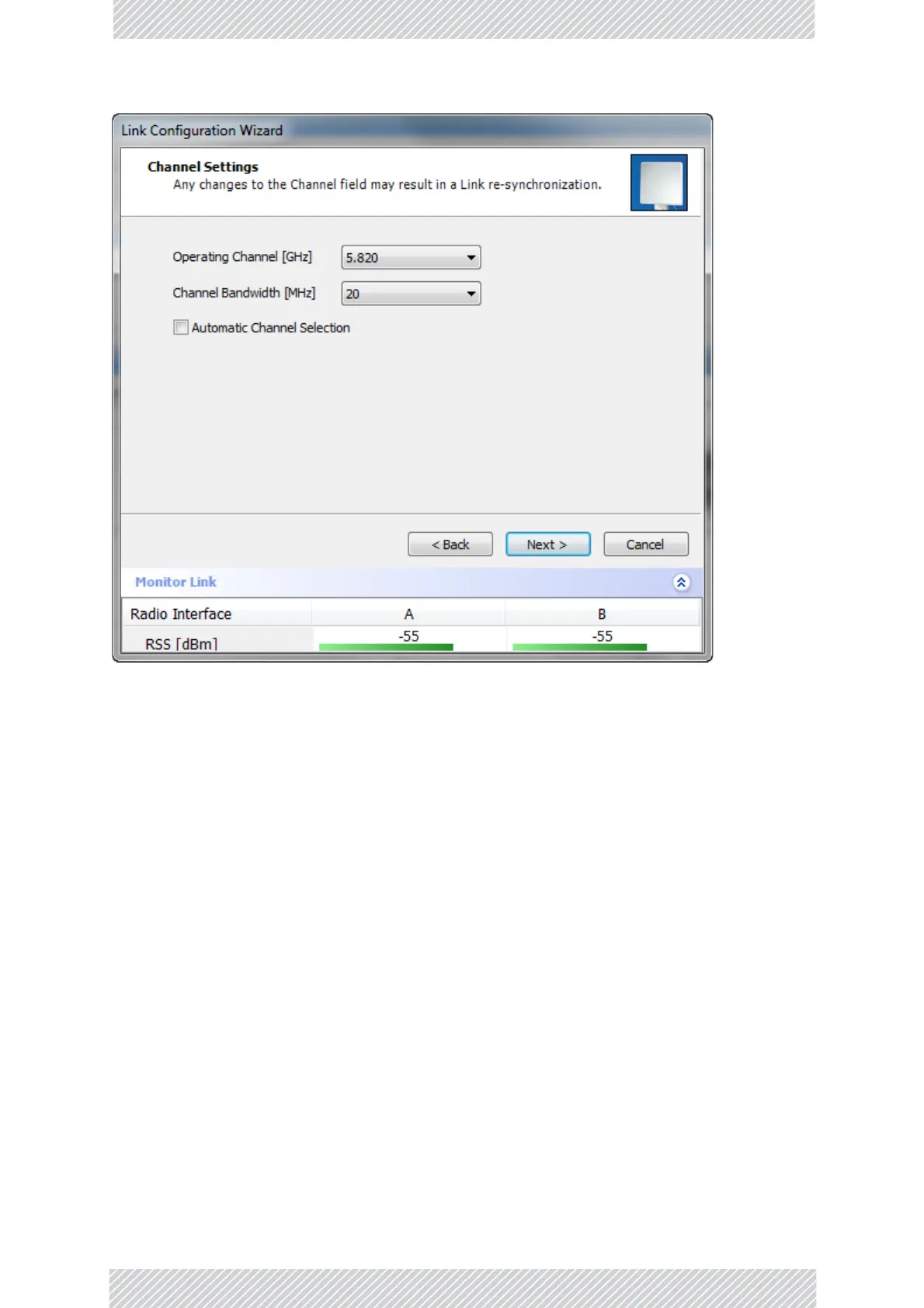

Figure8‐5:ChannelSettingswithoutautomaticchannelselection

IfyouclicktheOperatingChanneldrop‐downlist,thefollowingwindowappears:
