RADWIN2000UserManual Release2.8.30 13‐6
LinkConfigurationandHSSoE

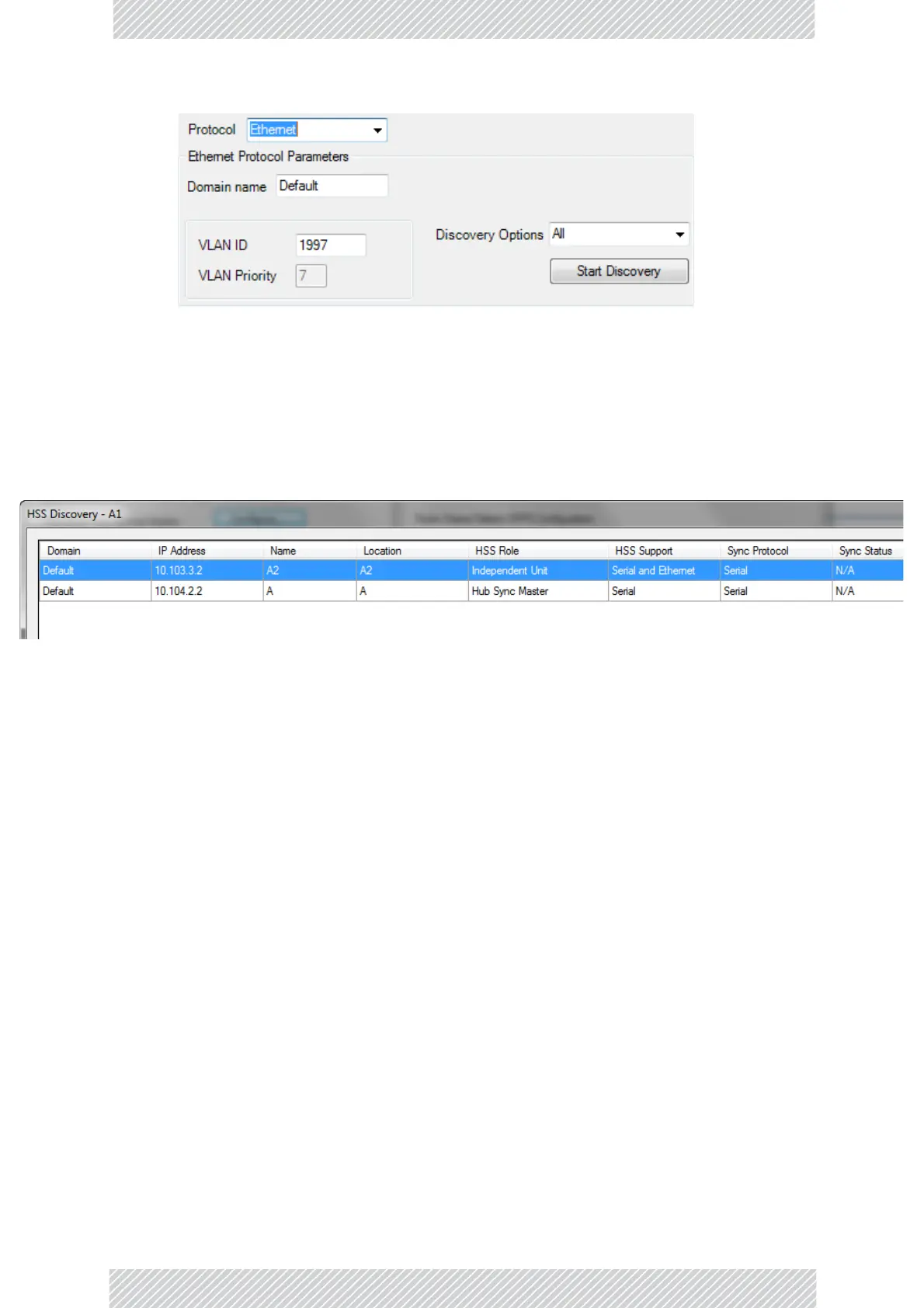

Figure13‐3:HSSConfigurationDomainname,VLANIDandDiscovery
6.Thedefault Domainnameis(notsurprisingly)Default.Wewi llchangedittoEHSS.
7.ChooseaVLANIDforthedomain.DonotusethisVLANIDfortrafficormanagement
VLAN.TheVLANpriorityissetto7(maximumpossible).Forourexample,wewill
leavethedefaultVLANIDasis.
8.ClicktheStartDiscoverybutton.HereisanextractoftheDiscoverydisplay:
ItshowsotherHSMs(ofeithertype)onthesamesubnetandanyothercollocatable
ODUsconfiguredornot.
9.AtthispointyoucanclickOKtoexittheHSSwindowandcontinuewithregular
configuration.HereistheHSSwindowdisplayafterconfiguration:
