VLANTaggingforEthernetService:Configuration

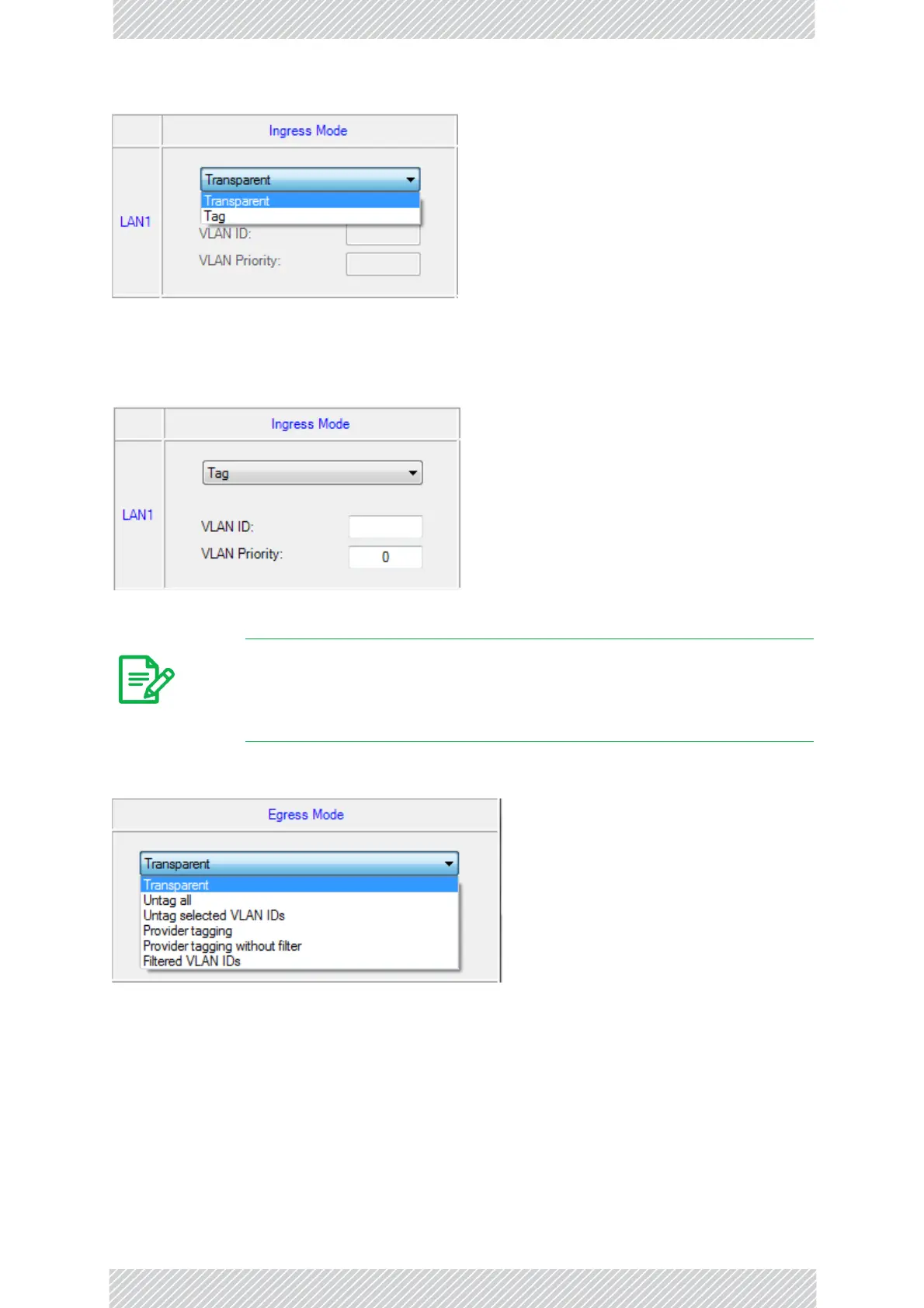

Figure17‐4:VLAN:Ingressmodes
ThetwochoicescorrespondrespectivelytothetworowsofTable17‐1.ChoosingTagcauses
theVLANIDandVLANPriorityfieldstobecomeavailable:
Figure17‐5:VLAN:Ingressmode‐settingVLANIDandPriority
ThechoicesforEgressModeare‐
Figure17‐6:VLAN:Egressmodes
Thefivenon‐transparentchoicescorrespondrespectivelytothefiverowsofTable17‐2inthe
order,row1,2,4,5,3.
Thefirsttwochoices,TransparentandUntagallrequirenofurtheraction.
UntagselectedVIDscausestheeightVLANIDfieldstobecomeavailable:
Note
Throughoutthischapter,allVLANIDsmustbebetween2and4094,
inclusive.AllVLANprioritiesmustbebetween0and6,inclusive.Thevalues
enteredarerange‐checked.Ifforexample,youenteraVLANIDof4095,
then4094willbereflectedback.
