RADWIN2000UserManual Release2.8.30 23‐14

UsingheRADWINManagertosetupa3.XorBRSLink

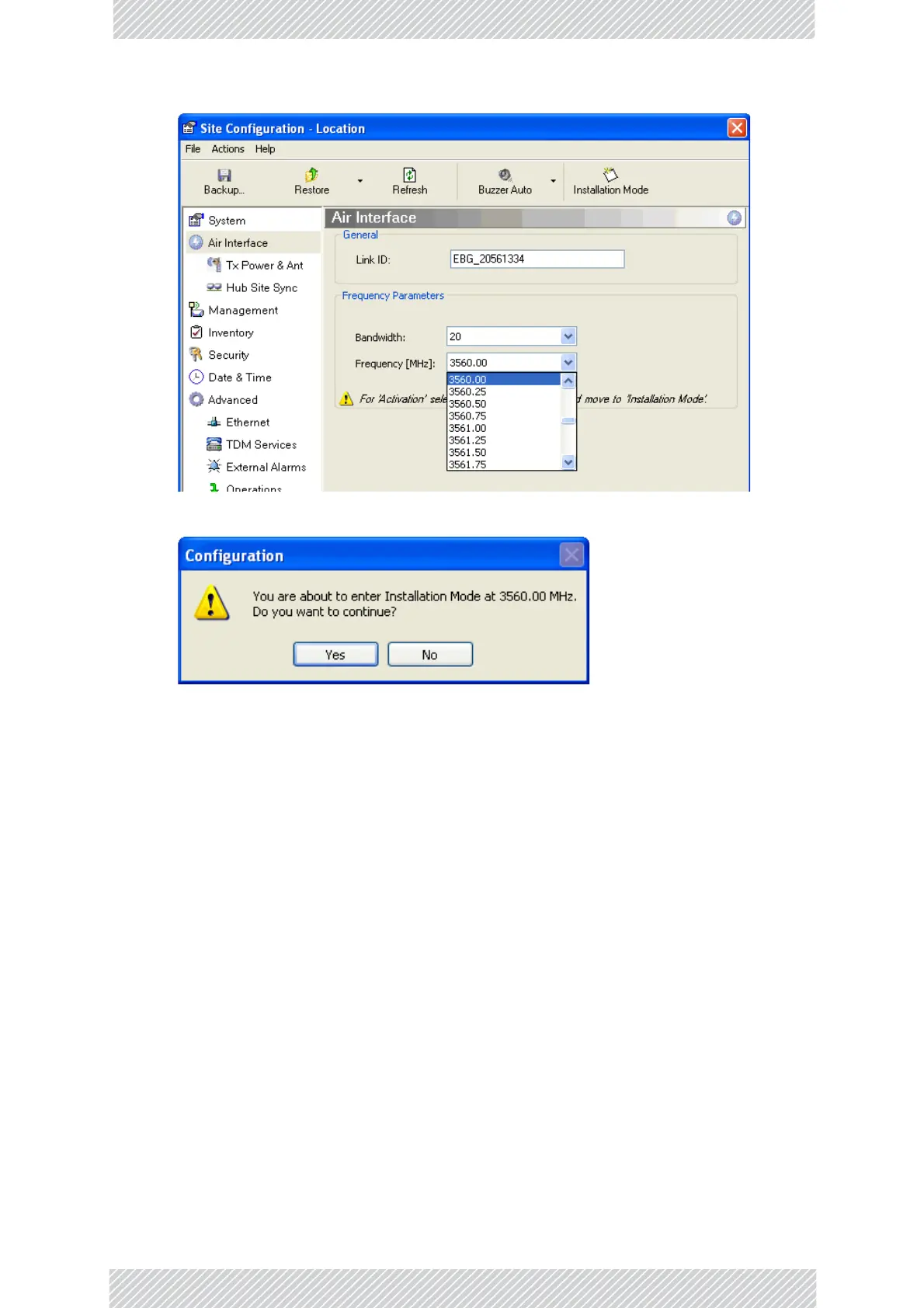

9.EnterInstallationModeandconfirmyourchoice:

10.Afterafewmomentsofprocessing,youmayclickOKtodismisstheSite

Configurationwindow.TheODUisnowinnormalInstallationMode:
