Ricoh MT-C1 - Page 146

COPY CONNECTOR KITS 15 February 2006
1-124
12. Perform Steps 12 and 13 below if the distance between the two machines is
more than 4.5m.
13. Use the Hubs [A] to connect the interface cables.
NOTE: When connected in this way, the maximum length possible is 13.5m (3
interface cables).

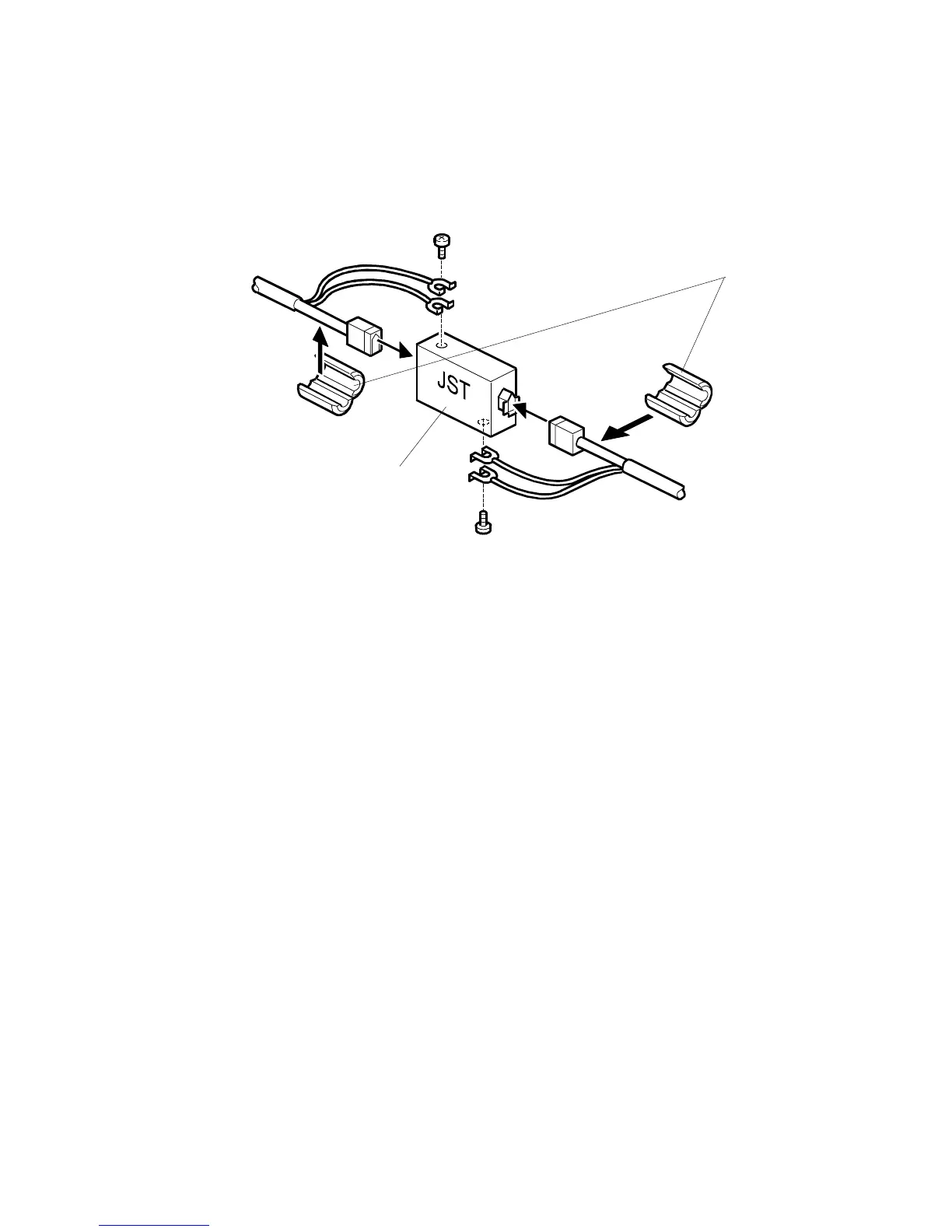

14. Attach the ferrite cores [B] as shown.
B110I205.WMF
[A]
[B]
