Ricoh MT-C1 User Manual

15 February 2006 PAPER FEED
3-103
Replacement
Adjustment

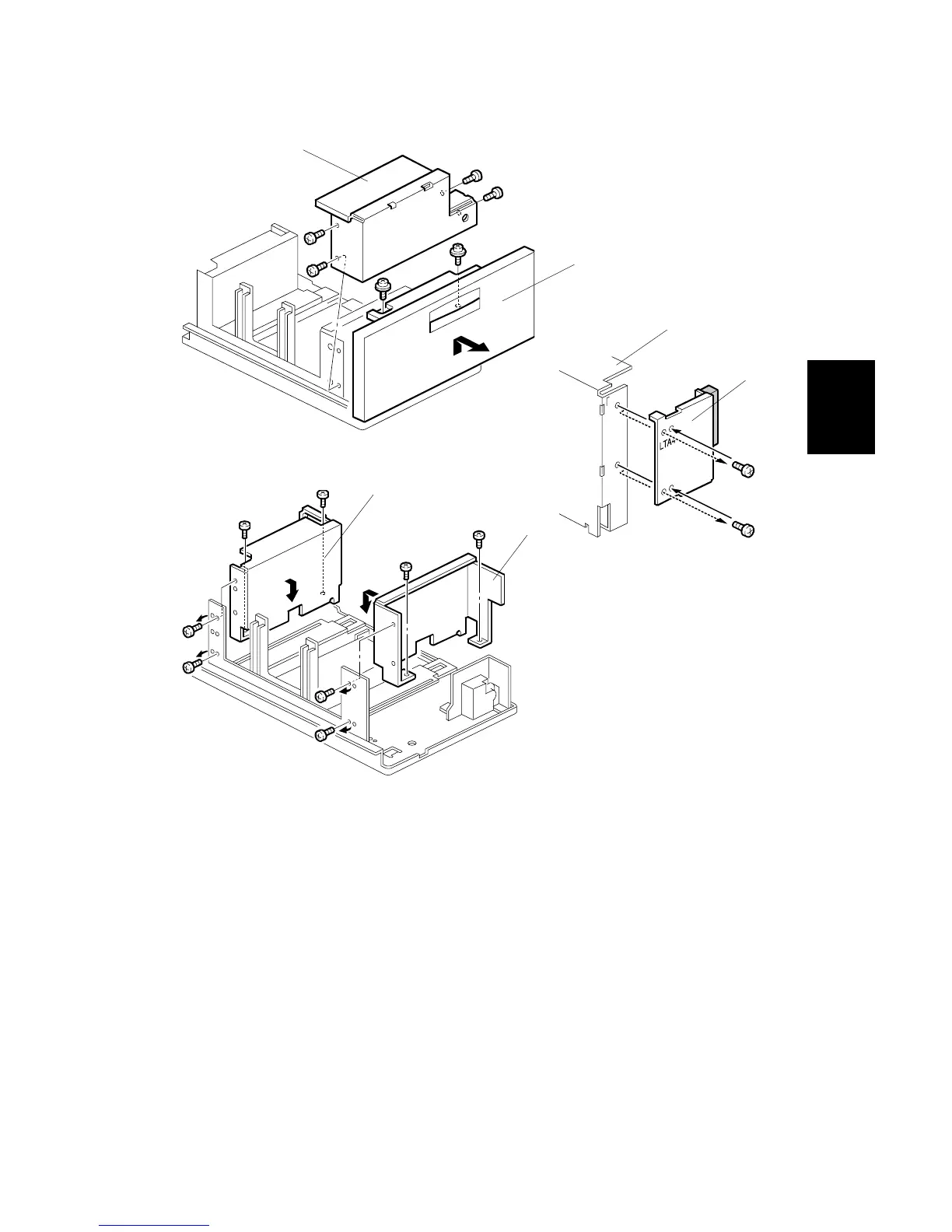

6. Remove the tray cover [A] ( x 2).
7. Remove the DC motor cover [B] ( x 4).
8. Remove the rear side fence [C] ( x 4) and re-position the rear cover [D] ( x
2).
9. Re-position the side fences [C] [E] ( x 4).
A4: Outer slot position
LT: Inner slot position
10. Re-install the DC motor cover and the tray cover.
B246R1063.WMF
B246R1064.WMF
B246R1065.WMF
[B]
[A]
[C]
[E]
[C]
[D]
