Replacement
Adjustment

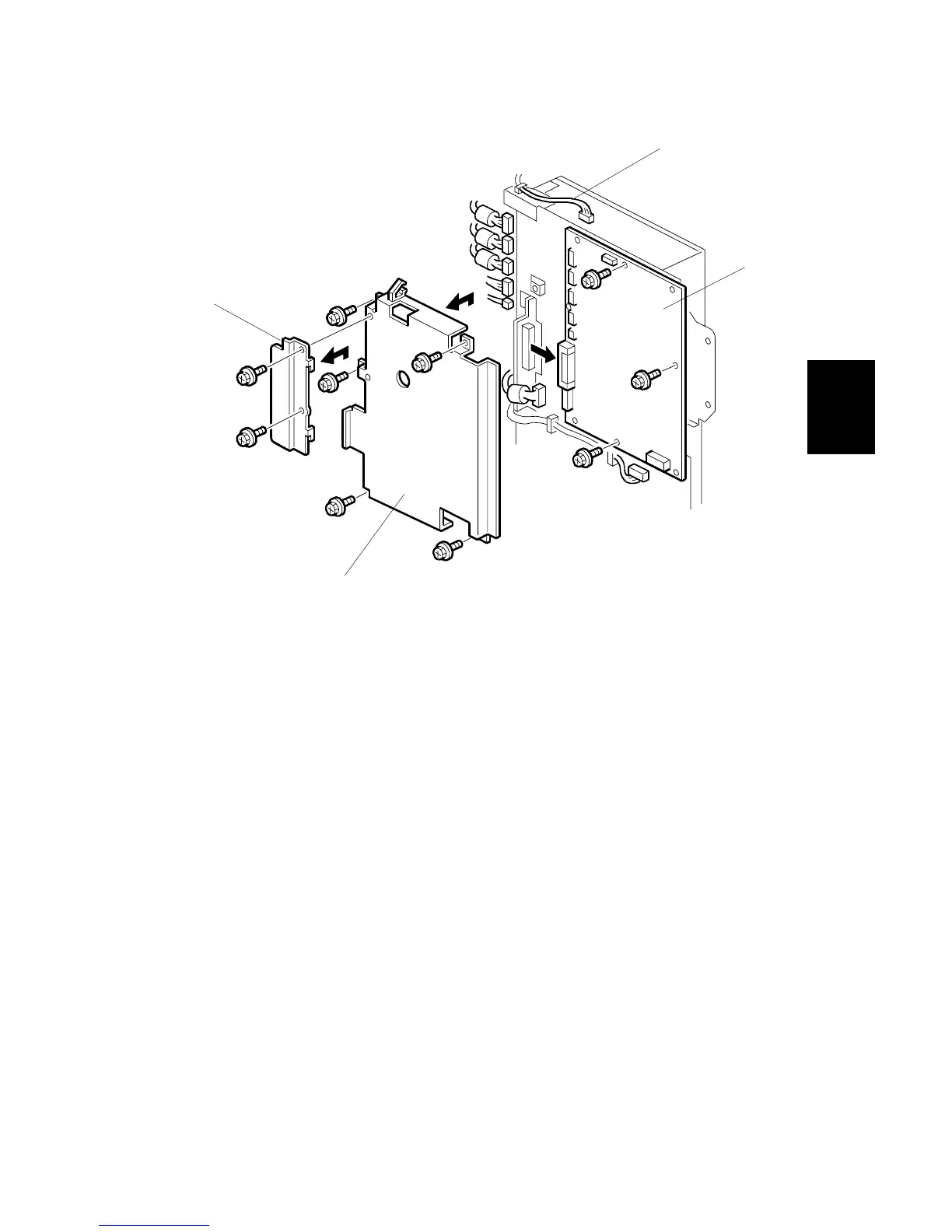

[A]: Connector cover ( x 2)
[B]: Harness (= x 1,  x 1)
[C]: IPU cover ( x 5)
[D]: IPU board ( x 3,  x 8)
NOTE: Record the positions of the IPU board screws. Attach them at the same
positions when you install the board again.
B246R1100.WMF
[A]
[B]
[C]
[D]
