15 February 2006 LG/B4 FEEDER KIT (B474)
1-33
Installation

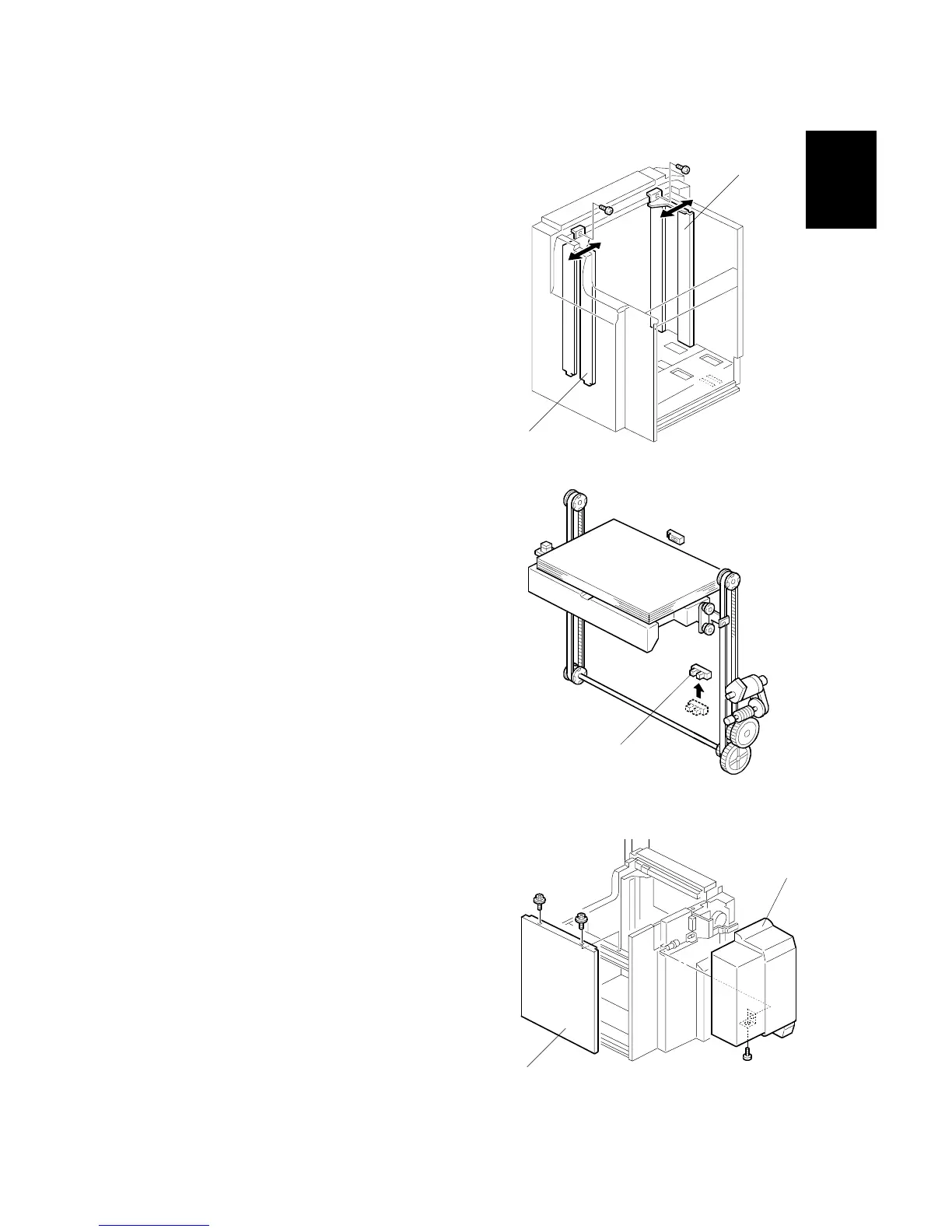

13. Move the front side fence [A] to the LG
position and fasten (" x 1).
14. Move the rear side fence [B] to the LG
position and fasten (" x 1).
15. Change the position of the lower limit
sensor [C] (" x 1).
16. Attach the harness (not shown) to the
back of the plate and secure the
sensor connector wire.
17. Attach the LCT cover [D] provided with
the kit (" x 1).
18. Re-attach the right cover [E] (" x 2).
19. Connect the LCT to the machine (☛
0).
20. Switch the machine on, enter the SP
mode, then use SP5959 005 (Paper
Size – Tray 4 (LCT) to select the new
paper size. For details, see SP5959 in
section “5. Service Tables”.
B474I555.WMF
B474I508.WMF
B474I506.WMF
[A]
[B]
[C]
[D]
[E]
To Next Page
