3000-SHEET FINISHERS (B468/B469/B674) 15 February 2006
1-38
3. Peel the cover tape from the sponge cushion [A], then install it in the upper slot.
NOTE: If you will also install the cover interposer tray, do not attach the
cushion here. Attach it to the cover interposer tray. The cover
interposer tray must be installed on the finisher before you attach the
finisher and tray to the main machine.
4. Align the brackets [B] with the slots in the finisher.
5. Slowly and carefully, to avoid bending the entrance guide plates of the finisher,
push the finisher against the side of the machine until the brackets enter the
slots.
6. Using the screw [C] removed above, secure the lock lever [D] (" x 1).
7. Connect the plug [E] of the finisher power cord to the connector on the
machine.
!CAUTION
Always move the finisher slowly to avoid bending the entrance guide
plates. Bent guide plates could interfere with paper transport from the
machine to the finisher.

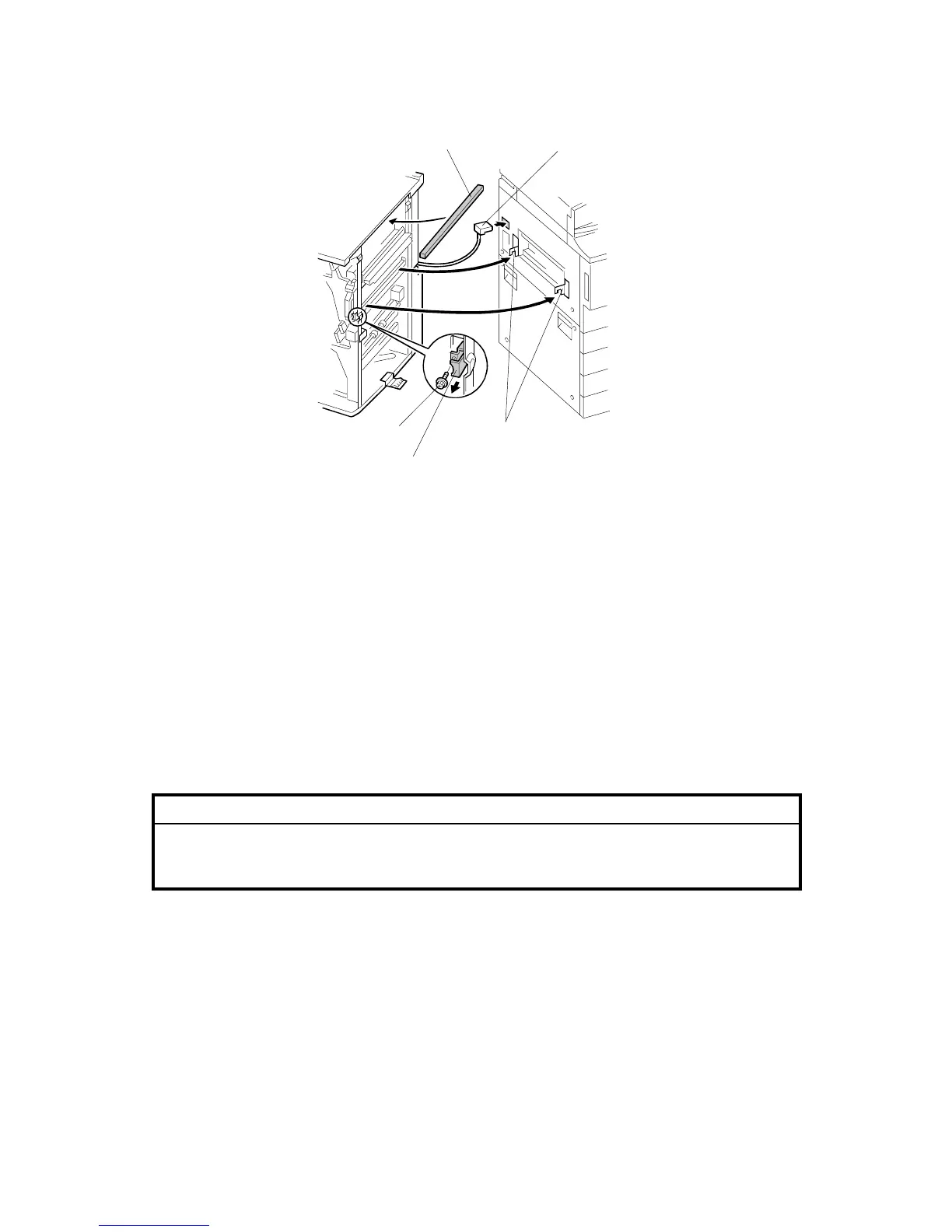

B468I004.WMF
