15 February 2006 3000-SHEET FINISHERS (B468/B469/B674)
1-39
Installation
B468 (B064 Series)
B674 (B140 Series)

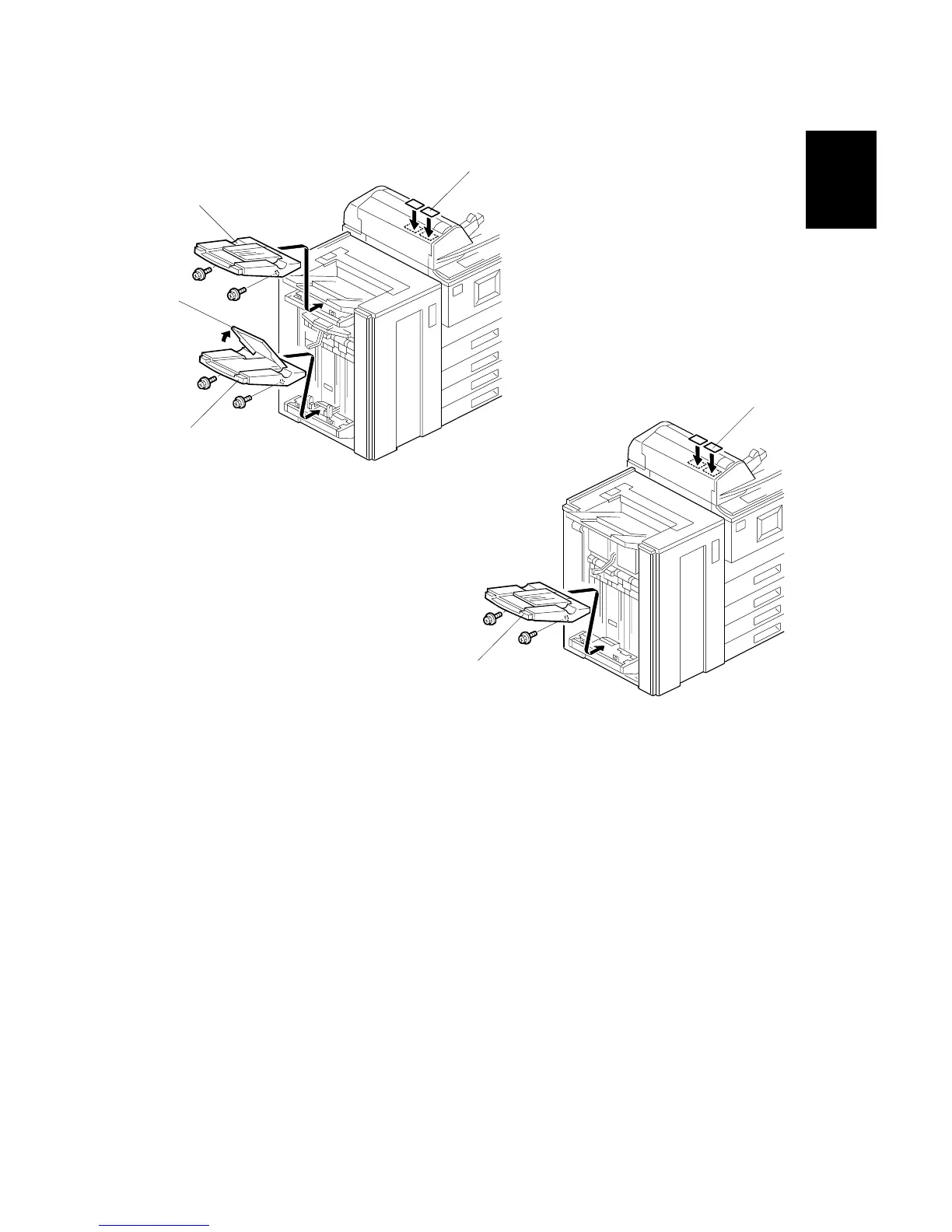

1. Install the lower output tray [A] (" x 2).
NOTE: Only the lower output tray has a movable support tray [B].
2. Install the upper output tray [C] (" x 2).
3. Attach the staple position decal [D] to the ADF.
B469 (B064 Series/B140 Series)
1. Install the output tray [E] (" x 2).
2. Attach the staple position decal [F].
B468I005.WMF
B469I005.WMF
B468/B674
[A]
[B]
[C]
[D]
B469
[E]
[F]
