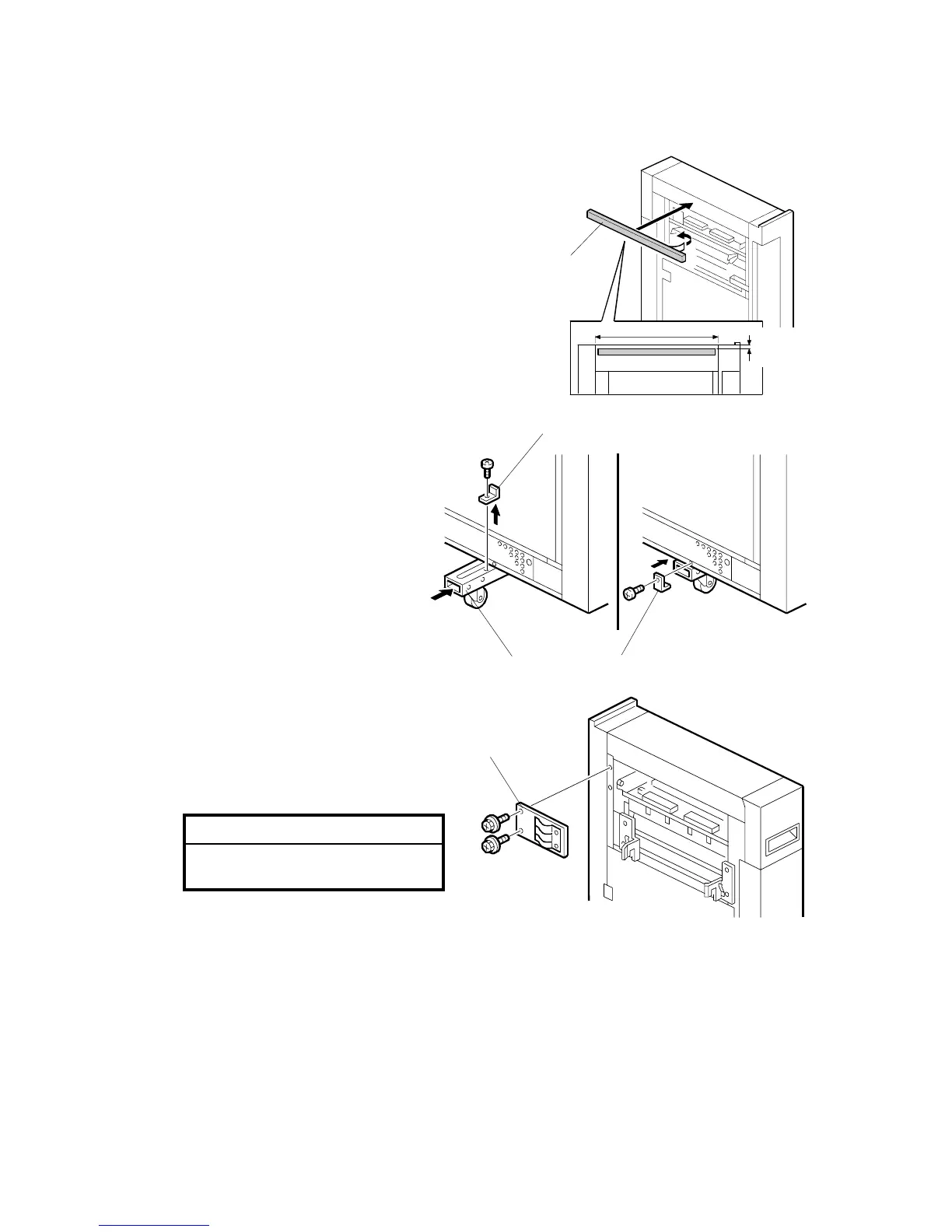

Z-FOLDING UNIT (B660) 15 February 2006
1-70
1. Remove the tape from the sponge [A] and
attach it to the Z-folding unit.
2. At the left bottom edge of
the Z-folding unit, remove
the bracket [B] (" x 1).
3. Push in the support [C].
4. Reattach the bracket [B] ("
x 1).
5. If the cover interposer tray is
attached to the finisher, attach the
ground plate [D] to the Z-folding
unit (" x 2)
!CAUTION
With the support retracted,
the Z-folding unit tips easily!
B660I005.WMF
B660I006.WMF
B660I102.WMF
[A]
5 mm
[C]
[B]
[B]
[D]
To Next Page
