SATO CT4-LX User Manual

Startup Guide Flow
84
7.

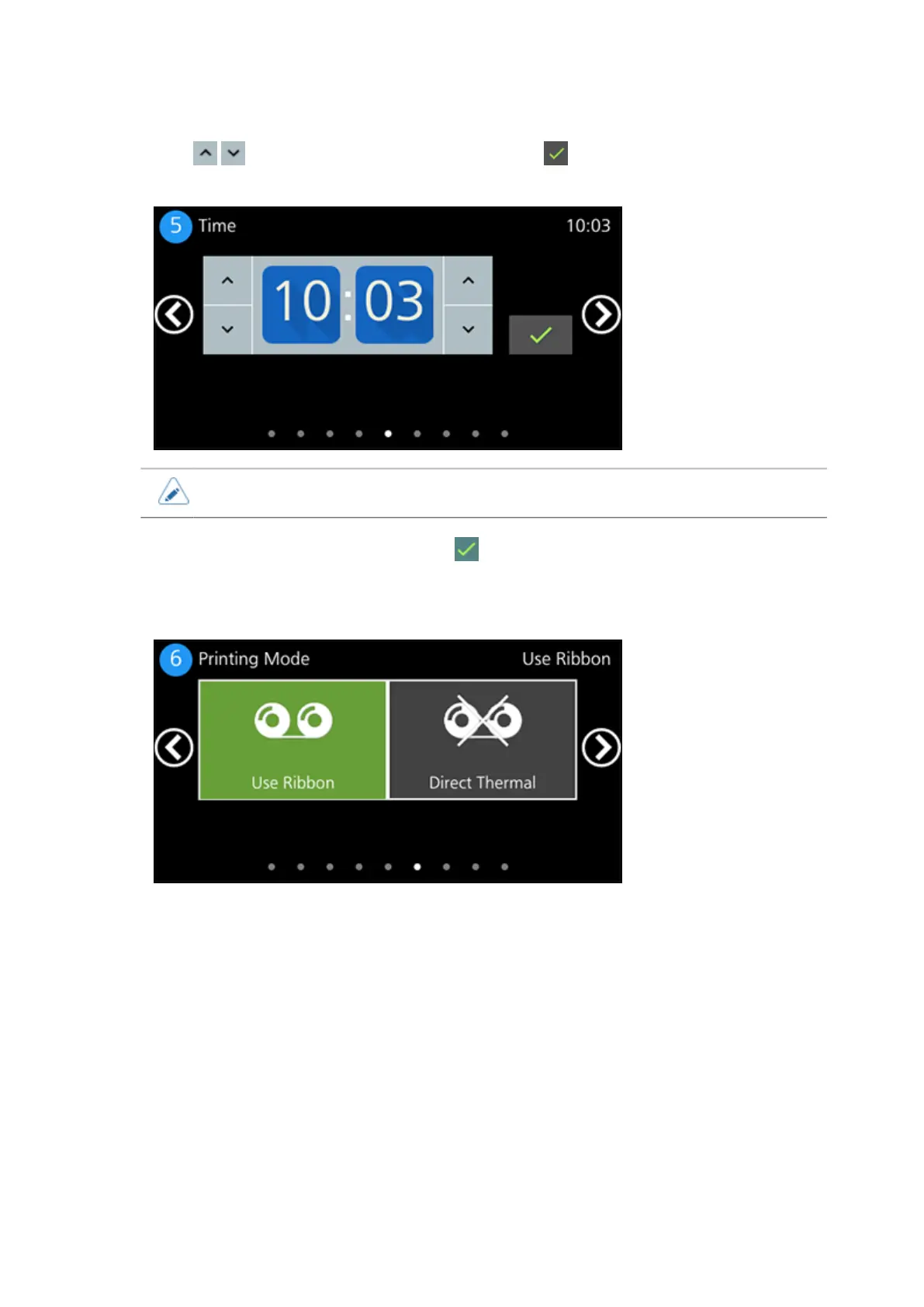

Tap / to set the current time, and then tap .
(Appears if you have disabled the NTP function and installed the optional RTC kit.)
• The time is set in the 24-hour format.
When the confirmation screen appears, tap to confirm the settings.
8. Tap the print method to use.
(Available only for the combined direct thermal/thermal transfer model.)
[Use Ribbon]
Prints using a ribbon.
[Direct Thermal]
Prints using direct thermal media.

SATO CT4-LX Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi
Max Print Width	4.09 inches (104 mm)
Media Type	Roll, Fan-fold
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Ribbon Width	0.98 inches (25 mm) to 4.09 inches (104 mm)
Ribbon Length	984 feet
Connectivity	USB, Ethernet, Bluetooth
Supported Barcode Types	PDF417, QR Code
Power Requirements	100-240 VAC, 50/60 Hz
