Appendix 2: Mains Connector Strain Relief
For anchoring connectors without a mechanical lock (e.g. IEC mains connec-

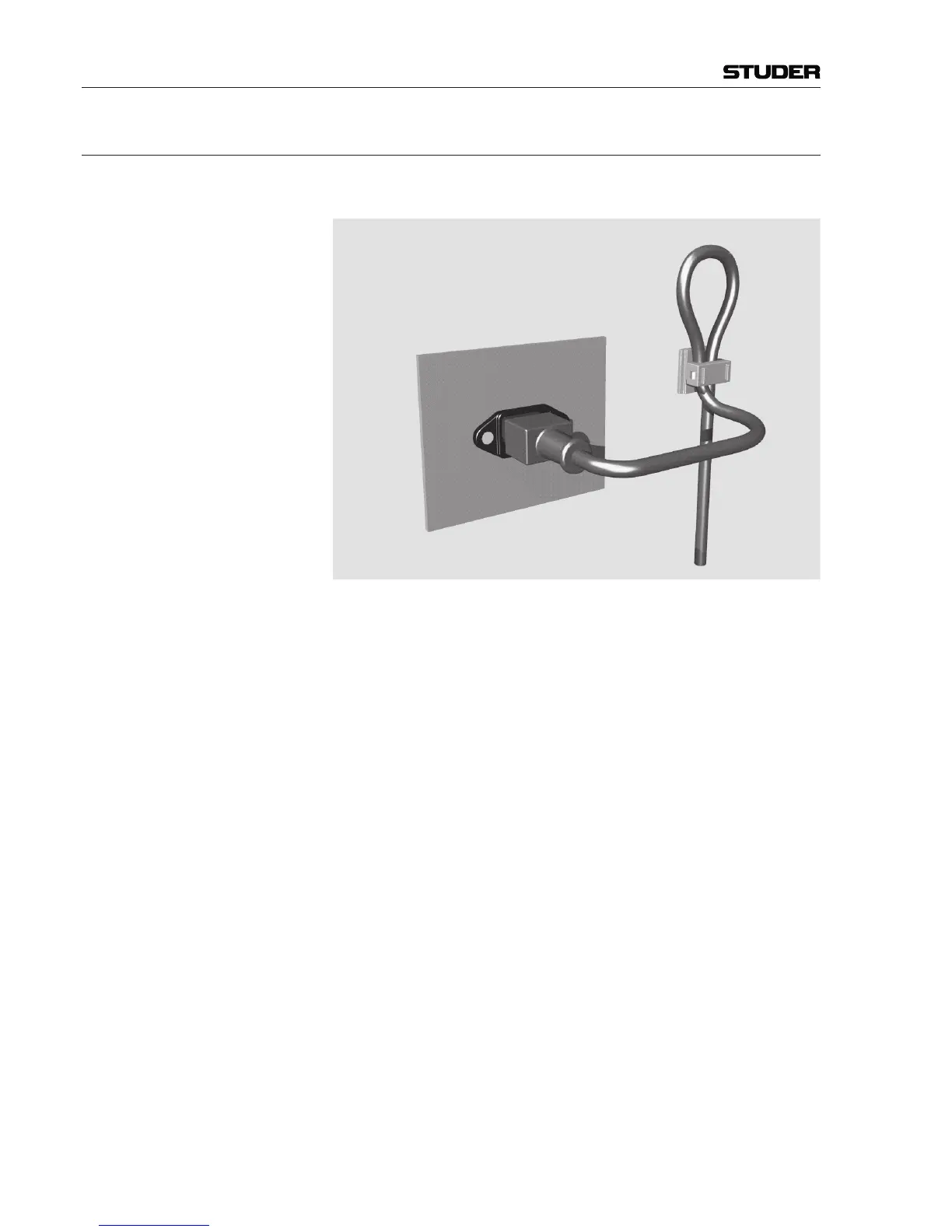

tors), we recommend the following arrangement:
Procedure: The cable clamp shipped with your unit is auto-adhesive. For mounting please
follow the rules below:
  • Thesurfacetobeadheredtomustbeclean,dry,andfreefromgrease,oil,
or other contaminants. Recommended application temperature range is
+20 °C to +40 °C
  • Removetheplasticprotectivebackingfromtherearsideoftheclampand
apply it firmly to the surface at the desired position. Allow as much time as
possible for curing. The bond continues to develop for as long as 24 hours
  • Forimprovedstability,theclampshouldbefixedwithascrew.Forthis
purpose, a self-tapping screw and an M4 bolt and nut are included
  • Placethecableintotheclampasshownintheillustrationaboveandfirmly
press down the internal top cover until the cable is fixed
