Livewire Inputs The physical input mapping of Livewire inputs to LogicalInputs differs from
that of all other consumers (PatchInputs, Returns, Extern PFL- and Moni-
toring Sources, etc.), in order to make sure the following mapping rules are
applied:
  • ALogicalInputisalwaysmappedtotheleft-andrightchannelofaListener.
This avoids conflicts for the label transfer.
  • AListenerisonlyconsumedfromoneLogicalInput.Thisavoidsconflicts
during operation (Strip Lock, OnAir restriction, etc..).

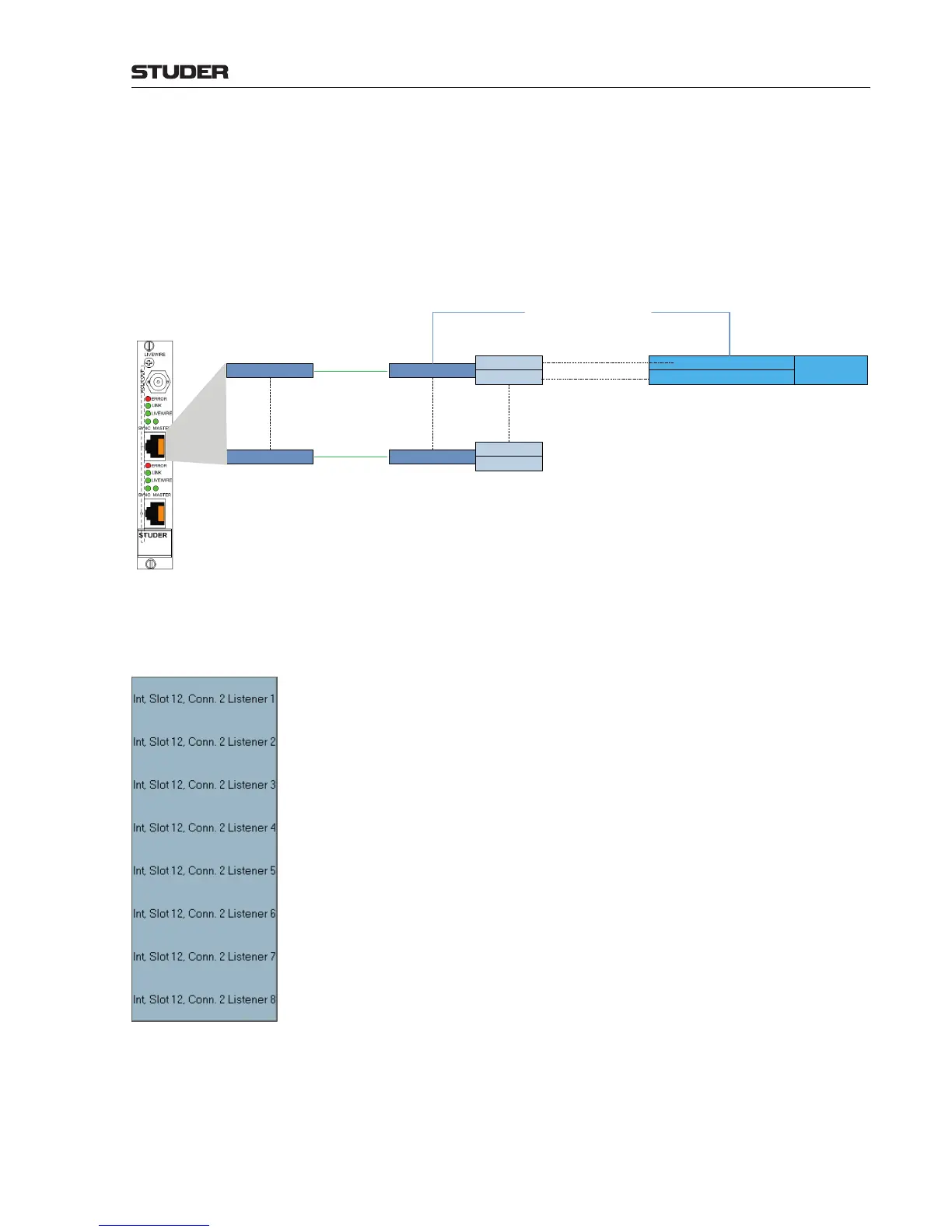

Input Stream 1
LVDS In 1
LVDS In 2
Input Stream 8
LVDS In 15
LVDS In 16
LogicalInput A
FRouter51Src.FirstSource
FRouter51Src.SecondSource
Physical Input Mapping
Listener 1
Listener 8
Input Stream Patching
For the first source of LogicalInputs, Listeners of Livewire I/O cards appear
in a dedicated group called Livewire. A Livewire Listener is always a logical
source with stereo format.
When selecting the Livewire group, all available Livewire Listeners, which
are not yet assigned to a LogicalInput appear for selection.
Note : A Livewire Listener can only be assigned to a LogicalInput once.
