OnAir Digital Mixing Consoles
6-20 Conguration
Document generated: 10.10.14
SW V6.0
Label This is the string displayed in the output routing page. The label may have
up to eight characters and is defined as described in chapter 6.5.1.
Format Defines the audio format of the logical output. Selections: Stereo, Mono,
or 5.1. All stereo buses, such as the masters, the AUX buses, and the N–X

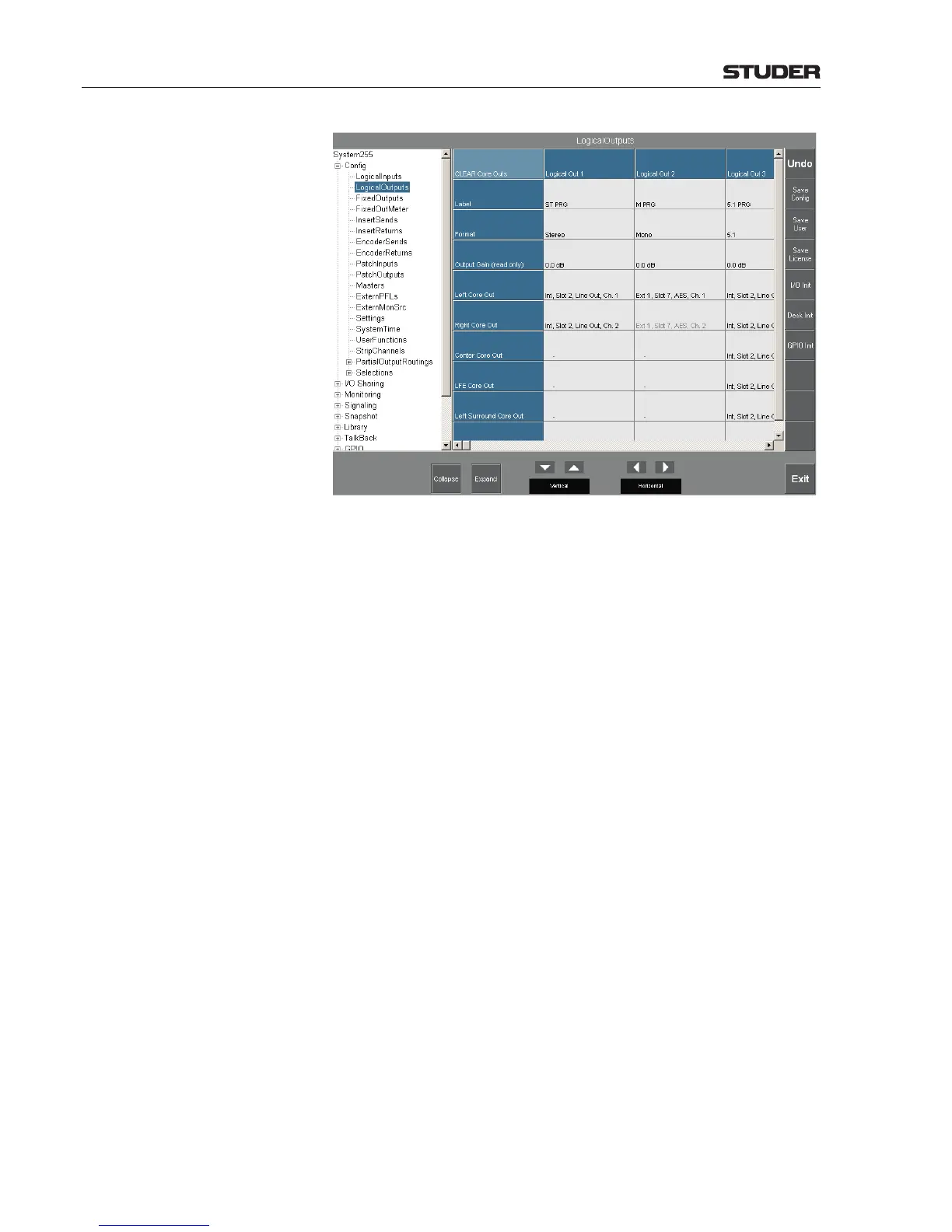

buses may be assigned to a physical stereo and mono output at a time. In
the example above, the PRG output has its stereo format output (labeled ST
PRG) on Logical Out 1 and its mono format output (M PRG) on Logical
Out 2.
