Note: The definition must represent the actual physical (hard-wired) connections
established by MADI, AES/EBU etc. wiring.

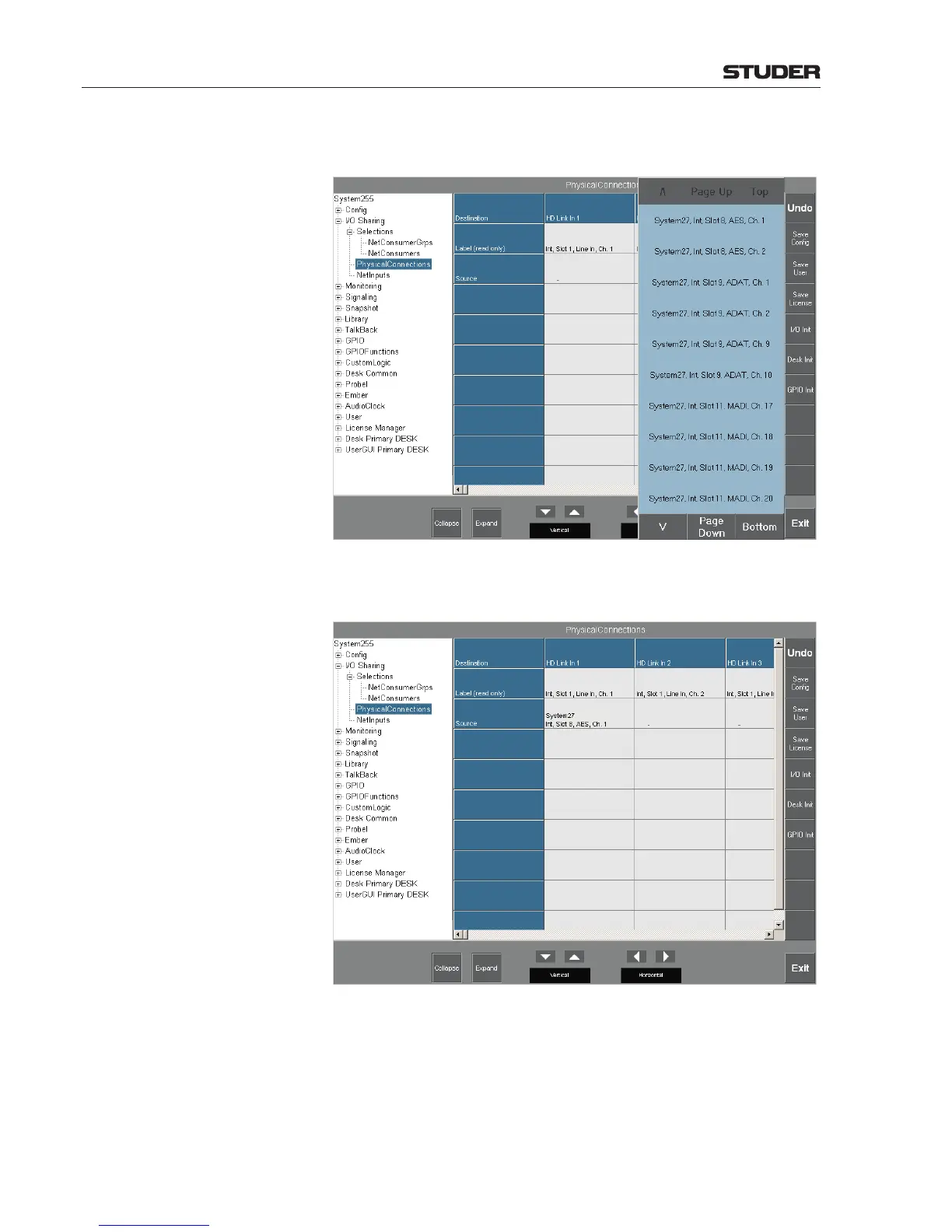

Select one of the outputs (System27, Int, Slot 8, AES, Ch. 1) to define the
physical connection. It is displayed afterwards in the corresponding Source
field, as shown below.
In order to save this physical connection, touch the Save Config button.
Clear a Physical Connection: In order to clear a physical connection, remove the existing relation between
an input and an output of a neighboring system. Select the input the Source
parameter of which should be cleared and touch the ‘-’ field.
If the specified input is currently in use by a Net Input, the connection cannot
be cleared, and a user message is displayed.
