OnAir Digital Mixing Consoles
6-66  Conguration
Document generated: 10.10.14
SW V6.0
UserSnapshot: Loading Mic Parameters
Allows user snapshots to temporarily access the microphone preamp param-
eters (high-pass filter, phantom power and gain) of either only local or local
and free remote channels.

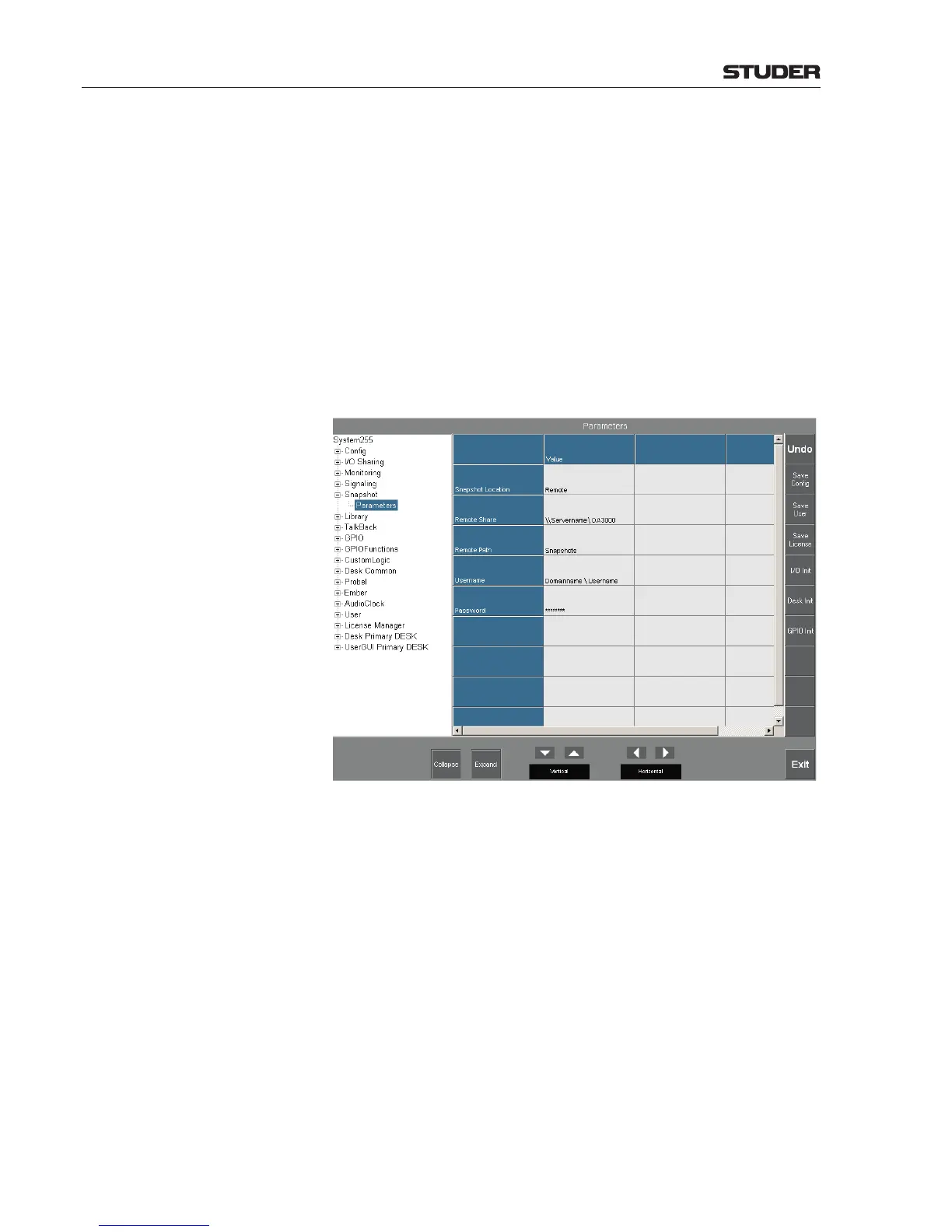

Snapshot Location - Remote  All global and user snapshots may be saved on a central file server. This is
a convenient feature whenever a user works on several different consoles
within a network; no matter on which of the networked consoles he is cur-
rently logged in, he has access to his snapshots.
Note: System requirements for saving snapshots on a central snapshot file server:
  • SMBfileserver(Windows 2003 Server, Windows Vista and Windows 7 not
supported), and
  • WINSservermustbepresentwithinthenetwork.
Snapshot Location  Selects the location of the snapshots displayed in the user GUI; either Local,
i.e. in the console memory, or Remote, i.e. on the central snapshot file server.
The parameters listed below are displayed in case of Remote only.
Remote Share The share made available by the central snapshot file server is entered here.
Remote Path (Optional) Entry of the remote path.
Username / Password For login on the central snapshot file server, the required domain and user
names and password are entered here.
