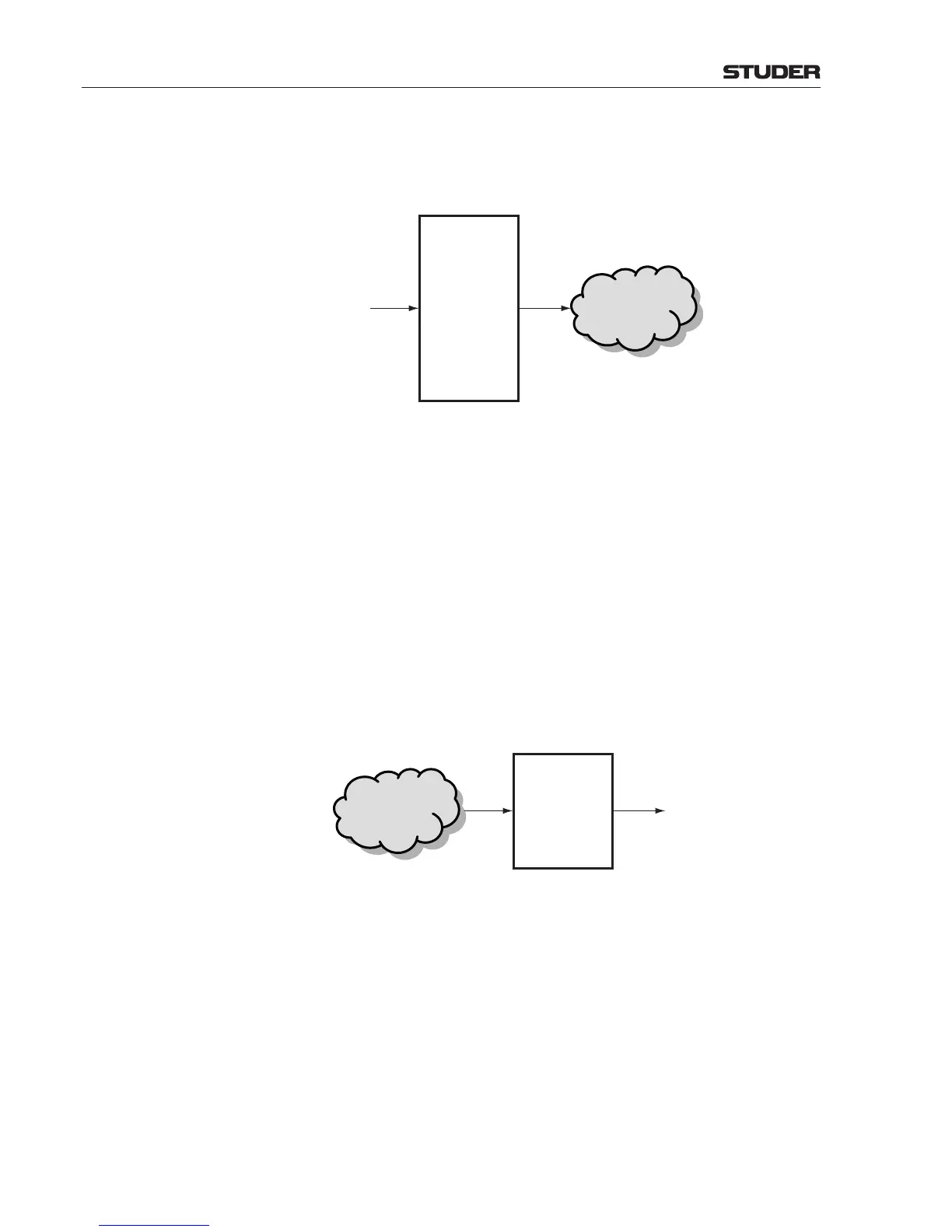

GPInput Function A GPInput function consists of the part of the former GPInput function
(SW V3.1 and earlier) that had implemented the logic as specified by the
Func_Type parameter. GPInput functions are, e.g., TBFromExtern, LSP Cut,
Channel ON/OFF, etc.
Label
Func Type
Func Argument 1
Func Argument 2
Func Argument 3
Action
Time
Triggered Edge
Activate
Source
Level DNet Tree
Label is initialized by the software as ‘GPInputFunction N’ by default. It can
be changed by the user. However it does not follow the label of its producer
as the I/O Sharing consumer labels do).
Source allows defining a ‘Level Producer’ since GPInput functions are (net-)
consumers. The following producers are allowed:
  • LocalorremoteGPInput
  • LocalorremoteGPOutputfunction
  • LocalorremoteCustomLogic
For further details on the parameters and the ‘Level’ term, refer to chapter
6.5.29.2.1.
The number of GPInput functions can be configured in the GPIO Func-
tions.XML file.
GPOutput Function A GPOuput function consists of the part of the former GPOutput function
(SW V3.1 and earlier) that had implemented the logic as specified by the
Func_Type parameter. GPOutput functions are, e.g., TBToExtern, FaderStart,
Channel ON/OFF, etc.
Label
Func Type
Func Argument 1
Func Argument 2
Func Argument 3
Activate
LevelDNet Tree
Generator was added as a new GPOutput function. Depending on its mode
(Funct_Argument 1) it creates a static high, static low, or an alternating output
level (synchronous with the desk LEDs).
Label is initialized by the software as ‘GPOutputFunction N’ by default. It can
be changed by the user. However it does not follow the label of its producer
as the I/O Sharing consumer labels do).
For further details on the parameters and the ‘Level’ term, refer to chapter
6.5.29.2.1.
The number of GPOutput functions can be configured in the GPIO Func-
tions.XML file.
GPOutput functions are producers or net sources that can be accessed from
remote systems as well.
