Rear Rear
Air
Air
Air
Air
RearFront Front Front
D21mD21m D21m

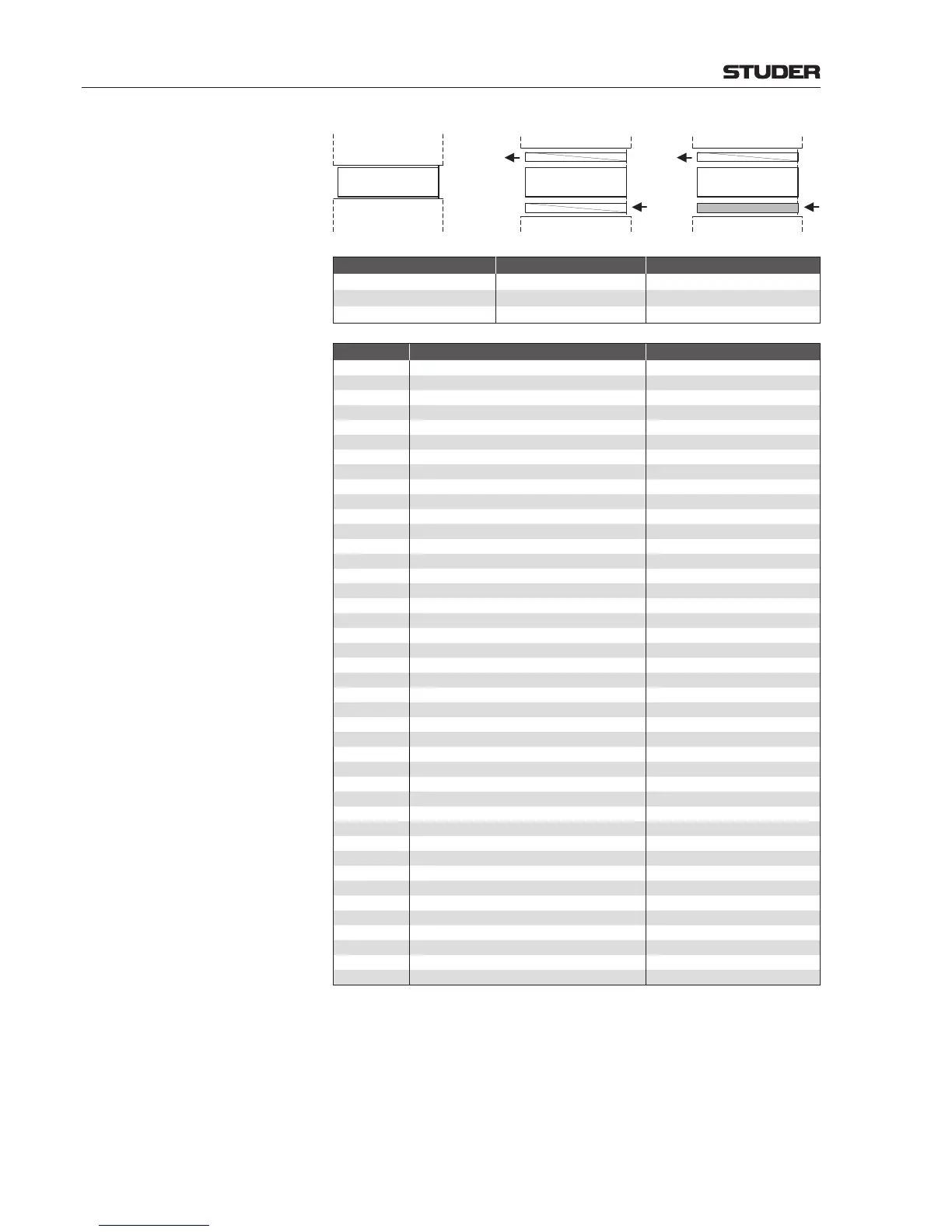

Operating Mode Total Height Max. Power Dissipation
Closed 3 U 40 W
Passive, w. Vents 5 U 80 W
Active, w. Fan and Vent 5 U 200 W
Card No. Card Name Power Dissipation (approx.)
Backplane with power supply 10 W
A949.0427 Mic/Line in card (transformerless) 11 W
A949.0428 Analog insert card 2 W
A949.0447 HD Mic/Line in card (transf.-balanced) 10 W
A949.0421 Line In card 7 W
A949.0420 Line out card 7 W
A949.0422 AES/EBU card 3.5 W
A949.0423 AES/EBU card with input SRC 4.5 W
A949.0424 AES/EBU card with input/output SRC 5.5 W
A949.0454 AES/EBU M2 card 3.7 W
A949.0455 AES/EBU M2 card with input SRC 4.5 W
A949.0456 AES/EBU M2 card with input/output SRC 5.4 W
A949.0430 MADI card, multi-mode îš¿bre 4 W
A949.0431 MADI card, single-mode îš¿bre 4 W
A949.0433 MADI card, twisted pair 4 W
A949.0425 ADAT I/O card 1.7 W
A949.0429 ADAT card, long-distance option 1.7 W
A949.0426 TDIF I/O card 1 W
A949.0452 3G SDI input card (16 channels) 4.5 W
A949.0442 SDI input/output card (8 channels) 4 W
A949.0451 3G SDI input/output card (16 channels) 4 W
A949.0443 Dolby
®
E/Digital decoder card, single 2.5 W
A949.0444 Dolby
®
E/Digital decoder card, dual 4 W
A949.0445 CobraNet
®
card 4.5 W
A949.0446 Aviom A-Net
®
card 2 W
- EtherSound card 3 W
5029584 BCD DTMF decoder/GLITS generator card 0.5 W
5029586 BCD BLITS/GLITS generator card 0.5 W
5029587 BCD Minimixer card 0.5 W
5014376 Livewire card 7.5 W
5037474 BNC Intercom card 4 W
A949.0435 GPIO card 3 W
A949.0436 GPIO card with relay outputs 2 W
A949.0412 HD card S 5 W
A949.0415 HD RS422 card 5 W
A949.0411 MADI HD card, multi-mode îš¿bre 5.5 W
A949.0413 MADI HD card, single-mode îš¿bre 5.5 W
A949.0414 MADI HD card, twisted pair 5.5 W
A949.0437 Serial card 0.2 W
A949.0438 Serial Merger card 0.6 W
A949.0439 Serial RJ45 card 0.2 W
A949.0440 Dual Merger card 1.2 W
