Studer OnAir 3000 User Manual

OnAir Digital Mixing Consoles
6-104 Conguration
Document generated: 10.10.14
SW V6.0
Compact Mon/TB Module Key Nos.:
2 41
MON:
TB:
3
2 41 3
5 6 7 8
9 10 11 12

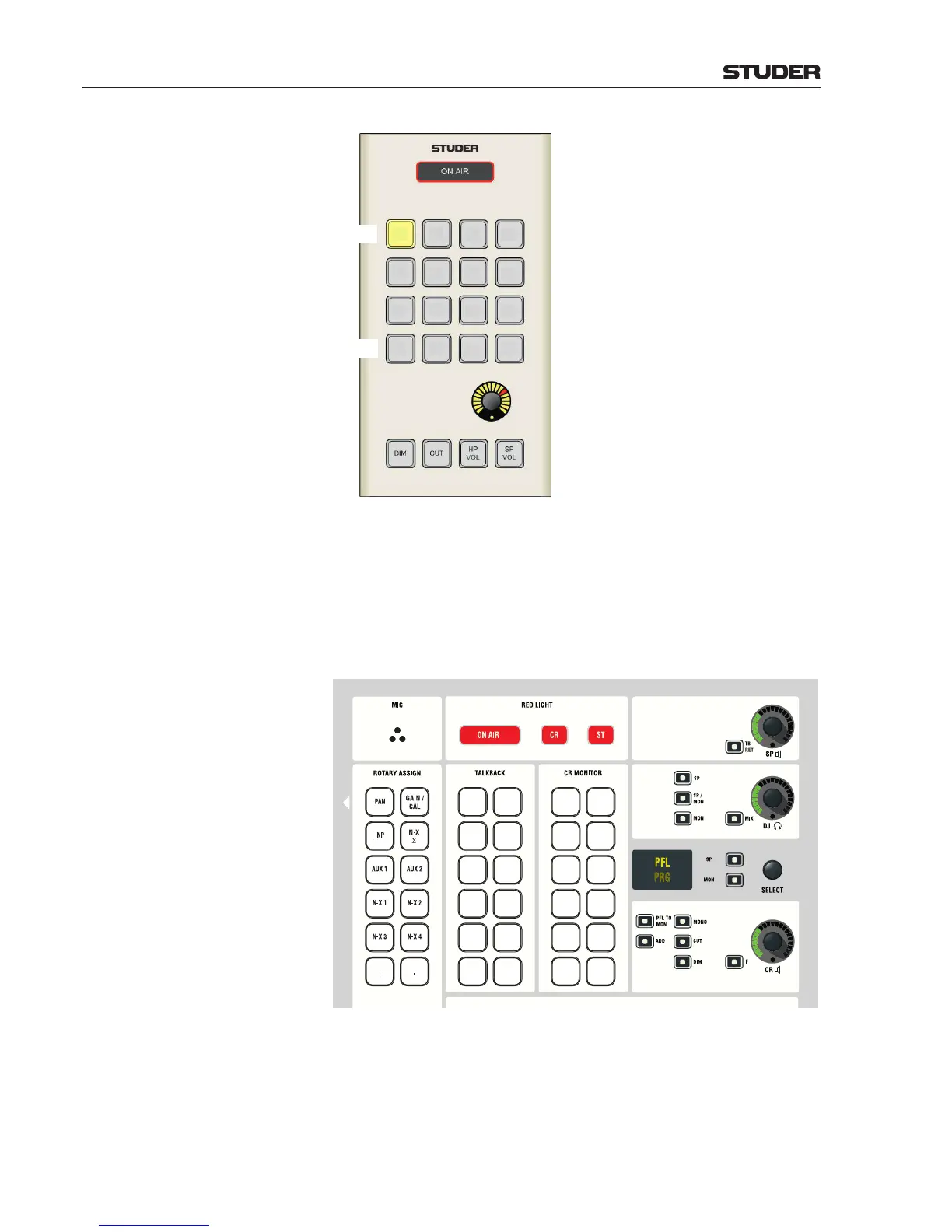

OnAir 2500 The same pages as shown under ‘OnAir 3000’ above allow assigning monitor-
ing sources to the CR MONITOR and talkback destinations to the TALKBACK
key fields of the console’s central module. The Rotary parameter stands here
for the  key (no. 6) in the CR MONITOR field. These keys are duplicated by
the 20 buttons on the MON - CR and MON - ST2 GUI pages, as well as by
the 12 buttons on the MON - TB SP GUI page. The key/button numbering
is given in the illustrations below.
CR MONITOR/TB Key Nos.:
2
4
1
3
5 6
7 8
9 10
11 12
2
4
1
3
5 6
7 8
9 10
11 12
