Studer OnAir 3000 User Manual

OnAir Digital Mixing Consoles
6-106 Conguration
Document generated: 10.10.14
SW V6.0
OnAir 1500 The same pages as shown under ‘OnAir 3000’ above allow assigning monitor-
ing sources to the CR MONITOR and talkback destinations to the TALKBACK
key fields of the console’s central module. These keys are duplicated by the
20 buttons on the MON - CR and MON - ST2 GUI pages, as well as by the

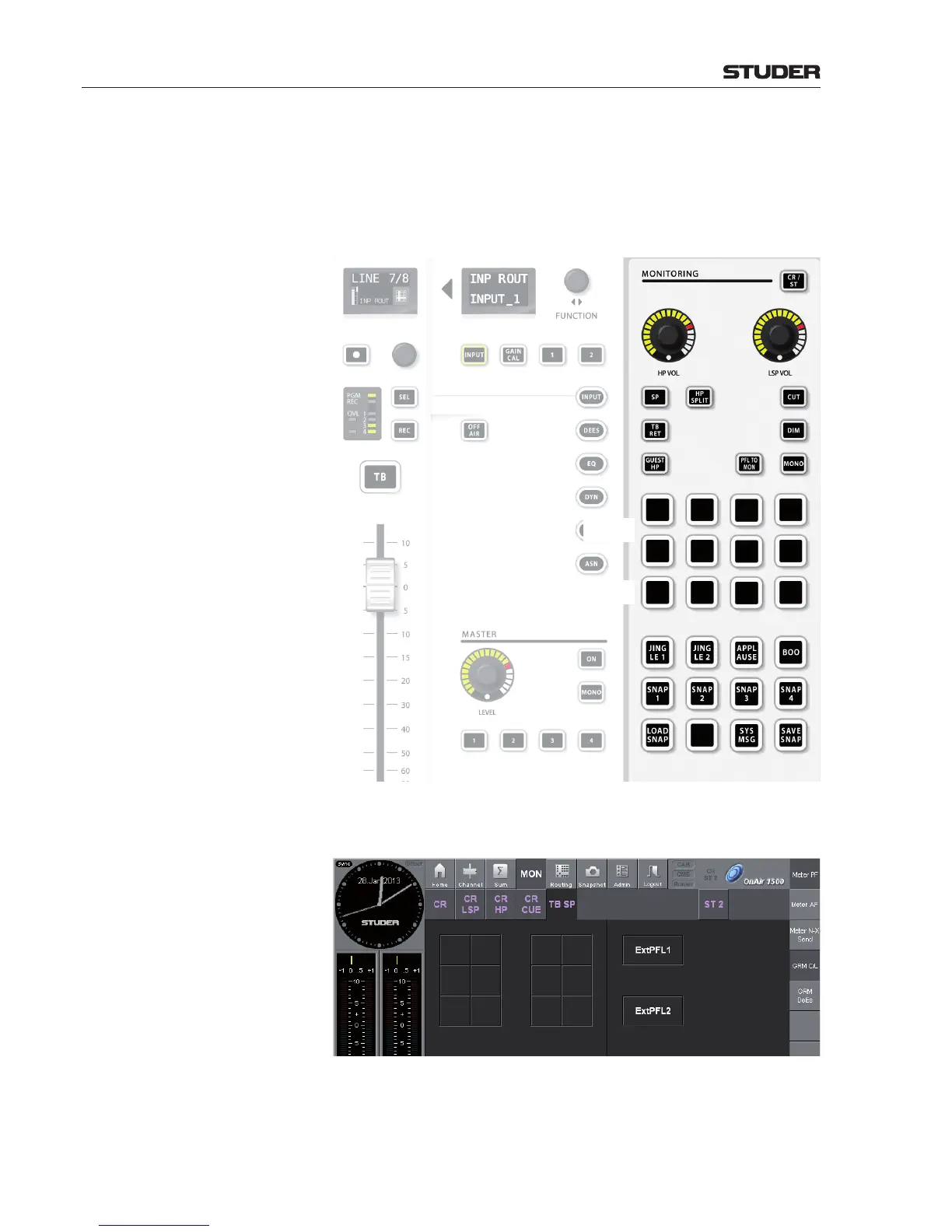

12 buttons on the MON - TB SP GUI page. The key/button numbering is
given in the illustrations below.
CR MON/TB Key Nos.:
2 41
MON:
TB:
3
2 41 3
5 6 7 8
ST2 Key Nos.: same as in the OnAir 2500 paragraph, see previous page.
TB SP Key Nos.:
1 2 3 4
5 6 7 8
9 10 11 12
Compact Mon/TB Module Key Nos.: same as in the OnAir 3000 paragraph, see previous page
