OnAir 3000 Digital Mixing Console
5-16 Operation
Document generated: 10.10.14
SW V6.0

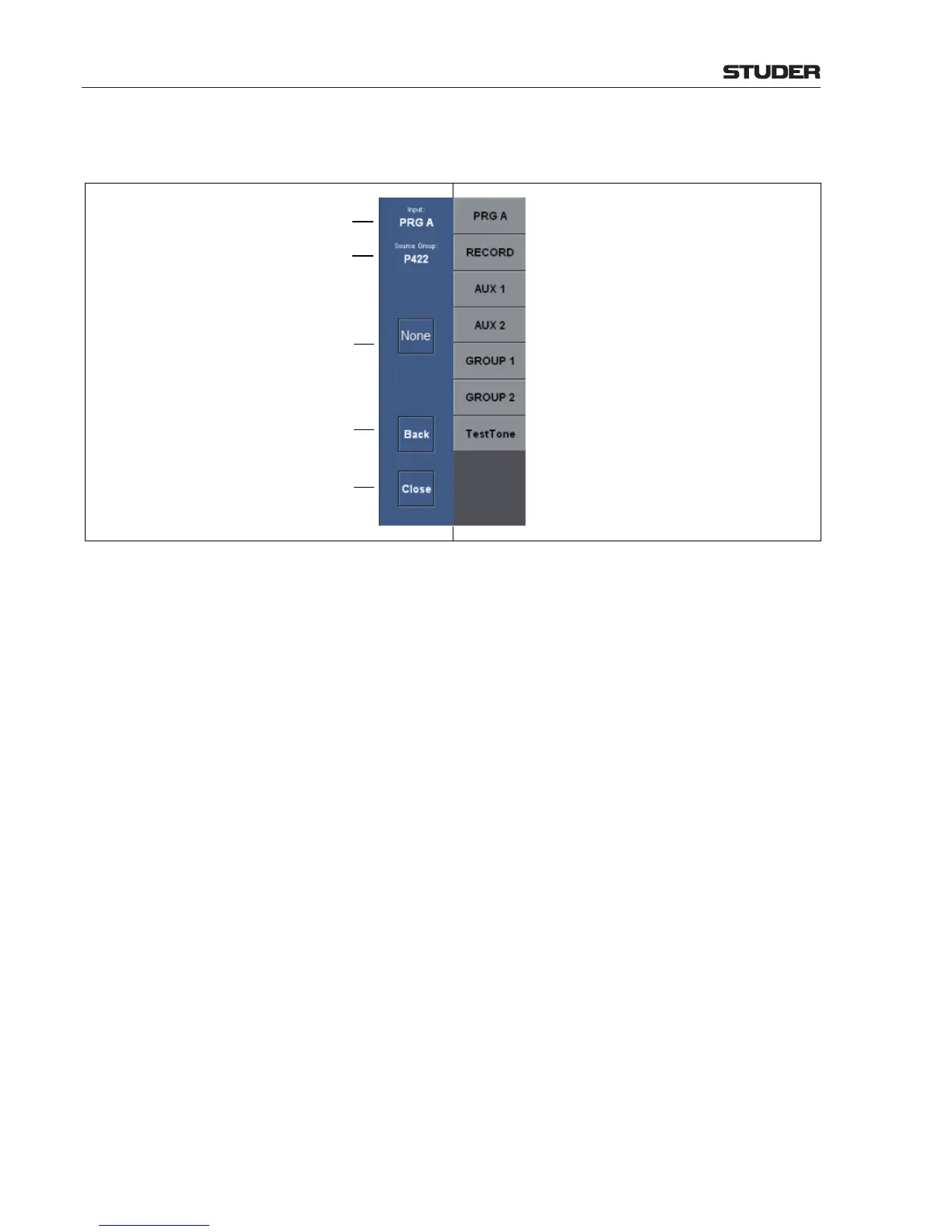

Source Selector Dialog 2
Input
Input indicates the label of the
Logical Input currently assigned
to the selected Strip Channel.
The None button allows
disconnecting the current
Stream.
The Back button closes the
Source Selector dialog and leads
back to the Input Selector dialog.
The Close button only closes
the Source Selector dialog.
All Streams are listed here in
alphabetic order.
Source Group indicates the
previously selected Stream
Group.
Control Area Stream Area
None button
Back button
Close button
Source Group
After selecting a Stream, the Source Selector dialog is immediately closed.
Further functions common to all Input Types
Phase Inverts the audio signal for microphone and mono inputs; inverts the left
channel signal for stereo inputs, except in the RR case (see below) – then of
course it makes sense to invert the right channel signal. The Phase button
is highlighted whenever phase inversion is active.
Cal The input level calibration value is indicated by the blue bar graph; the exact
value is displayed in dB and can be set with the rotary encoder below.
Delay Since SW V3.0, a delay function has been added to systems using the SCore
Live (configuration C108). It is available for:
  • Allinputchannelsatafixedpositionafterinsertbutpre-processing,which
allows individually selecting the insert send and the direct channel output
signals before or after processing and delay.
  • Master,AUX,N–Xandsubgroupchannelsatafixedpositionafterthe
limiter/compressor.
The delay can be set in a range of 0 to 5 s, in steps of 1 ms in the CHAN -
Input page of the respective channel. The channel and gain reduction meters
always indicate the delayed signal.
Note: The mic clip limiter on/off button that was found on the CHAN - Input
pages of microphone inputs with SW versions before 3.0 was moved to the
configuration tool, refer to chapter 6.5.1.
