OnAir 3000 Digital Mixing Console
5-32 Operation
Document generated: 10.10.14
SW V6.0
non-motor fader modules), control can be taken over again by the physical
fader; there will, however, be an audible level jump in such a case.
Joker Indicates the function currently configured to the ‘Joker’ key on the channel
strip. For configuration refer to chapter 6.5.1.

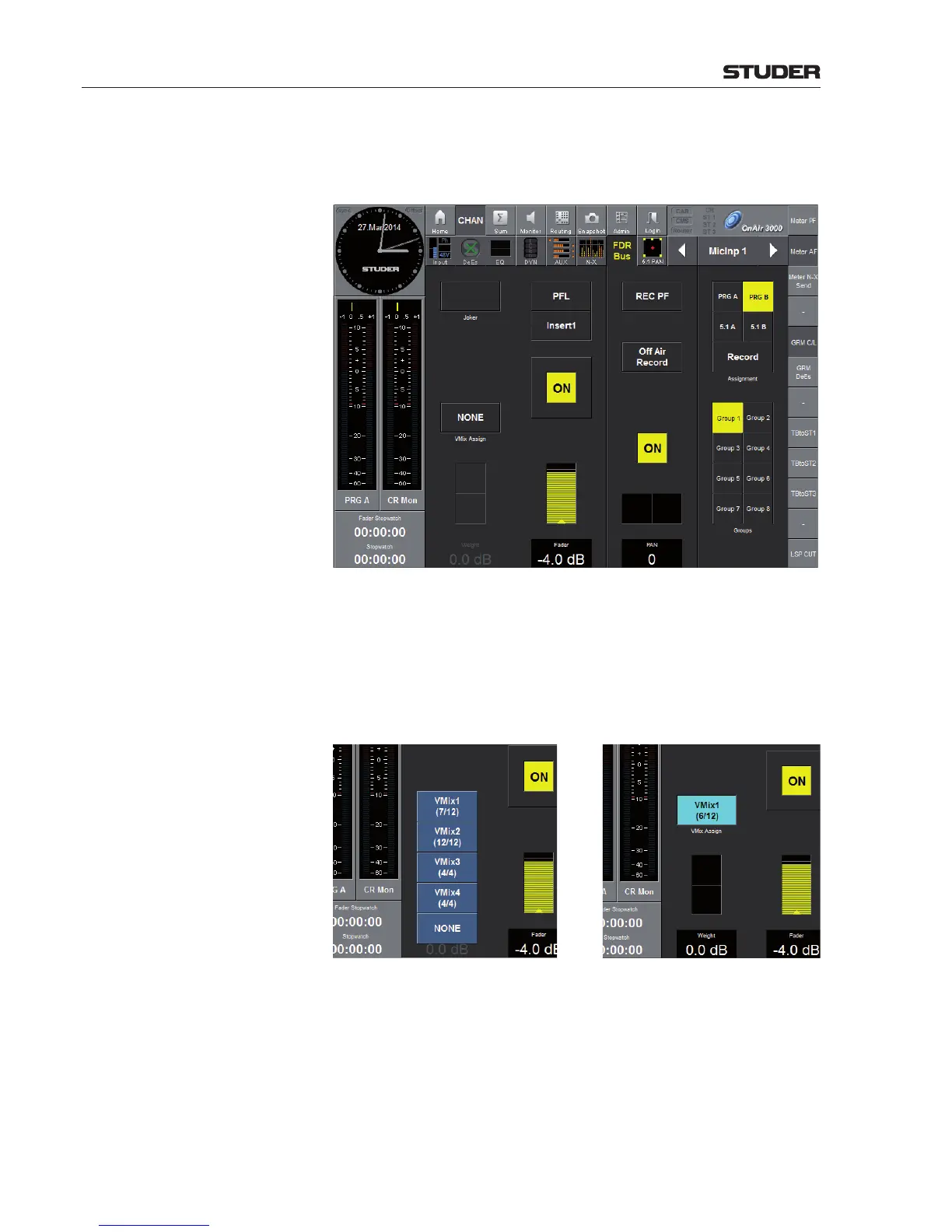

VMix Assign (optional) Using this button, the channel can be assigned to one of the VoiceMix pro-
cesses. Touching on the VMix Assign button, displays a choice of all avail-
able VoiceMix processes (VoiceMix groups).Two numbers are shown next to
the names of the VoiceMix processes : the first number indicates how many
channels can still be assigned, and the second number shows the maximum
number of assignable channels. As soon as the first number of one of the
processes has reached 0, no more channels can be assigned to this process.
Selecting one of the VMix processes, the processes name and the two numbers
of available- and maximum channels are displayed in the cyan colored VMix
assign button.
The VMix button is greyed out if the logical input is assigned to a VoiceMix
process, but cannot be processed as no free member is currently available.
To deassign the channel from the VMix process, simply touch the button
again and chose the “NONE” button.
Weight (VoiceMix) As soon as the channel is assigned to a VMix process, the parameter ‘Weight’
