Implementing High Performance DSP Functions in Stratix & Stratix GX Devices

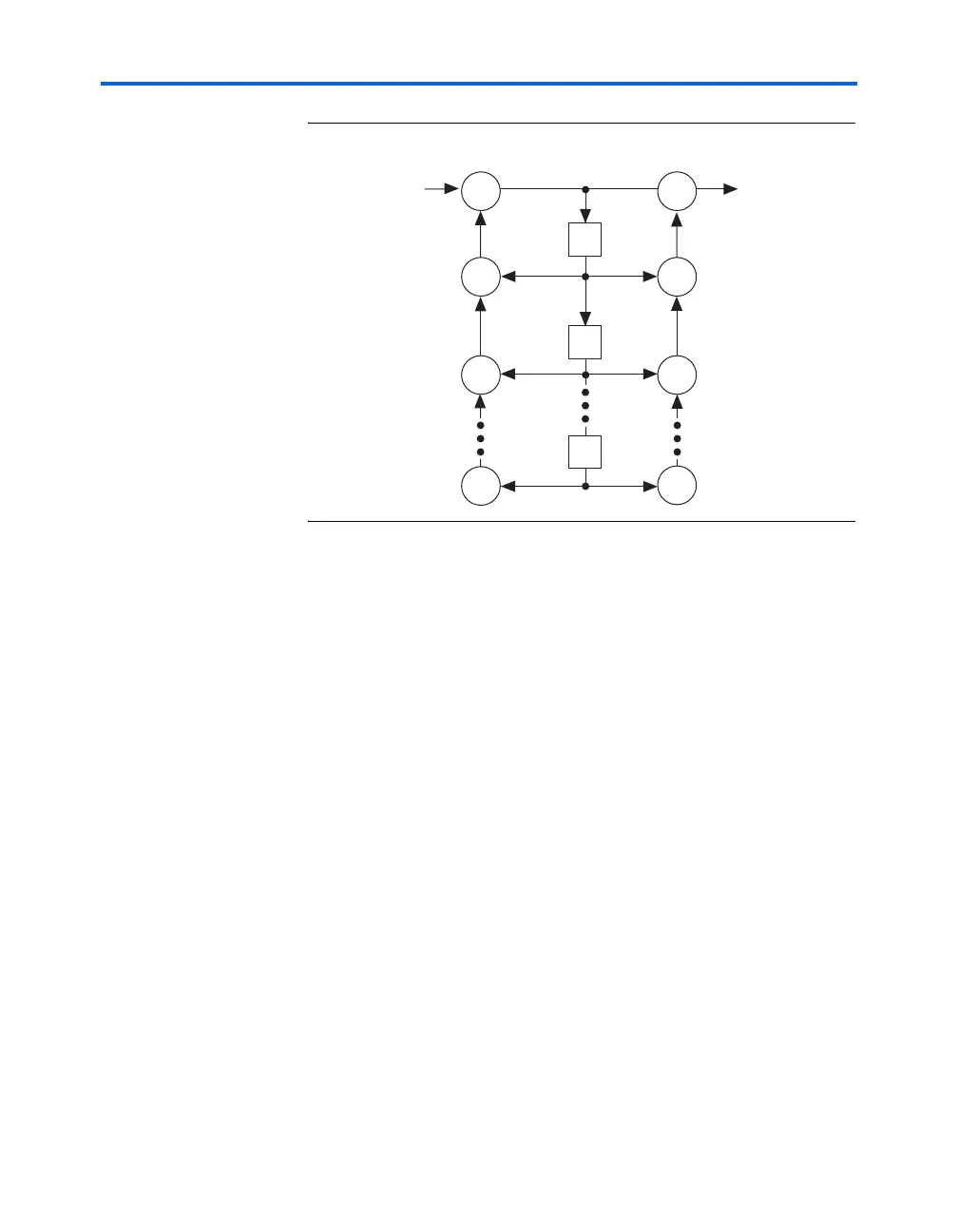

Figure 7–20. Direct Form II Structure of an IIR Filter
The transfer function for an IIR filter is:
The numerator contains the zeros of the filter and the denominator
contains the poles. The IIR filter structure requires a multiplication
followed by an accumulation. Constructing the filter directly from the
transfer function shown above may result in finite word length
limitations and make the filter potentiality unstable. This becomes more
critical as the filter order increases, because it only has a finite number of
bits to represent the output. To prevent overflow or instability, the
transfer function can be split into two or more terms representing several
second order filters called biquads. These biquads can be individually
scaled and cascaded, splitting the poles into multiples of two. For
example, an IIR filter having ten poles should be split into five biquad
sections. Doing this minimizes quantization and recursive accumulation
errors.
X(n)
Σ
-b
1
a
1
Σ
Σ
Σ
Z
-1
Z
-1
Z
-1
Σ
Σ
Σ
Σ
-b
2
-b
n
Y(n)
a
2
a
n
a
0
w(n)
Hz()
a
i
z
i–
i0=
n
∑
1b
i
z
i–
i1=
n
∑
+
------------------------------=
