8-strip tube standard or fast assembly
IMPORTANT! Use the correct plate base for 8-tube standard or fast strips. Using the
wrong plate base may aect performance. See Appendix D, “Catalog numbers“ for
plate assembly specications and catalog numbers.
1
2
3
4
5
6

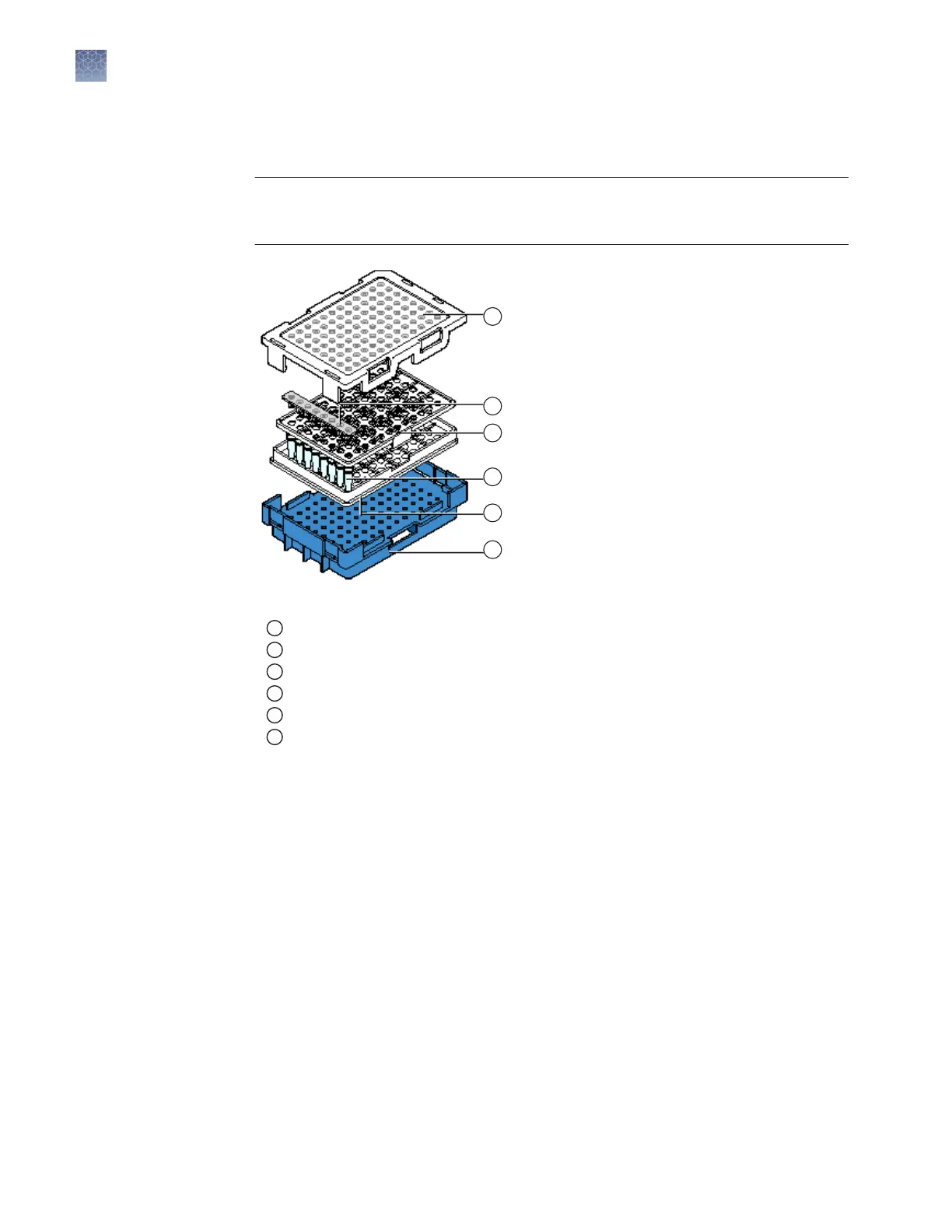

Figure 5 8-s
trip standard tube assembly
1
Plate retainer
2
Septa
3
Retainer
4
8-strip tubes
5
96-well tray
6
Plate base
