6. GUI orientation

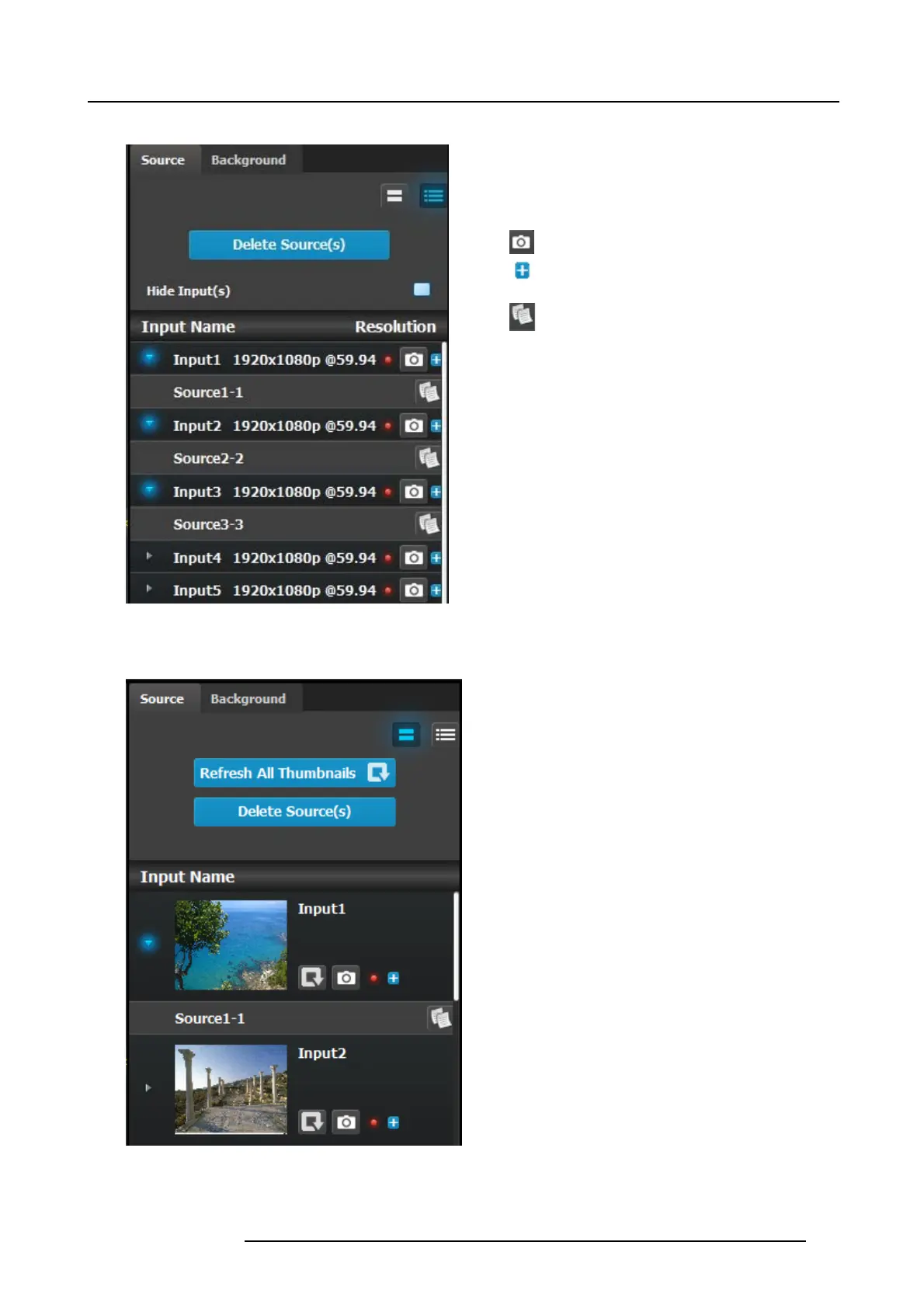

Source (List View)
• Resolution: This is the resolution o f the Input signal.
• The LE D color indicates the status of the input:
- Red: Sync is missing or invalid form at.
- Green: Sync is valid.
•
Allows for a s napshot to be taken and store it as Still.
•
Adds Sources b ased on the inputs. A total of 256 are
allowed per input.
•
Copies the Source into a new Source and adds it in
the list
Source (Thumbnail View)
Thumbnails are sent from the E2 to the GUI.
• Behavior is similar to the List View mode (see above).
• Each thumbnail could be refreshed individually by pressing
the refresh button on the right s ide of the input.
• All thumbna ils are refreshed by pressing the Refresh All
Thumbnail button on the top.
In addition, by cl
icking in thumbnail area images can be imported using the via the fi le picker menu. The picker can select pic tures
with the BMP, JP G or PNG f ormat.
R5905948 E2 12/12/2014
109
