6. GUI orientation

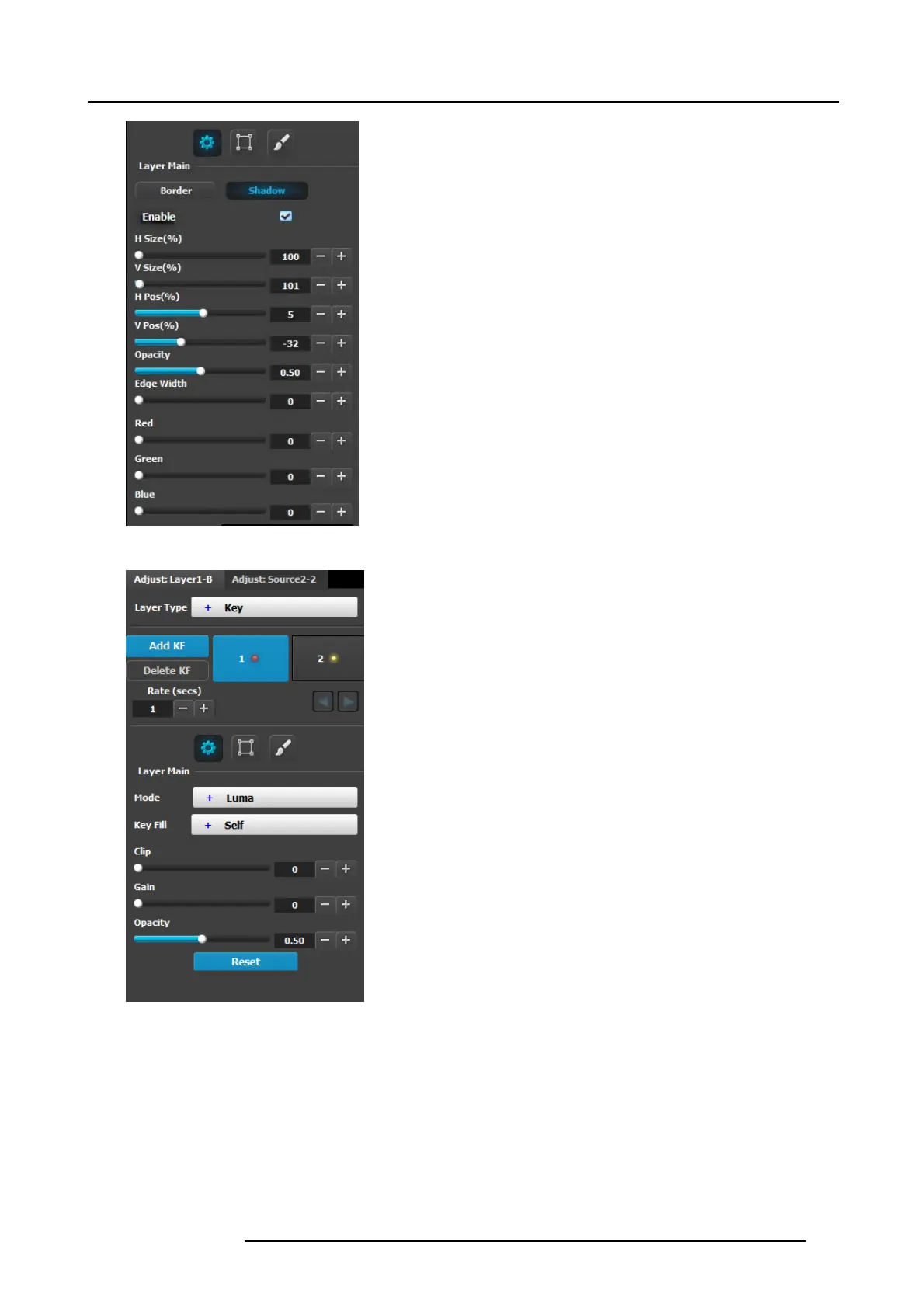

The following functions are provided:
• Enables or disables the PIP’s shadow.
• H Size (%): Adjusts the shadow’s horizontal size as a
percentage of the PIP’s size.
• V Size (%): Adjusts the shadow’s vertical size a s a
percentage of the PIP’s size.
• H Po s(pixel): Adjusts the shadow’s horizontal position in
pixels.
• V Pos(pixel): Adjusts the shadow’s vertical position in
pixels.
• Opacity: Adjusts transparency, from 0 (transparent) to
1024 (opaque).
• Edge Width: A djusts the width of s hadow creating a halo
type of an effect.
• Color Selection: Adjusts the s hadow’s color with the help
of the slider, or with the color wheel.
Layertype=Key:
A Luma (Luminance) Key is one in which the hole-cutting
information is derived from the lum inance (brightness) lev el of
the key source.
Source on the Key Bus can be selected as the “cut.” You c an
select Self or M atte, Preset Bus or Split for the “fill” source.
Clip: Adjust the threshold of the video that “cuts” into the
background. A hole is cut into the background any where that
foreground lum inance is greater than the clip level.
• Range: 0.00 to 1.00, in .01 incremen ts
• Default: 50.00
Gain: Adjus t the sensitivity of the key, enabling y ou to change
the sharpness of the keyed image. Gain only a ffects the ed ge of
the key hole, as set by the clip.
• Range: 0.00 to 1.00, in .01 incremen ts
•Default:1.0
Opacity: A djusts the opacity of the keyed image, from fully
opaque to fully transparent.
• Range: 0.00 to 100.00, in .01 incr ements
• Default: 100.00
Reset: Press to return all clip, gain and opacity settings to their
default v alues.
R5905948 E2 12/12/2014
123
