9. General operation example

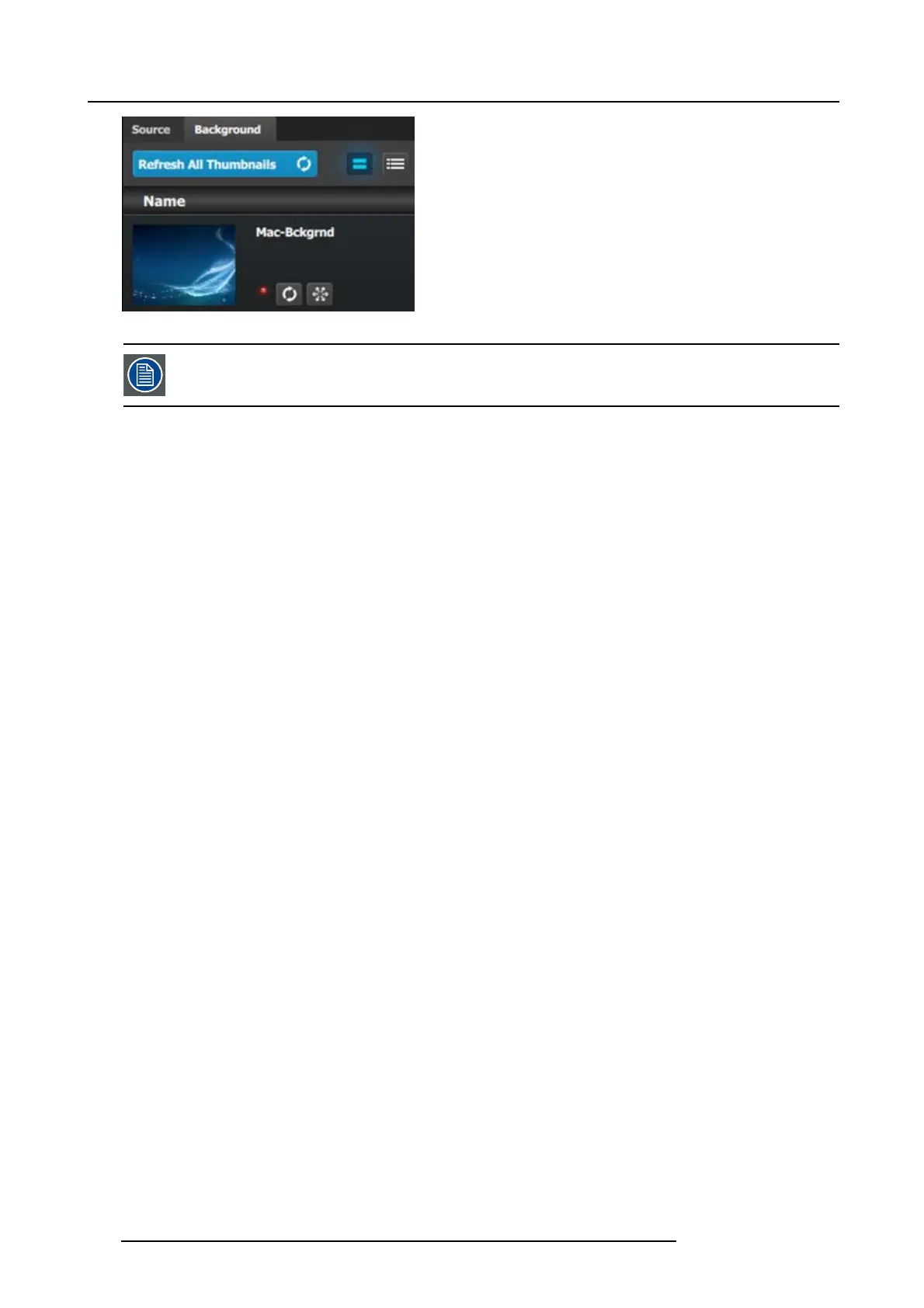

Image 9-14
P2: You can skip this step if you don’t w ant thumbnail images to represent the inputs/sources. In this case,
the layers in the de stinations area will b e black and noted only by the assigned name.
P2: Select thumbnails for Inputs
1. From the left hand side, click on the Input tab.
2. Next to the Refresh All Thumbnails click on the thumbnai l button.
3. Click in the black box and navigate the compu ter to fi nd and se lect the desired pic.
4. After a pic is selected, the image will fill the black square.
5. Repeat this sequence until a pic is selected for each input.
6. When these steps are completed, the section will appear as follows.
