5. Front Panel Menu orientation
Cards

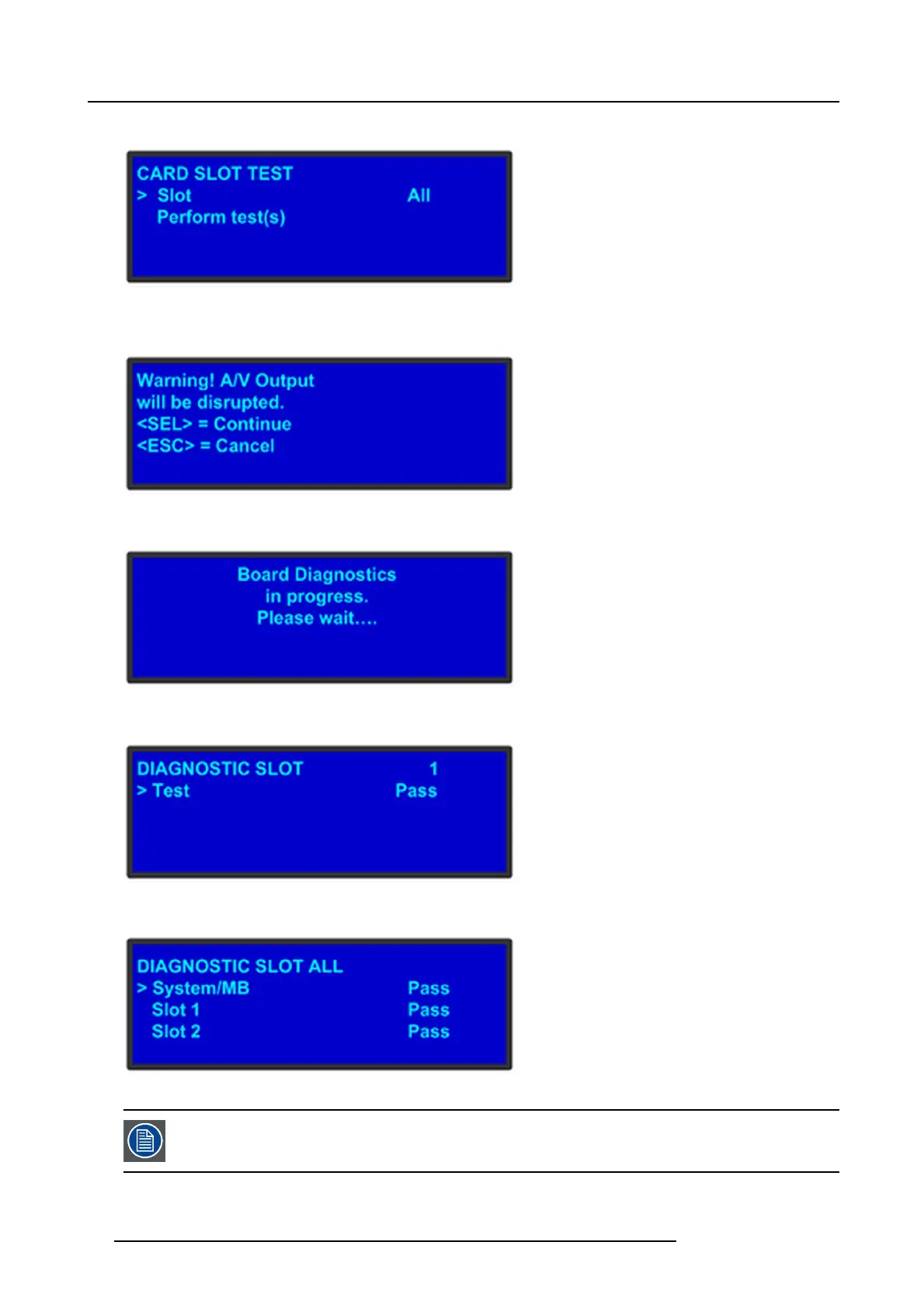

Image 5-17
The Car d Slot test will perform a variety of diagnostics for an individual card or for all c ards. This is a quic k way to determine if a g iven
card is having a problem. After selecting a Slot number or choosing All cards to be tested, the f
ollowing message will be displayed.
Image 5-18
Pressing SEL to c ontinue will start the diagnostic testing. The following mes sage will be displayed.
Image 5-19
If only one slot was selected for testing, a simply PAS S/FAIL result will be shown f or that slot.
Image 5-20
If all slots were selected for testing, the PASS/FAIL result will be shown for a ll slots.
Image 5-21
If a slo t is not populated w ith a card, the result w ill show EMP TY.
60 R5905948 E2 12/12/2014
