5. Front Panel Menu orientation
To see more detailed results of diagnostic testing, run diagnostics from the Event Mast er Control Software.
For details on this fonction, please refer to chapter "Settings Menu > WebKit area > Dashboard", page 145
Temperature

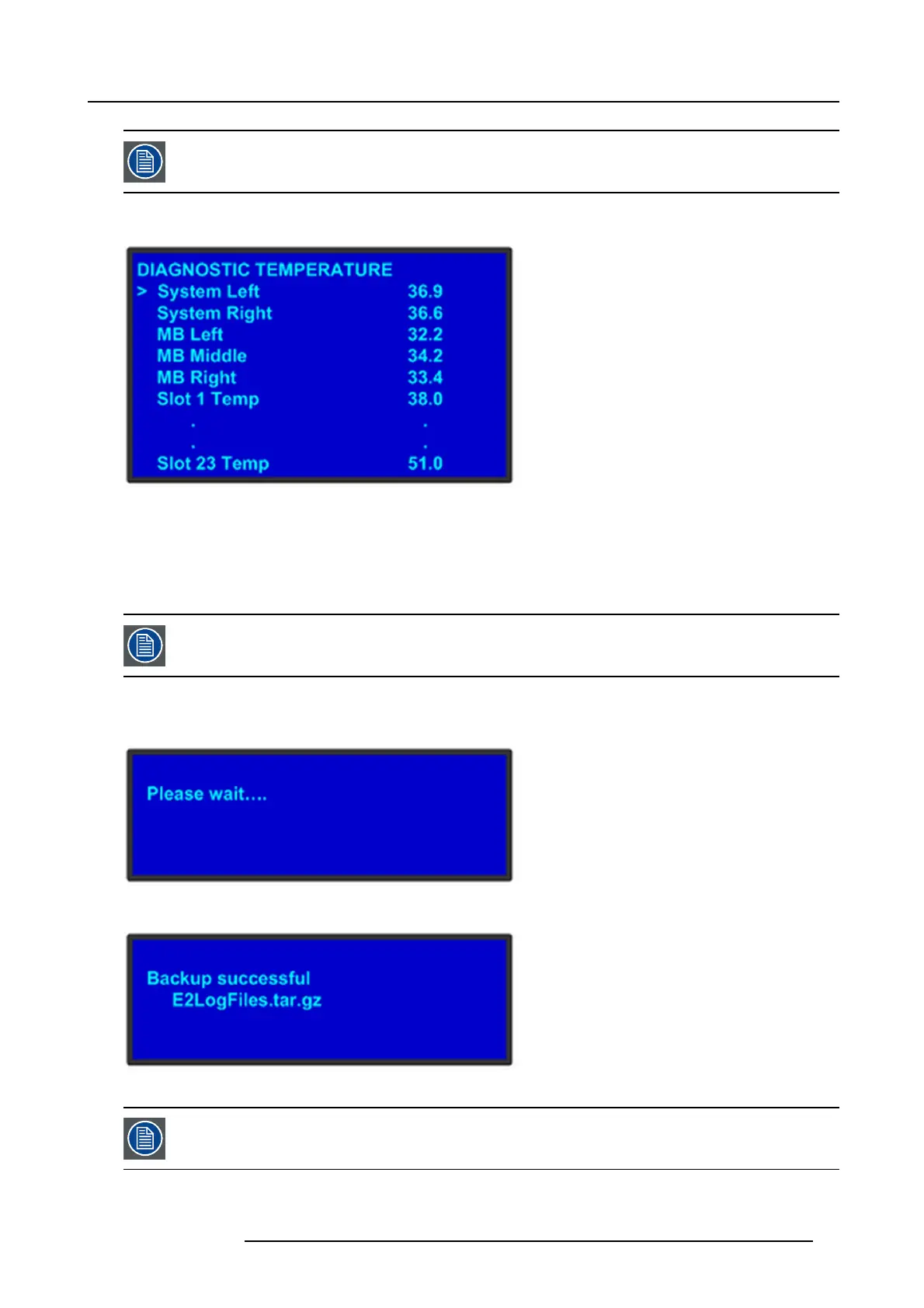

Image 5-22
The DIAGNOSTIC TEMPERATURE m enu will show real time measurem ents for the System, Motherboard and all card slots. All
temperatures are shown in degrees Celsius.
Backup Log Files
Backup log files can be saved for customer service troubleshooting.
In the even t the E2 log files need to be backed up, first install a USB sti ck in the fr ont panel of E 2 .
When Backup Log Files is selected, the E2 will immediately write its log files to the USB stick. The following m enus will be shown
during this proc ess and the E2 will automatically return to the DIAGN OST IC menu once this process is c omplete.
Image 5-23
Image 5-24
The file name will be “E2LogFiles.tar.gz”, and it can be found on the USB stick under the “E2\backup” direc-
tory.
R5905948 E2 12/12/2014 61
