TCD 2015 Railway
Fuel system
W 07-01-04
6

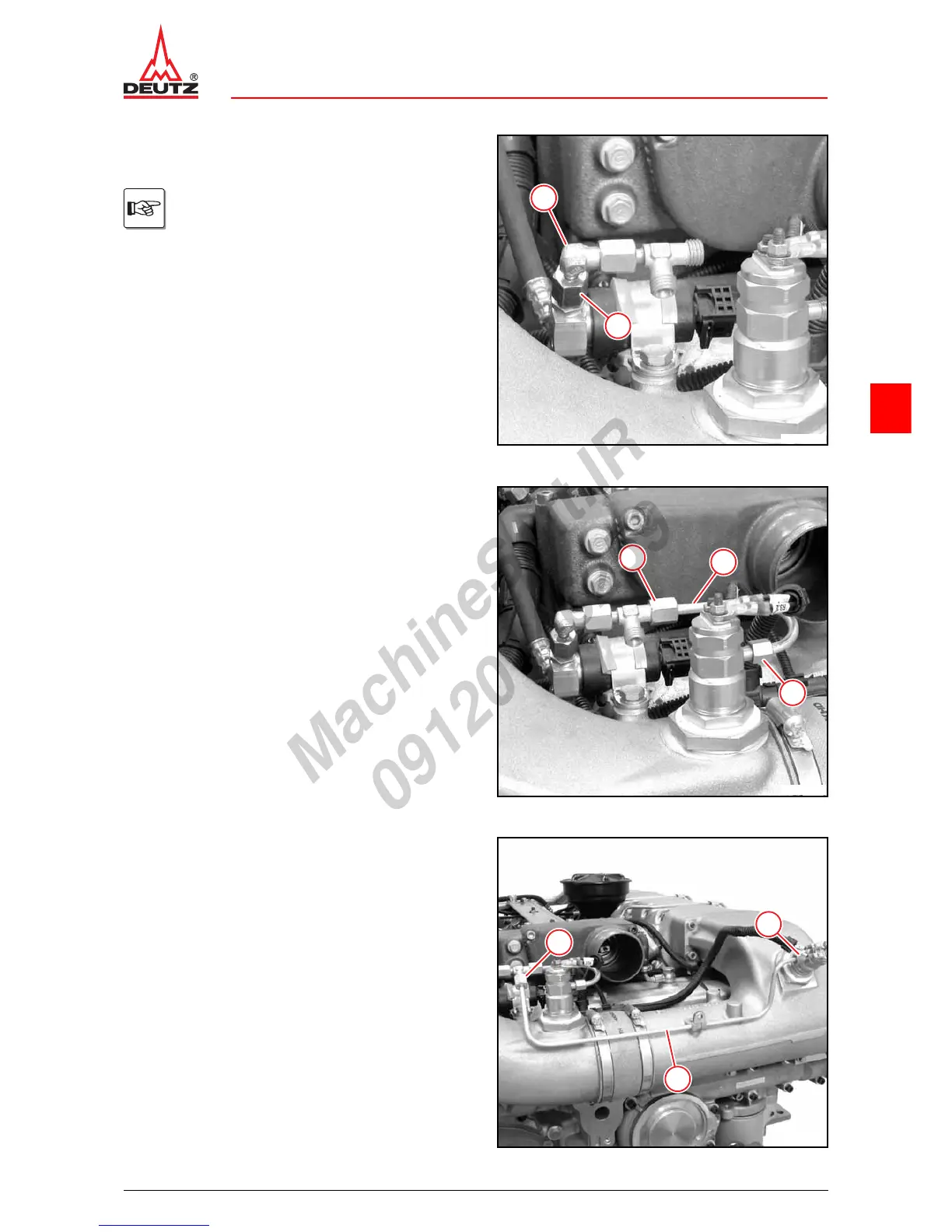

Installing fuel pipes
z Mount distributor (2).
z Screw on lock nut (1).
Note installation position.
1
2
© 42029-1
z Mount fuel pipe (2).
z Screw on union nuts (1).
1
1
2
© 42028-1
z Mount fuel pipe (2).
z Screw on union nuts (1).
1
1
2
© 42026-1
