| Basic Management Tasks

Displaying Memory Utilization

– 121 –

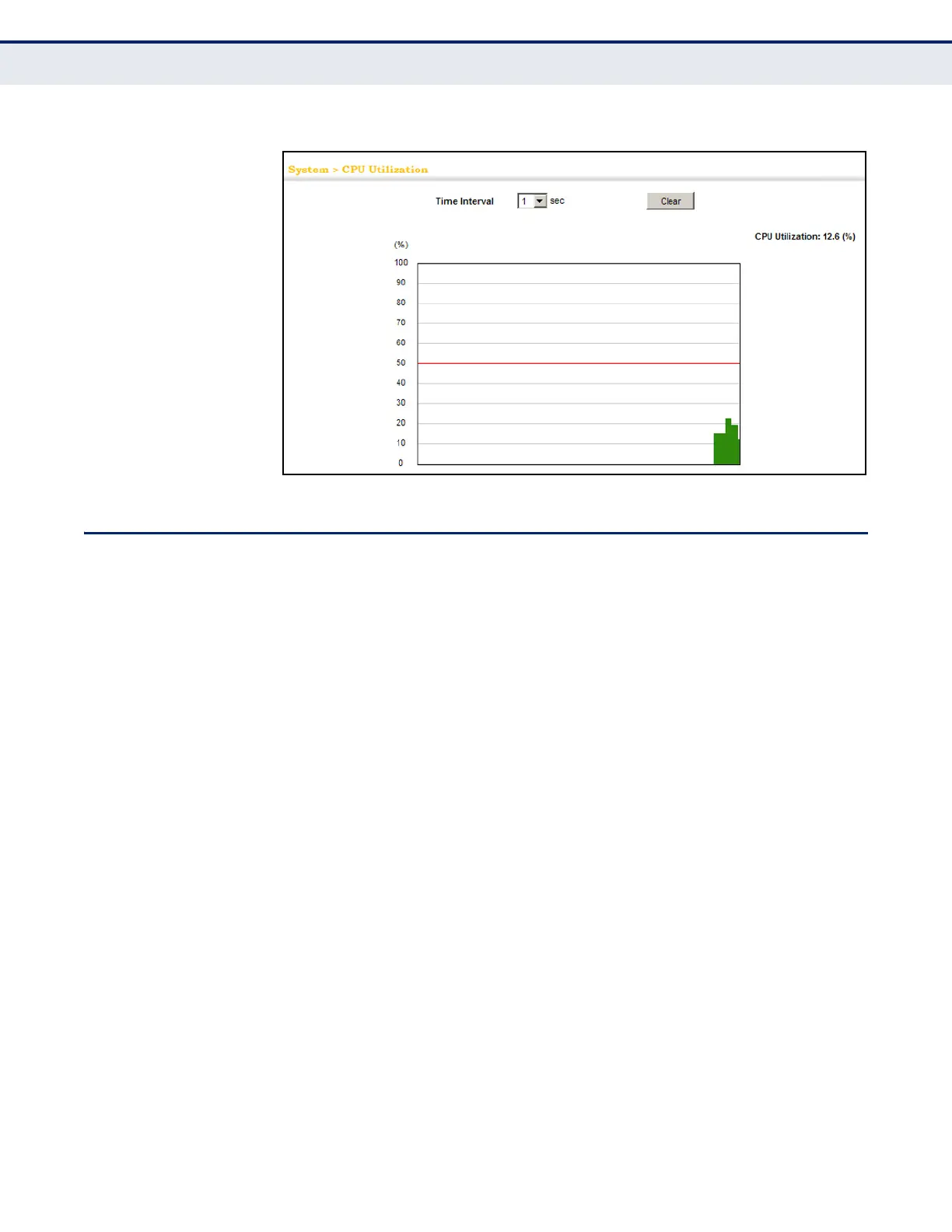

Figure 19: Displaying CPU Utilization

DISPLAYING MEMORY UTILIZATION

Use the System > Memory Status page to display memory utilization

parameters.

CLI REFERENCES

◆ "show memory" on page 527

PARAMETERS

The following parameters are displayed:

◆ Free Size – The amount of memory currently free for use.

◆ Used Size – The amount of memory allocated to active processes.

◆ Total – The total amount of system memory.

Default Chapter5
