C
HAPTER
6
| VLAN Configuration
Configuring IP Subnet VLANs
– 190 –
â—† The IP subnet cannot be a broadcast or multicast IP address.
â—† When MAC-based, IP subnet-based, and protocol-based VLANs are
supported concurrently, priority is applied in this sequence, and then
port-based VLANs last.
PARAMETERS
These parameters are displayed:
◆ IP Address – The IP address for a subnet. Valid IP addresses consist of
four decimal numbers, 0 to 255, separated by periods.
◆ Subnet Mask – This mask identifies the host address bits of the IP
subnet.
◆ VLAN – VLAN to which matching IP subnet traffic is forwarded.
(Range: 1-4093)
◆ Priority – The priority assigned to untagged ingress traffic.
(Range: 0-7, where 7 is the highest priority; Default: 0)
WEB INTERFACE
To map an IP subnet to a VLAN:
1. Click VLAN, IP Subnet.
2. Select Add from the Action list.
3. Enter an address in the IP Address field.
4. Enter a mask in the Subnet Mask field.
5. Enter the identifier in the VLAN field. Note that the specified VLAN need
not already be configured.
6. Enter a value to assign to untagged frames in the Priority field.
7. Click Apply.

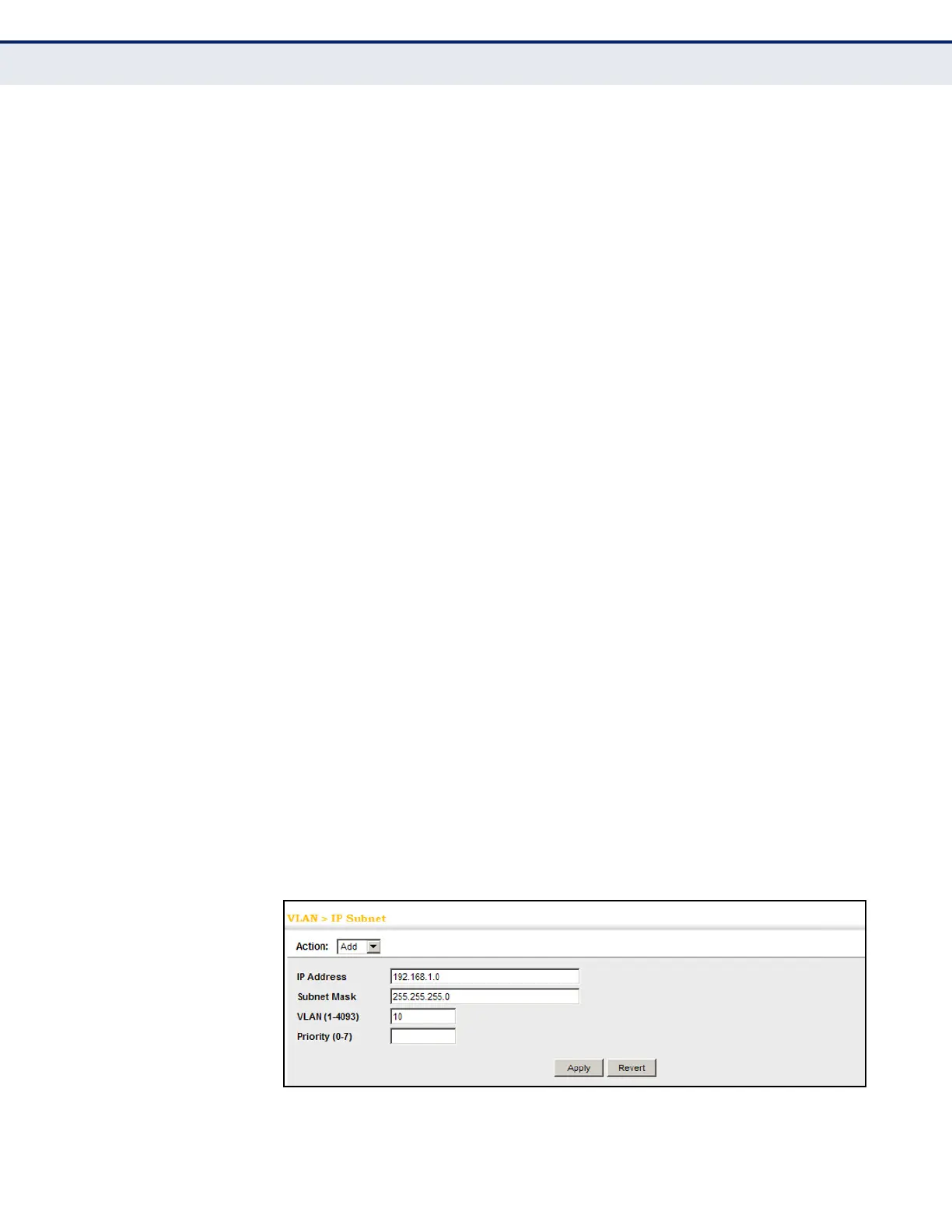

Figure 77: Configuring IP Subnet VLANs
