â—† Any number of CA type and value pairs can be specified for the civic
address location, as long as the total does not exceed 250 characters.
PARAMETERS
These parameters are displayed:
◆ CA-Type – Descriptor of the data civic address value. (Range: 0-255)
◆ CA-Value – Description of a location. (Range: 1-32 characters)
WEB INTERFACE
To specify the physical location of the attached device:
1. Click Administration, LLDP.
2. Select Configure Interface from the Step list.
3. Select Add CA-Type from the Action list.
4. Select an interface from the Port or Trunk list.
5. Specify a CA-Type and CA-Value pair.
6. Click Apply.

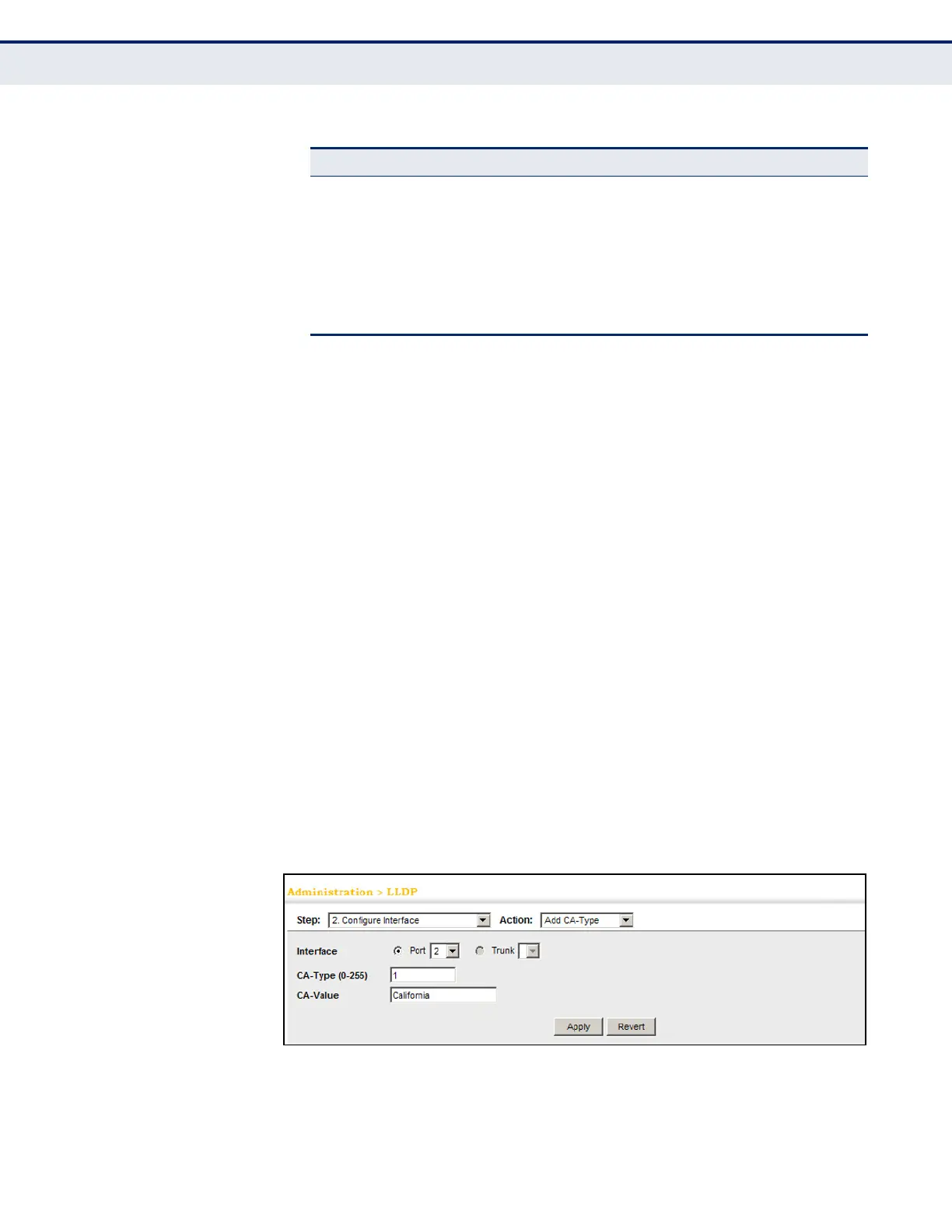

Figure 211: Configuring the Civic Address for an LLDP Interface
19 House number 320
20 House number suffix A
21 Landmark or vanity address Tech Center
26 Unit (apartment, suite) Apt 519
27 Floor 5
28 Room 509B
Table 26: LLDP MED Location CA Types (Continued)
