C
HAPTER
6
| VLAN Configuration
Protocol VLANs
– 187 –
7. Click Apply.

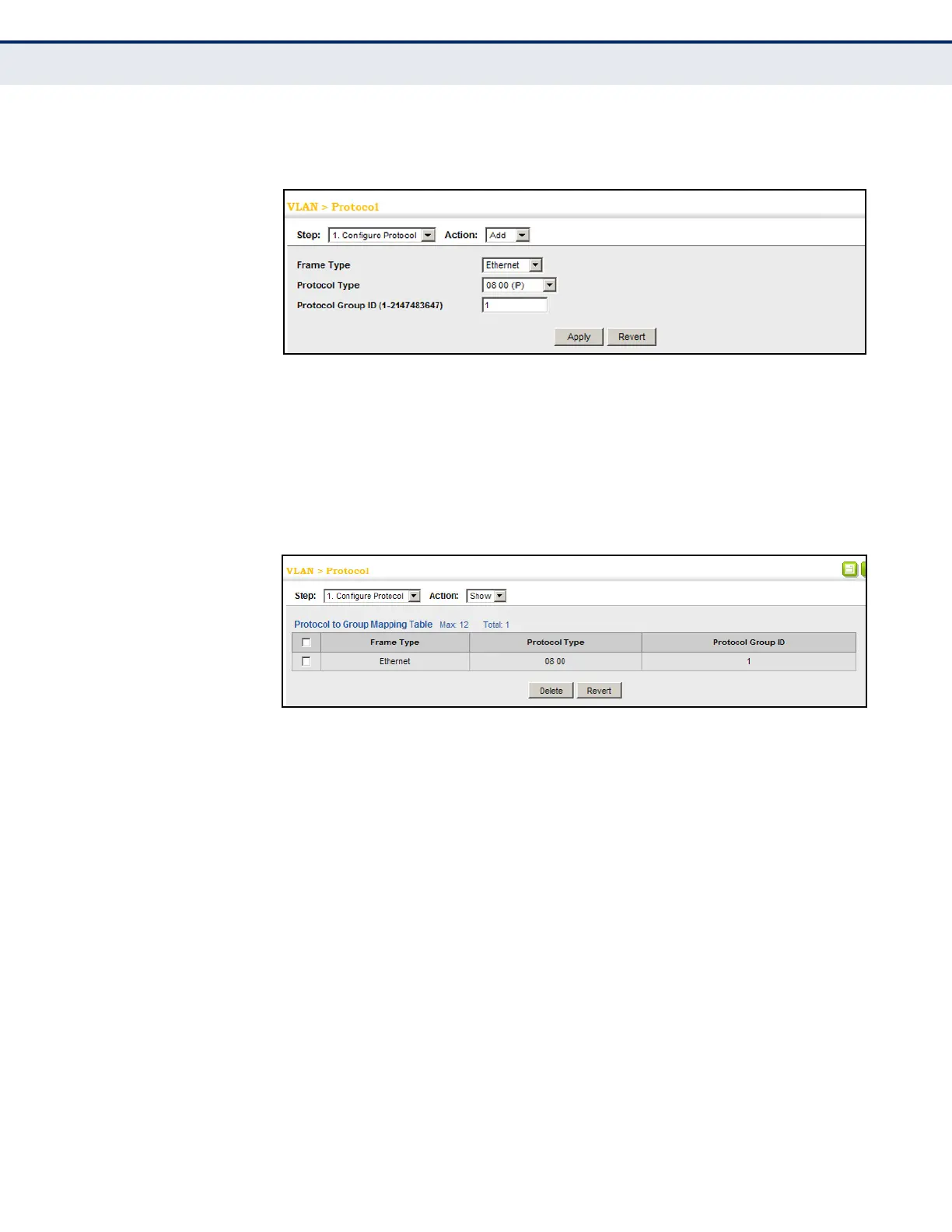

Figure 73: Configuring Protocol VLANs
To configure a protocol group:
1. Click VLAN, Protocol.
2. Select Configure Protocol from the Step list.
3. Select Show from the Action list.
Figure 74: Displaying Protocol VLANs
MAPPING PROTOCOL
GROUPS TO
INTERFACES
Use the VLAN > Protocol (Configure Interface - Add) page to map a
protocol group to a VLAN for each interface that will participate in the
group.
CLI REFERENCES
â—† "protocol-vlan protocol-group (Configuring Interfaces)" on page 843
COMMAND USAGE
â—† When creating a protocol-based VLAN, only assign interfaces using this
configuration screen. If you assign interfaces using any of the other
VLAN menus such as the VLAN Static table (page 171), these interfaces
will admit traffic of any protocol type into the associated VLAN.
â—† When a frame enters a port that has been assigned to a protocol VLAN,
it is processed in the following manner:
â–
If the frame is tagged, it will be processed according to the standard
rules applied to tagged frames.
