| Interface Configuration
Port Configuration
– 137 –
◆ Destination Port – Specifies the destination port
2
to monitor the
traffic mirrored from the source ports. Only one destination port can be
configured on the same switch per session, but a destination port can
be configured on more than one switch for the same session. Also note
that a destination port can still send and receive switched traffic, and
participate in any Layer 2 protocols to which it has been assigned.
◆ Tag – Specifies whether or not the traffic exiting the destination port to
the monitoring device carries the RSPAN VLAN tag.
WEB INTERFACE
To configure a remote mirror session:
1. Click Interface, RSPAN.
2. Set the Switch Role to None, Source, Intermediate, or Destination.
3. Configure the required settings for each switch participating in the
RSPAN VLAN.
4. Click Apply.

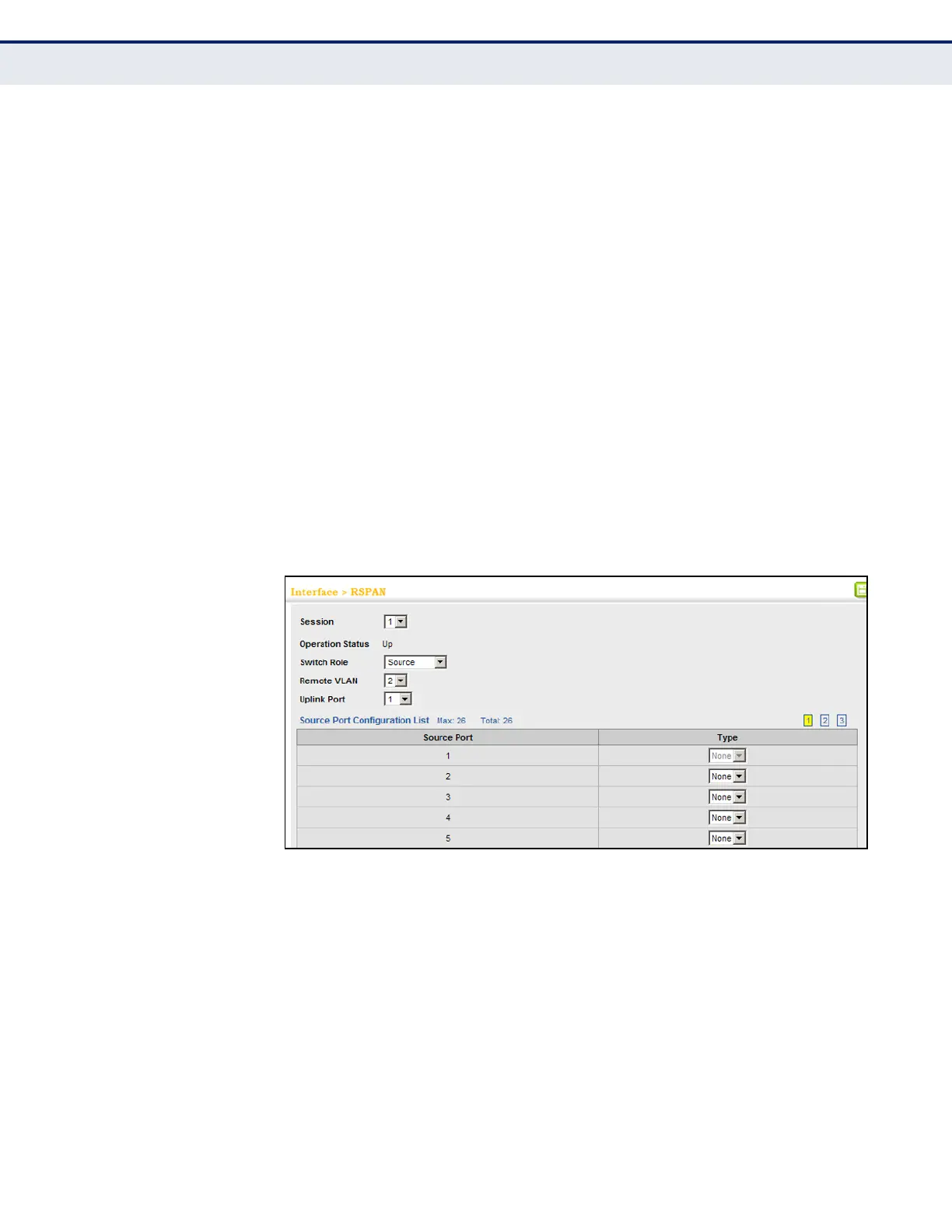

Figure 32: Configuring Remote Port Mirroring (Source)
