C
HAPTER
14
| Basic A
dministration Protocols
Setting A
Time Range
– 437 –

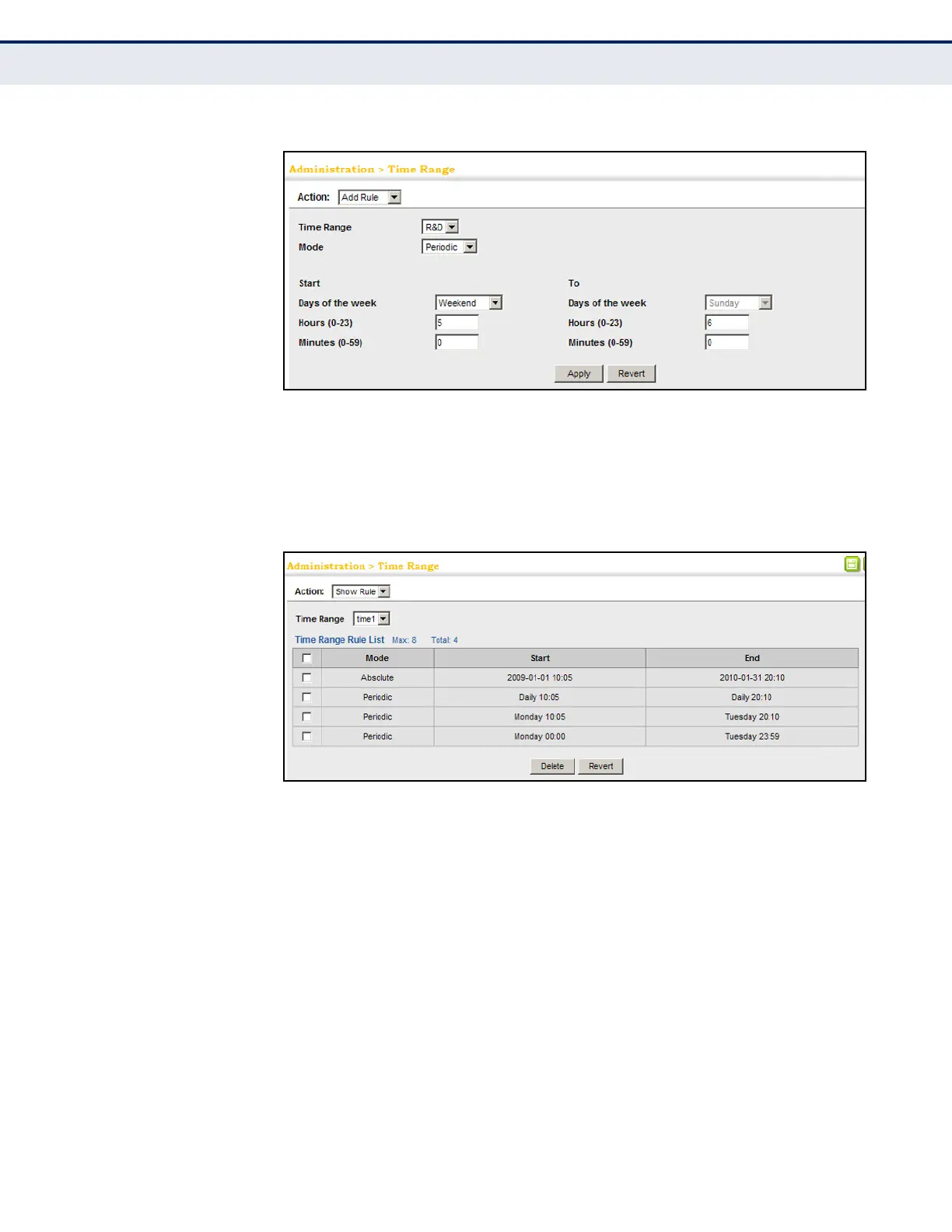

Figure
258: Add a Rule to a Time Ran
ge
T
o show the rules co
nfigured for a time r
ange:
1.
Click Administr
ation, Time
Range
.
2.
Select Show Rule from the Ac
tion list.
Figur
e 259
: Sho
wing th
e Rules
Config
ured f
or a Tim
e Ran
ge
