C
HAPTER
17
| Multicast Filtering
Filtering and Throttling IGMP Groups
– 491 –
To add a range of multicast groups to an IGMP filter profile:
1. Click Multicast, IGMP Snooping, Filter.
2. Select Configure Profile from the Step list.
3. Select Add Multicast Group Range from the Action list.
4. Select the profile to configure, and add a multicast group address or
range of addresses.
5. Click Apply.

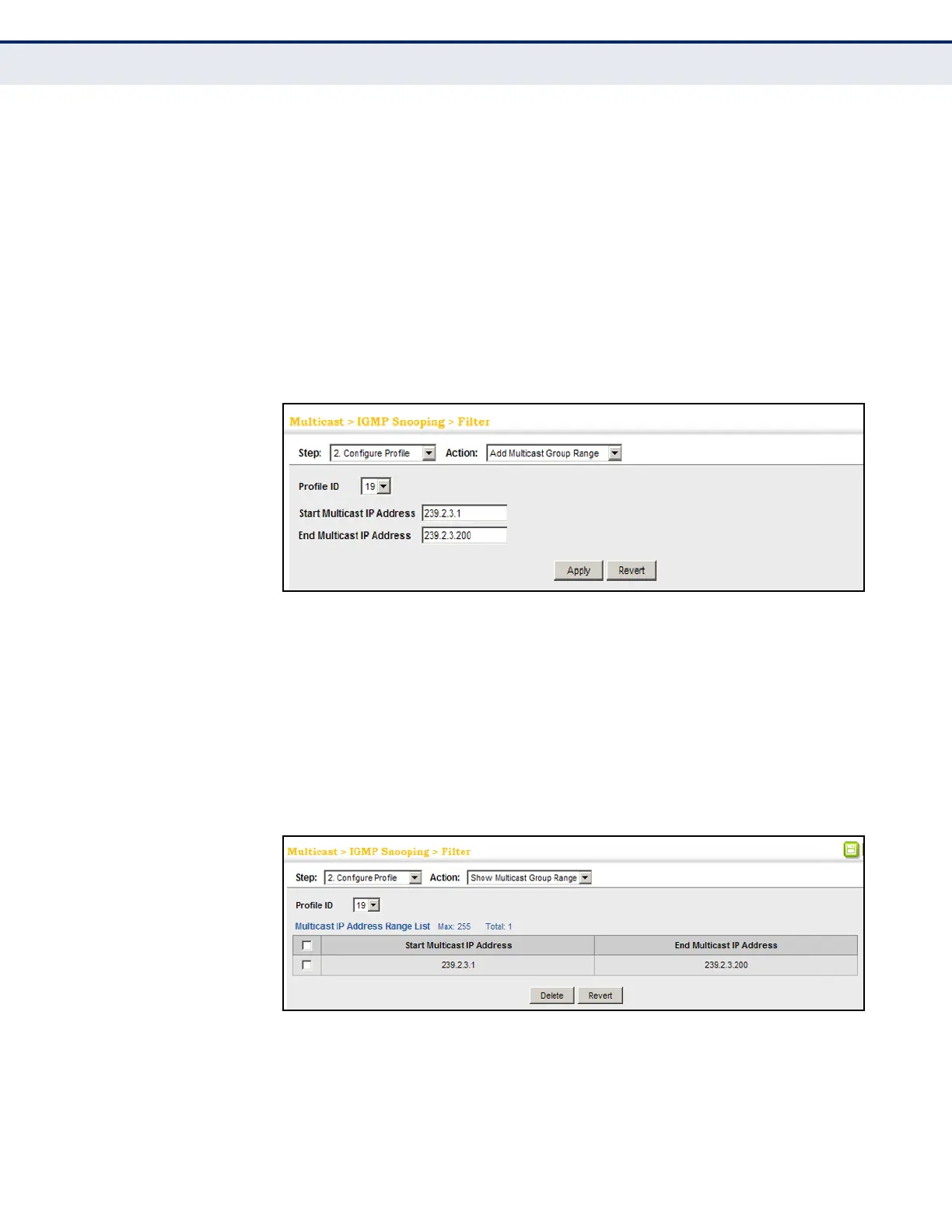

Figure 296: Adding Multicast Groups to an IGMP Filtering Profile
To show the multicast groups configured for an IGMP filter profile:
1. Click Multicast, IGMP Snooping, Filter.
2. Select Configure Profile from the Step list.
3. Select Show Multicast Group Range from the Action list.
4. Select the profile for which to display this information.
Figure 297: Showing the Groups Assigned to an IGMP Filtering Profile
