C
HAPTER
6
| VLAN Configuration
IEEE 802.1Q VLANs
– 174 –
N
OTE
:
The PVID, acceptable frame type, and ingress filtering parameters
for each interface within the specified range must be configured on either
the Modify VLAN and Member Ports or Edit Member by Interface page.
WEB INTERFACE
To configure static members by the VLAN index:
1. Click VLAN, Static.
2. Select Modify VLAN and Member Ports from the Action list.
3. Set the Interface type to display as Port or Trunk.
4. Modify the settings for any interface as required.
5. Click Apply.

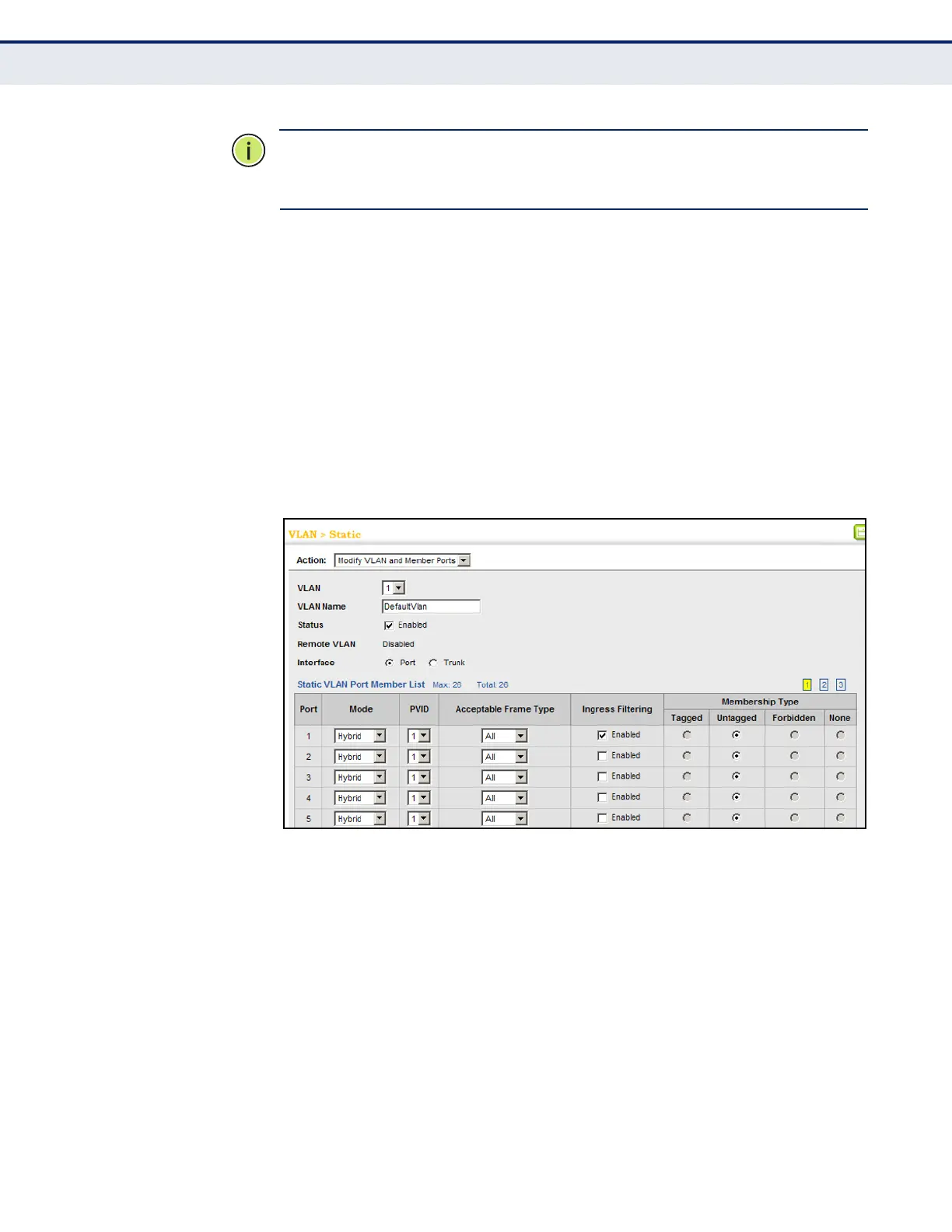

Figure 63: Configuring Static Members by VLAN Index
To configure static members by interface:
1. Click VLAN, Static.
2. Select Edit Member by Interface from the Action list.
3. Select a port or trunk configure.
4. Modify the settings for any interface as required.
5. Click Apply.
