HAPTER

| Spanning Tree Algorithm

Configuring Global Settings for STA

– 211 –

4. Modify any of the required attributes. Note that the parameters

displayed for the spanning tree types (STP, RSTP, MSTP) varies as

described in the preceding section.

5. Click Apply

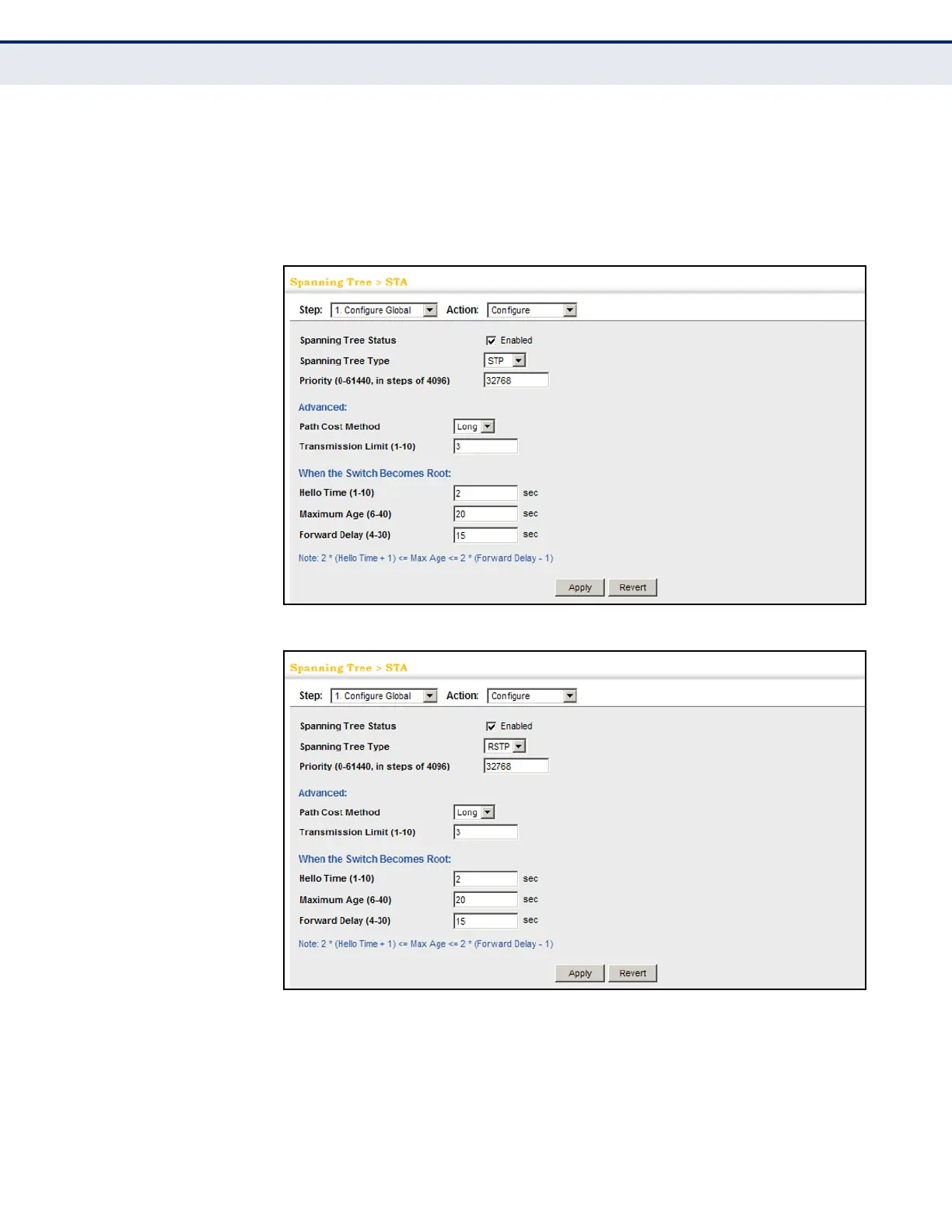

Figure 94: Configuring Global Settings for STA (STP)

Figure 95: Configuring Global Settings for STA (RSTP)
