| VLAN Configuration
IEEE 802.1Q VLANs
– 171 –
◆ Status – Enables or disables the specified VLAN.
◆ Remote VLAN – Reserves this VLAN for RSPAN (see "Configuring
Remote Port Mirroring" on page 134).
WEB INTERFACE
To create VLAN groups:
1. Click VLAN, Static.
2. Select Configure VLAN from the Action list.
3. Enter a VLAN ID or range of IDs.
4. Mark Enabled to configure the VLAN as operational.
5. Mark Remote VLAN to use it for RSPAN.
6. Click Add.

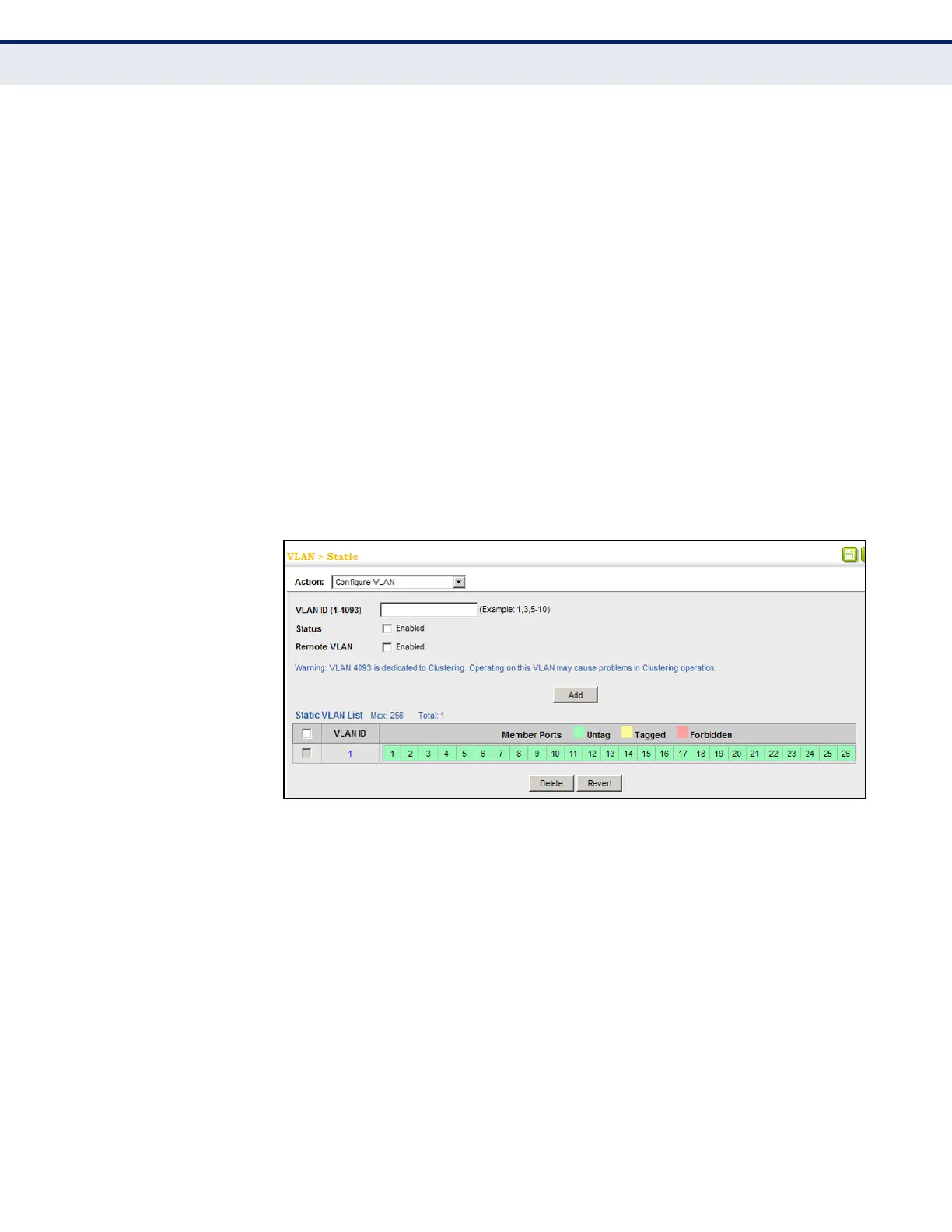

Figure 62: Creating Static VLANs
ADDING STATIC
MEMBERS TO VLANS
Use the VLAN > Static (Modify VLAN and Member Ports, Edit Member by
Interface, or Edit Member by Interface Range) pages to configure port
members for the selected VLAN index, interface, or a range of interfaces.
Use the menus for editing port members to configure the VLAN behavior
for specific interfaces, including the mode of operation (Hybrid or 1Q
Trunk), the default VLAN identifier (PVID), accepted frame types, and
ingress filtering. Assign ports as tagged if they are connected to 802.1Q
VLAN compliant devices, or untagged they are not connected to any VLAN-
aware devices. Or configure a port as forbidden to prevent the switch from
automatically adding it to a VLAN via the GVRP protocol.
CLI REFERENCES
â—† "Configuring VLAN Interfaces" on page 829
â—† "Displaying VLAN Information" on page 835
