C
HAPTER
14
| Basic Administration Protocols
Link Layer Discovery Protocol
– 384 –
To show the physical location of the attached device:
1. Click Administration, LLDP.
2. Select Configure Interface from the Step list.
3. Select Show CA-Type from the Action list.
4. Select an interface from the Port or Trunk list.

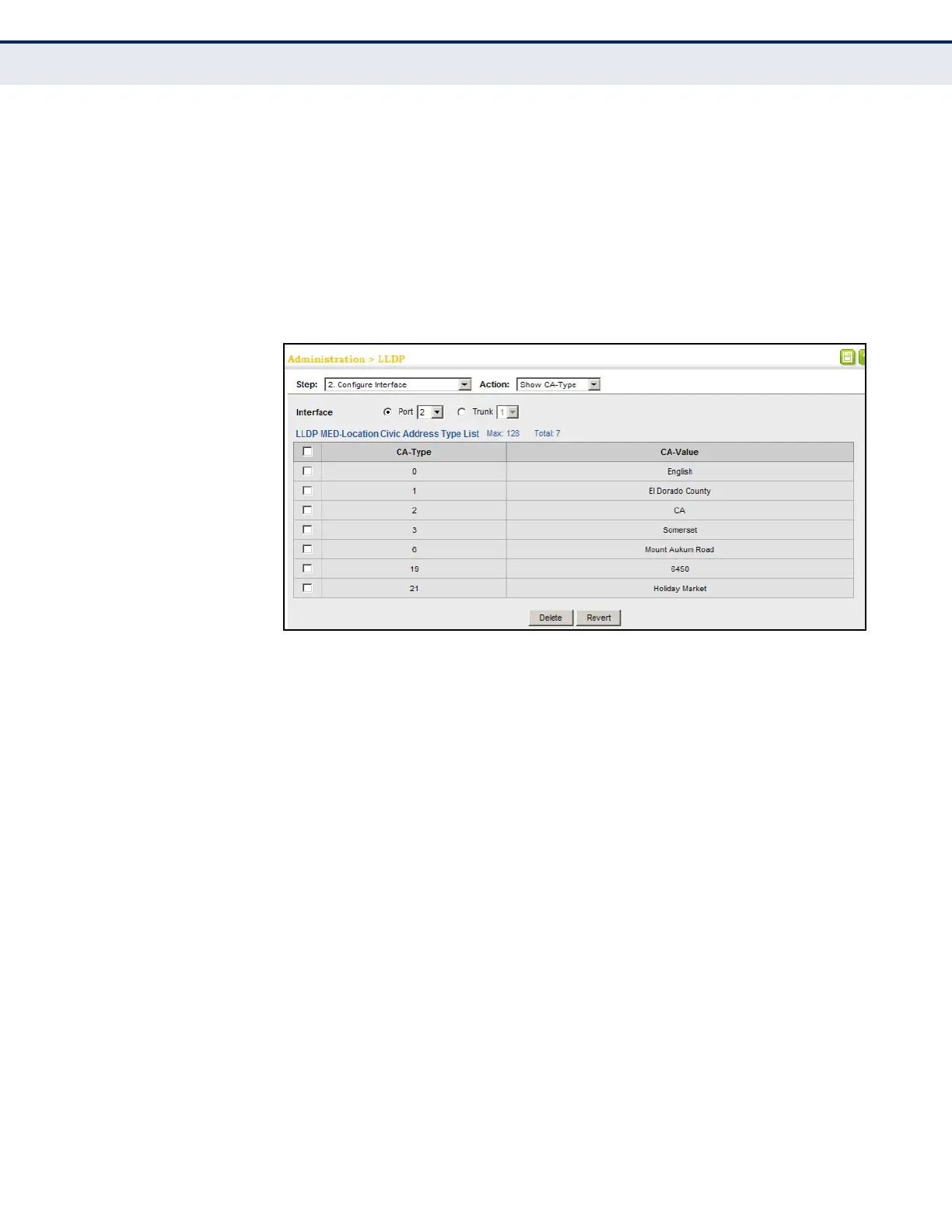

Figure 212: Showing the Civic Address for an LLDP Interface
DISPLAYING LLDP
LOCAL DEVICE
INFORMATION
Use the Administration > LLDP (Show Local Device Information) page to
display information about the switch, such as its MAC address, chassis ID,
management IP address, and port information.
CLI REFERENCES
â—† "show lldp info local-device" on page 940
PARAMETERS
These parameters are displayed:
Global Settings
◆ Chassis Type – Identifies the chassis containing the IEEE 802 LAN
entity associated with the transmitting LLDP agent. There are several
ways in which a chassis may be identified and a chassis ID subtype is
used to indicate the type of component being referenced by the chassis
ID field.
