C
HAPTER
5
| Interface Configuration
Port Configuration
– 132 –
WEB INTERFACE
To display port connection parameters:
1. Click Interface, Port, General.
2. Select Show Information from the Action List.

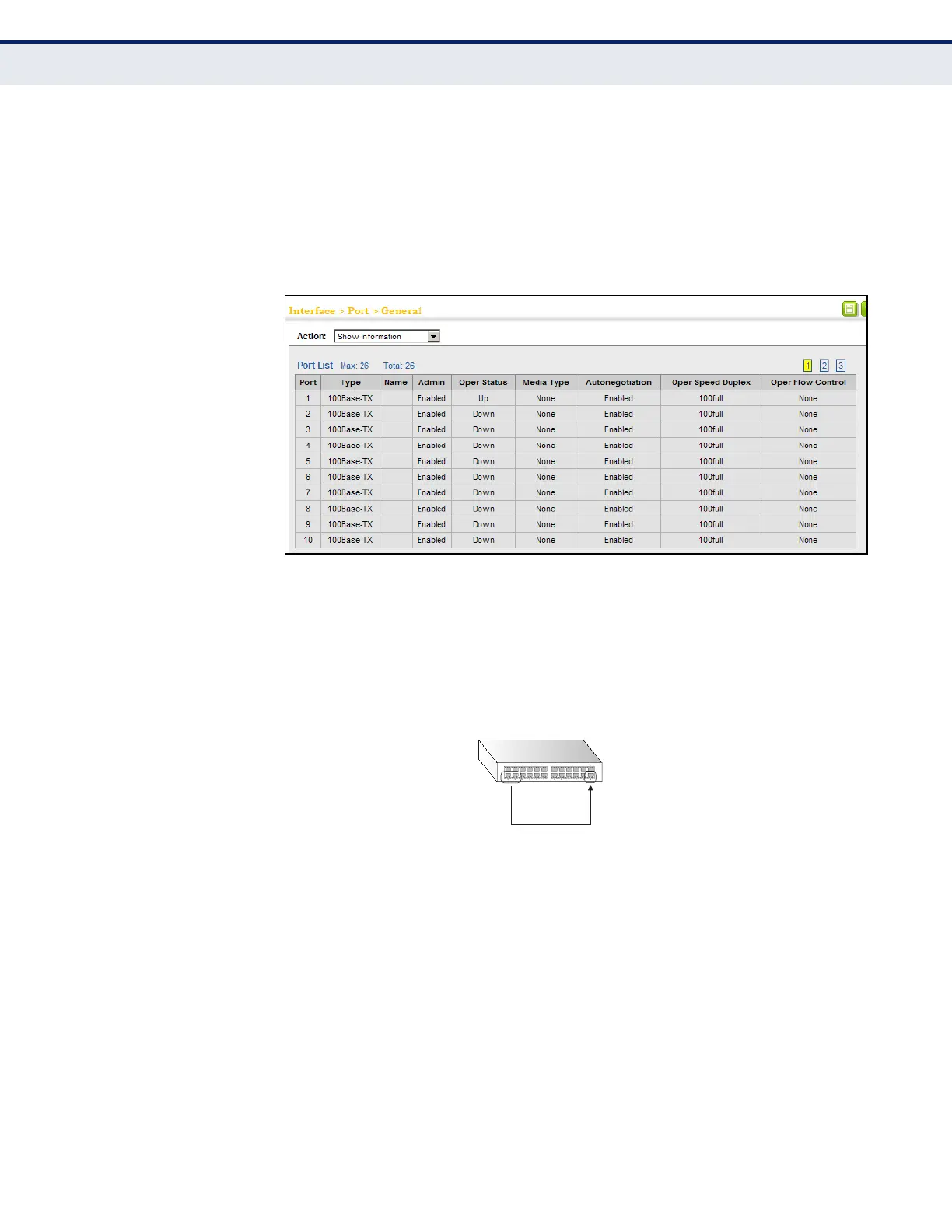

Figure 27: Displaying Port Information
CONFIGURING LOCAL
PORT MIRRORING
Use the Interface > Port > Mirror page to mirror traffic from any source
port to a target port for real-time analysis. You can then attach a logic
analyzer or RMON probe to the target port and study the traffic crossing
the source port in a completely unobtrusive manner.
Figure 28: Configuring Local Port Mirroring
CLI REFERENCES
â—† "Local Port Mirroring Commands" on page 761
COMMAND USAGE
â—† Traffic can be mirrored from one or more source ports to a destination
port on the same switch (local port mirroring as described in this
section), or from one or more source ports on remote switches to a
destination port on this switch (remote port mirroring as described in
"Configuring Remote Port Mirroring" on page 134).
â—† Monitor port speed should match or exceed source port speed,
otherwise traffic may be dropped from the monitor port.
â—† When mirroring VLAN traffic (see "Configuring VLAN Mirroring" on
page 193) or packets based on a source MAC address (see "Configuring
Source
port(s)
Single
target
port
